5.6mm Wire Galvanized Welded Mesh Panel for Coal Mine Roof Support
5.6mm Wire Hot Dipped Galvanized Welded Mesh Panel for Coal Mine Roof Support
Coal mine supporting reinforcing mesh is formed with welded reinforced steel wires/bars.Because of high tensile strength, coal mine supporting mesh is not easy to deform, therefore enhancing the safety factor of coal mines. In addition, the property of anti-corrosion and the strong structure extend the life span.
Material: iron wire and low carbon steel wire.
Surface treatment: hot dipped galvanized, PVC coated.
Wire diameter: 5-10 mm.
Mesh size:5 cm, 6 cm, 7 cm and so on. Special sizes can be customized.
Panel size: 1 m ×2 m. Special sizes can be customized.

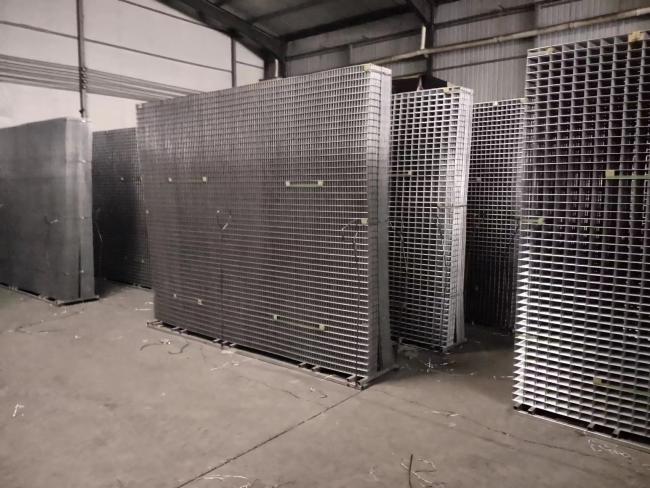

Packing: Usually several ten bundle in a pallet or no package in bulk.
| Mesh Panel Common Specification | |||
| Mesh | Wire Diameter | ||
| Expressed in Inches | Millimeters | Diameter | Millimeters |
| 1" × 1" | 25 mm × 25 mm | 11 G - 14 G | 2 mm - 3 mm |
| 2" × 1" | 50 mm × 25 mm | 8 G - 14 G | 2 mm - 4 mm |
| 2" × 2" | 50 mm × 50 mm | 8 G - 14 G | 2 mm - 4 mm |
| 3" × 2" | 75 mm × 50 mm | 6 G - 14 G | 2 mm - 5 mm |
| 3" × 3" | 75 mm × 75 mm | 6 G - 14 G | 2 mm - 5 mm |
| 4" × 2" | 100 mm × 50 mm | 4 G - 14 G | 2 mm - 6 mm |
| 4" × 4" | 100 mm × 100 mm | 4 G - 14 G | 2 mm - 6 mm |
| 5" × 5" | 125 mm × 125 mm | 4 G - 14 G | 2 mm - 6 mm |
| 6" × 6" | 150 mm × 150 mm | 4 G - 14 G | 2 mm - 6 mm |
| Max Width :2400mm , Max Length : 6000 mm | |||
| Note: Special specifications can be customized. | |||
Products Feature
Coal mine supporting reinforcing mesh is widely used for the security protection of coal mine roadway, tunnel and other facilities.
It can be installed on the top and both sides of the coal mine roadway, it also can be used in bridges and buildings. It is mainly used for the security protection of coal mine roadway, tunnels and other facilities.
High tensile strength,Smooth surface,Anti-erosion, anti-aging, anti-sunburn,Easy installation.
Used for the loose strata to avoid falling rocks,Applicable to concrete applications,The safety factor has reached the national standard.
