1x1 Hot Dipped Galvanized Welded Wire Mesh Pvc Coated Steel Matting
Price:
Negotiable
MOQ:
200pcs
Delivery Time:
15-20days
Brand:
qijie
Product Description
Product Description
Wire decking is used as support of material or products that are placed on certain pallet rack. It allows the visibility and air flow of racking system , and it's easy installation by just put the wire deck on rack without no tools required.

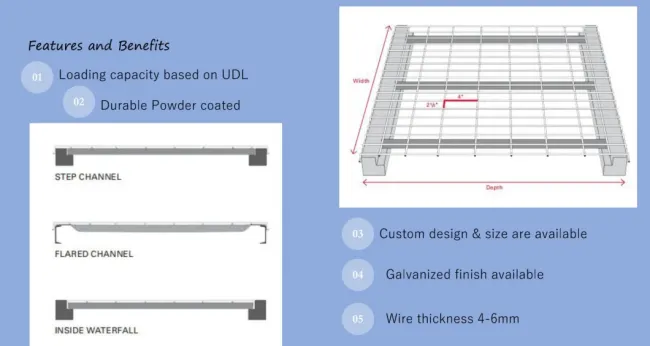

Wire deck specification:
![PVC Coated Steel Matting Galvanized Welded Wire Mesh]()
![PVC Coated Steel Matting Galvanized Welded Wire Mesh]()

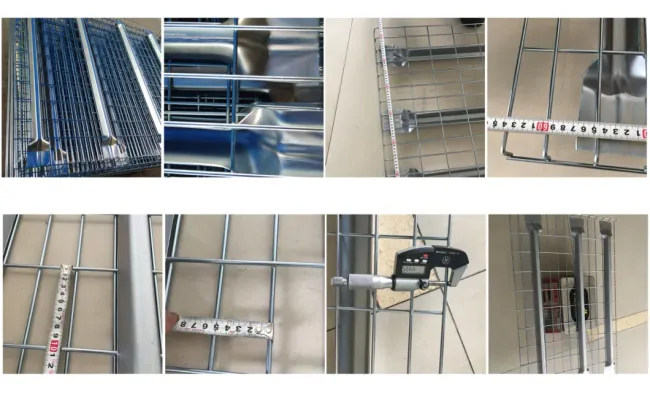

Quality Inspection:
![PVC Coated Steel Matting Galvanized Welded Wire Mesh]()

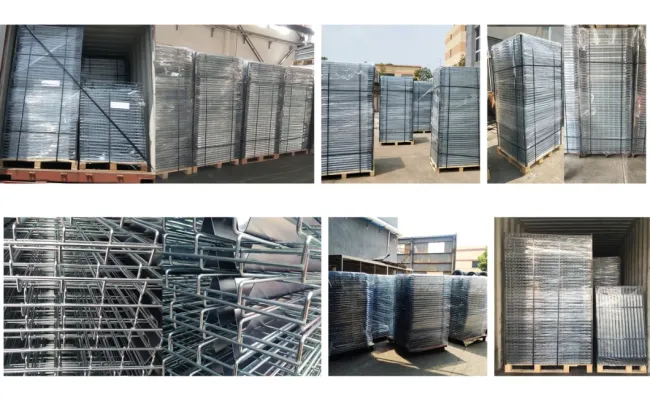

Loading & Packing:![PVC Coated Steel Matting Galvanized Welded Wire Mesh]()

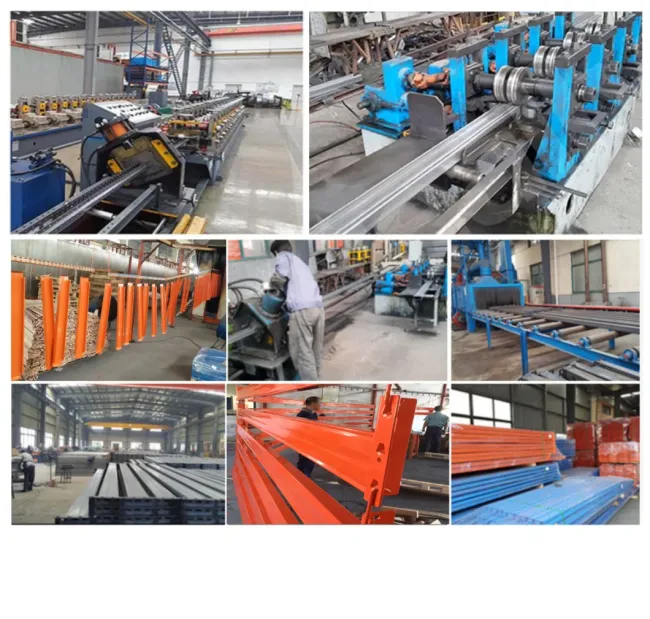

Factory & Workshop:
![PVC Coated Steel Matting Galvanized Welded Wire Mesh]()
Wire deck specification:
Wire thickness 3.0-5.0mm
Grid :25x100mm,50x100mm
Channel thickness : 1.5-2.0mm
Loading capacity : up to 1500kg per piece
Surface finishing : hot dip galvanized, zinc coat and powder coated
Features:
Features:
Easy installation
Visibility
Strong and light weight
Cheap compared with wood panel & steel panel
| Euro Sizes | ||
| A. Loading capacity 1000kg | B. Loading capacity 800kg | C. Loading capacity 300kg |
| Mesh 50×150 mm | Mesh 50×100mm | Mesh 50×100mm |
| Dim (D×W) (mm) | Dim (D×W) (mm) | Dim (D×W) (mm) |
| 1000×1340 | 1000×880 | 600×880 |
| 1050×1340 | 1050×880 | 1000×880 |
| 800×1340 | 1100×880 | 1050×880 |
| 1200×1340 | 1000×1090 | 1100×880 |
| American Sizes (mesh 2.5"x4.5" , Gauge 4/5.3mm) | ||
| Standard U-channel | Flared channel | |
| Dim (D×W) (mm) | Dim (D×W) (mm) | |
| 24"×46" | 42"×46" | 24"×46" |
| 30"×46" | 42"×52" | 36"×46" |
| 36"×34" | 42"×58" | 36"×52" |
| 36"×46" | 48"×34" | 42"×46" |
| 36"×52" | 48"×46" | 42"×52" |
| 36"×58" | 48"×52" | 44"×46" |
| 42"×34" | 48"×58" | 48"×46" |
Quality Inspection:
Loading & Packing:
Factory & Workshop:
