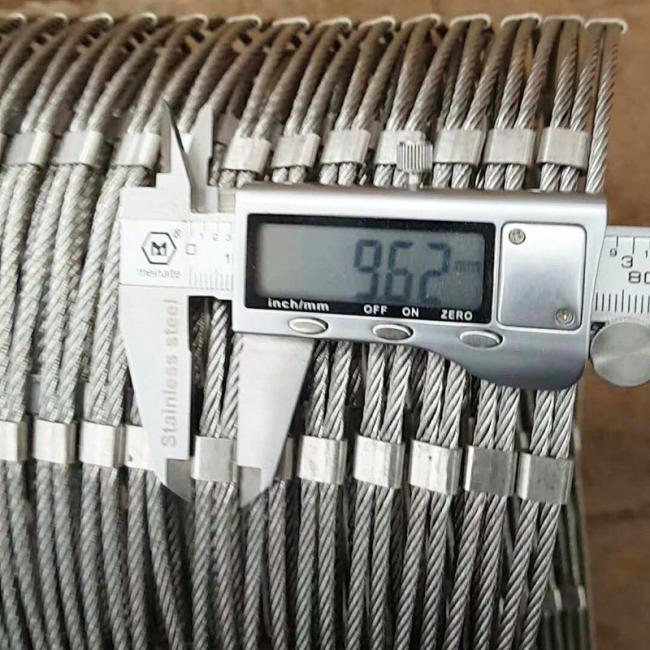

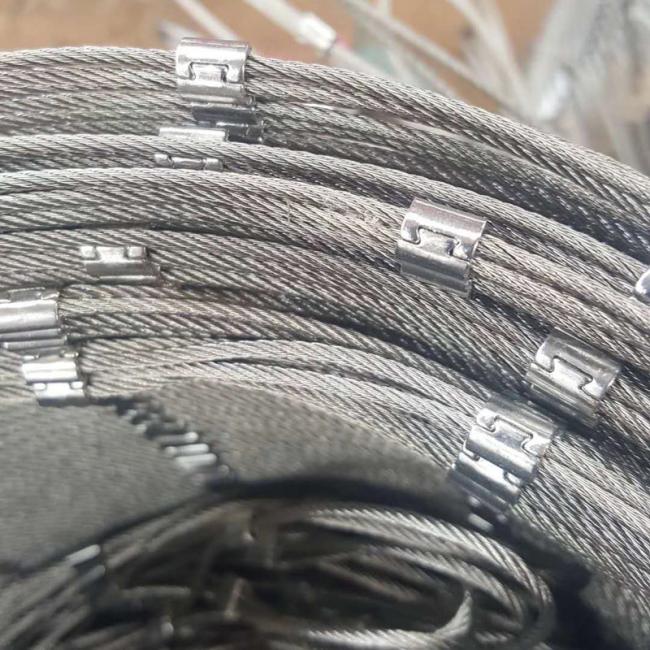

1.5mm Thickness SS 316 Wire Rope Fence Stainless Steel Rope Mesh For Zoo
1.5mm thickness SS 316 wire rope fence stainless steel rope mesh for zoo
1.5mm thickness SS 316 wire rope fence stainless steel rope mesh for zoo
The stainless steel rope mesh is a mesh structure object made of high quality 304/304L/316/316L stainless steel wire rope.
Common specifications: mesh 3x3, 4x4, 5x5, 6x6, 7x7, 8x8, etc. But there is no specific specification because it can weave mesh of any size. This has been loved by designers and users.
We can provide reference according to customer requirements. Its overall mesh width and length can be made in any size.
Commonly used wire rope structure: 7x7 and 7x19 high quality stainless steel wire rope.
Common rope diameter: 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0 Common materials are: 304, 304L, 316, 316L stainless steel wire rope.
| Construction | Rope Dia | Mesh opening | Breaking load | ||
| inch | mm | inch | mm | KN | |
| 7x19 | 1/8 | 3.2 | 4.7x4.7 | 120x120 | 7.38 |
| 7x19 | 1/8 | 3.2 | 4x4 | 102x102 | 7.38 |
| 7x19 | 1/8 | 3.2 | 3.6x3.6 | 90x90 | 7.38 |
| 7x19 | 1/8 | 3.2 | 3x3 | 76x76 | 7.38 |
| 7x19 | 1/8 | 3.2 | 2x2 | 51x51 | 7.38 |
| 7x7 | 3/32 | 2.4 | 4x4 | 102x102 | 4.18 |
| 7x7 | 3/32 | 2.4 | 3.6x3.6 | 90x90 | 4.18 |
| 7x7 | 3/32 | 2.4 | 3x3 | 76x76 | 4.18 |
| 7x7 | 3/32 | 2.4 | 2.4x2.4 | 60x60 | 4.18 |
| 7x7 | 3/32 | 2.4 | 2x2 | 51x51 | 4.18 |
| 7x7 | 5/64 | 2 | 3x3 | 76x76 | 3.17 |
| 7x7 | 5/64 | 2 | 2.4x2.4 | 60x60 | 3.17 |
| 7x7 | 5/64 | 2 | 2x2 | 51x51 | 3.17 |
| 7x7 | 5/64 | 2 | 1.5x1.5 | 38x38 | 3.17 |
| 7x7 | 1/16 | 1.6 | 3x3 | 76x76 | 2.17 |
| 7x7 | 1/16 | 1.6 | 2x2 | 51x51 | 2.17 |
| 7x7 | 1/16 | 1.6 | 1.5x1.5 | 38x38 | 2.17 |
| 7x7 | 1/16 | 1.6 | 1.2x1.2 | 30x30 | 2.17 |
| 7x7 | 1/16 | 1.6 | 1x1 | 25.4x25.4 | 2.17 |
| 7x7 | 3/64 | 1.2 | 2x2 | 51x51 | 1.22 |
| 7x7 | 3/64 | 1.2 | 1.5x1.5 | 38x38 | 1.22 |
Why choose our Screen's SS 316 wire rope fence stainless steel rope mesh?
1,We are in a stainless steel wire production base and the cost of obtaining raw materials is relatively low.
2,Beijing PFM started in 1987,have rich experience in production and export
3.light weight, high strength, not easy to corrode.
4.good softness, fatigue resistance, impact resistance, large breaking force and strong overall structure.
5.The service life is more than 30 years, close to nature, green and environmentally friendly;
6.The perspective is good, the appearance is luxurious, the style is novel, and it is a big landscape in itself.
SS 316 wire rope fence stainless steel rope mesh details
>Zoos, safari parks, marine parks and other similar environments.
>Animal cages, bird nets, animal fences and garden decorations and construction and vation.

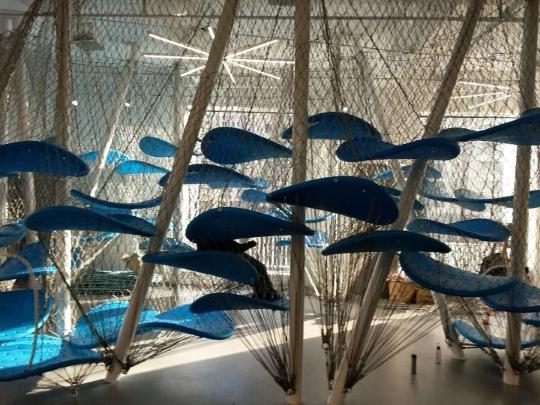

>Stainless steel rope mesh is also suitable for playgrounds, gymnasiums, acrobatics, home decoration, architectural decoration and many other fields.

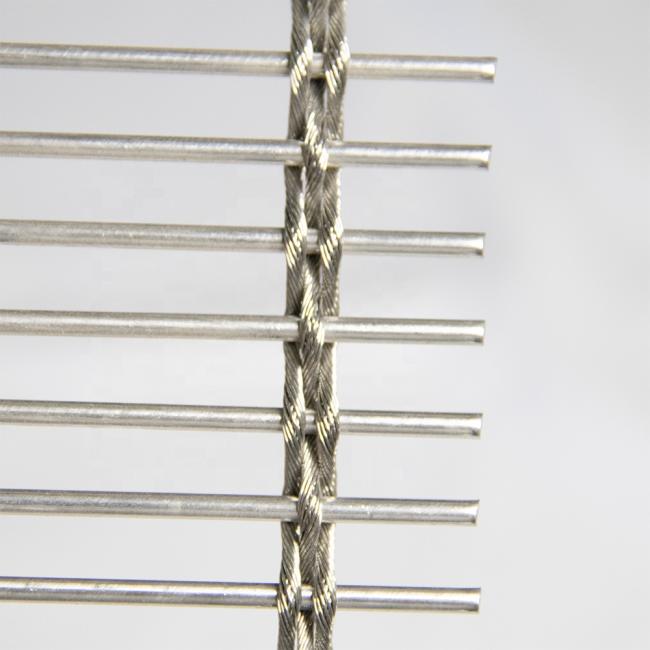

40x40mm SS rope mesh PVC coated welded wire mesh SS cable decorate mesh
