Flexible Stainless Steel Wire Rope Mesh For Balustrade Or Railing 3.0 Mm
Flexible Stainless Steel Wire Rope Mesh Cable Netting For Balustrade Or Railing 3.0 Mm Wire

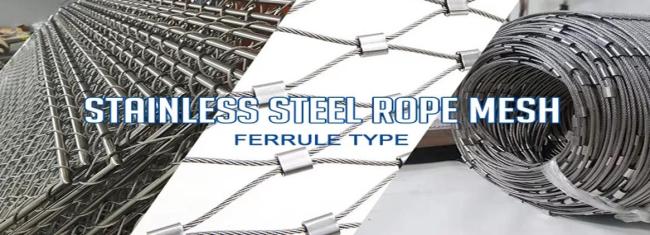

Stainless steel ferrule mesh, the stainless steel grade includes type304, type304L, type316, type316L.
The structures of the stainless steel wire cable mesh have two kinds: 7 x 7 and 7 x 19.
The standard stainless steel wire cable diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64",
the standard mesh opening size includes .1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"

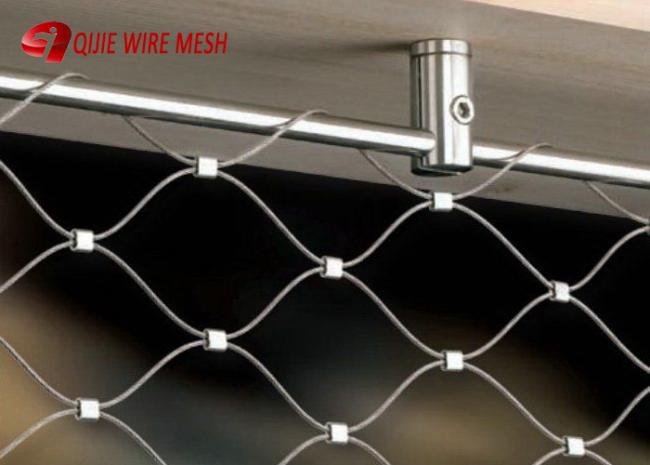

Stainless steel woven rope mesh
Stainless steel woven rope net is hand-woven with stainless steel wire. It has unique excellence. Corrosion resistance, never rust, long service life; flexible and elastic; lightweight, excellent perspective; indestructible and stable; beautiful appearance. Due to the special wire rope structure and unique weaving process, the bearing capacity and breaking force of the stainless steel wire mesh are 7 times that of the wire mesh with the same diameter. Therefore, under the same bearing capacity, the stainless steel rope net can show a light and breathable effect.
Specification:
The structures of the stainless steel wire cable mesh have two kinds: 7 x 7 and 7 x 19.
The standard stainless steel wire cable diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64",
the standard mesh opening size includes .1"x 1", 1-1/2"x1-1/2", 2"x2", 3"x3", and 4"x4"
Specification of zoo mesh:
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Recommended Balustrade Infill Cable Wire Mesh:
| Material | Cable Diameter | Hole Size | Normal Break |
| SS304/316/316L | 1/16" (1.6MM) | 2.5" x 2.5" | 480 LBS |
| SS304/316/316L | 1/16" (1.6MM) | 2" x 2" | 480 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2.5" x 2.5" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 2" x 2" | 676 LBS |
| SS304/316/316L | 5/64" (2.0MM) | 3" x 3" | 676 LBS |
Feature of rope ferrule mesh
1. Follow world pouplar mesh design.
2. By super quality 316 stainless steel wire rope.better corrosion resistant.
3. Diy mounting design.
Advantage:
The flexible stainless steel wire cable mesh's rhombus mesh has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.
Because of the material is virtually indestructible stainless steel, it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customized to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.

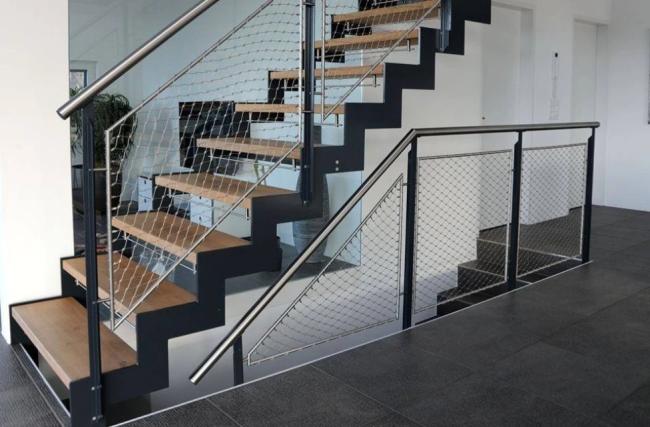

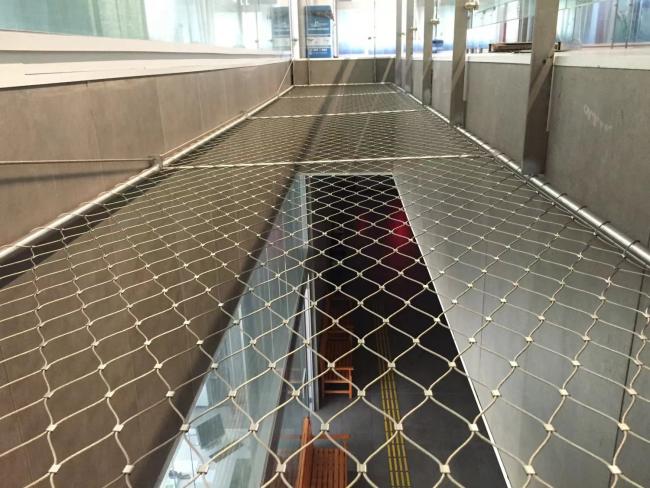

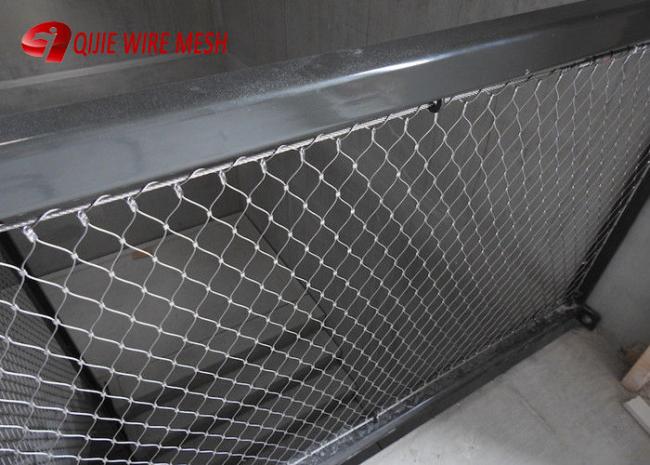

Application:
Packing and Delivery:
Packing: Paper carton, wooden case
Delivery: by FedEx, DHL, UPS, TNT EMS, by air, Door-to Door or by sea.
