Indoor Prefabricated Portable Horse Stall Kits , Steel Pipe European Stall Fronts
Indoor Prefabricated Portable Horses Equine Stabling Stable Barn Kits

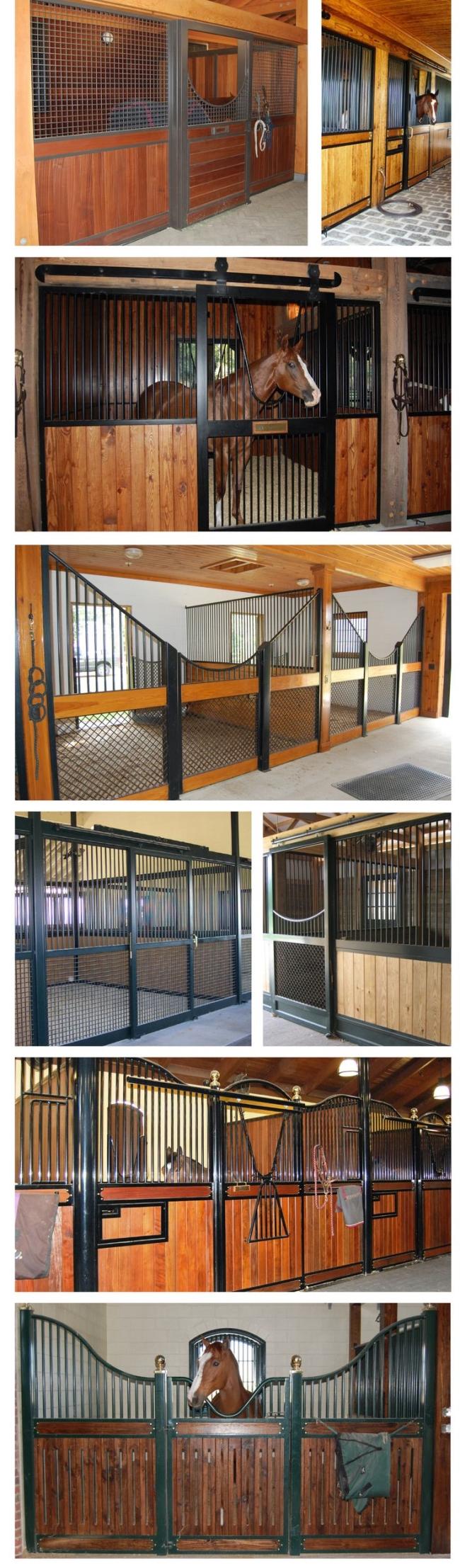

Our portable horse stall is ideal for open barn/shed applications, the stall sides and fronts can be ordered separately or as a complete unit. These stalls are fully self-contained, assemble quickly and can be disassembled and moved in the future should your needs change.
No posts or wood framing is required in your barn.
| Products name | Horse stall |
| Panel size | 2.75m x 2.1m (Customized size are accepted) |
| Structure | Top part with hollow bars, lower parts with infillings |
|
Frame material |
Steel pipe (32*25*2mm RHS, 50*25*3.5mm RHS, φ19*1.5mm round pipe) |
| Surface finish | Hot Dip Galvanized or powder coated |
| Infilling Material | fabric, PP plate, fumigation wooden plate, bamboo plate |
| Color | Customized color |
| Door | One swivel door in front |
| Door Mode | Hinge |
| Lock | One spring lock |
| Packing | Steel pallet |
| Product Specifications | |||
| Place of Origin | Anping ,China (Mainland) | Brand Name | JINGHUA |
| Open Style | Sliding | Panel Type | Horse Stall Door |
| Construction | Solid Wood | Wood Species | Pine oak or Customized |
| Warranty | 10-year limited | Surface Treatment | Water Based Painting |
| Hardware | American Design | Color | Custom-made |
| Size | Custom-made | Application | Residential/Commercial |
| Slab or Pre-hung | Slab | Door Bottom Seals | Optional |
Front Sliding Gate With Water Feeder -1 PC
Size 4000mm (L) x 2200mm (H) ; 13Ft x 7FT
Material 50x25x2mm ;25x2mm round pipe
Water Feeder Rotating Stents – 1PC
Stainless Steel Water Feeder – 1PC
Bamboo plate – 38 PCS
Frame finished by Hot dip Galvanized
Weight 151 kgs
Loading Info 94 PCS /40HQ
Side Panel -3 PC
Size 4000mm (L) x 2200mm (H) ; 13Ft x 7FT
Material 50x25x2mm ;25x2mm round pipe
Bamboo plate – 32 PCS
Frame finished by Hot dip Galvanized
Weight 108 kgs
Loading Info 90 PCS /40HQ
Stable production process
Steel tubes cutting - welding panels - polishing the welding points - anti rust paiting - silver spray painting - fix HDPE plate to stable panel and gate
