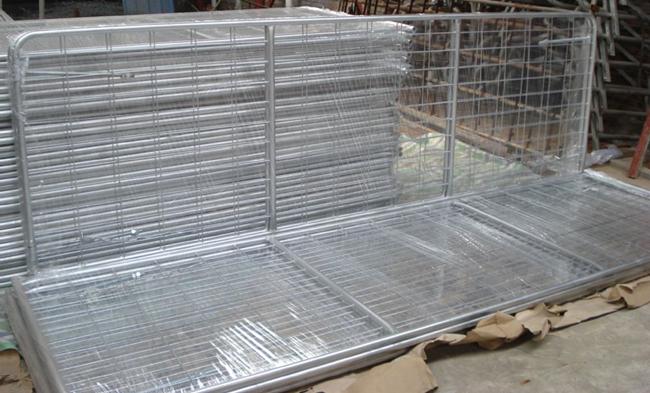

Standard Weld Mesh Steel Farm Gates All Low Carbon Uniform 25nb Pipe
Standard Weld Mesh Rural "N" Stay Farm Gates All Pipe In Uniform 25nb
We have professional engineers to develop new designs, and design according to customer's requirement.
Whites Rural "N" Stay Farm Gates offer increased strength with a diagonal support brace running from the bottom to top corner.
Consistently high-quality gates manufactured from high quality galvanised pipe. The pipe is galvanised on the inside as well as the outside to provide maximum protection and a long working life.
Production Flow
1. Style | N stay/brace farm gate |
2. Material | Hot dipped galvanized steel pipe and wire |
3. Manufacturing process: | (1)Wire mesh panel welding and corner wire cutting Pipe cut, flattend and wave; |
Applications
Widely used in the farm/ranch for enclosure of livestock/animal(sheep/goats/cattle/horse etc) or protecting crops/vegetable. It also can be used as barrier fencing in car park area, or store fence.
The farm gate is mainly used for livestock’s protection which has a good effect in garden, roads, farm, meadow and so on.
Specification
Farm Gate | |
| 1. Wire diameter | 5mm |
| 2. Mesh opening | 100*200mm |
| 3. Frame pipe | 32mm*2mm |
| 4. Height | 1170mm |
| 5. Length( Feet) | 6', 8', 10', 12', 14', 16' |
| 6. Length( mm) | 900mm, 2400mm, 3000mm, 3600mm, 4200mm, 4800mm |
N stay/brace farm gate | |||
Nominal (mm & ft) | Actual (mm) | Weight (Kg) | Weld Mesh Nom. (mm) |
3000 (10’0”) | 3000 | 24 | 200x100x5 |
3600 (12’0”) | 3610 | 28 | 200x100x5 |
4200 (14’0”) | 4220 | 32 | 200x100x5 |
4800 (16’0”) | 4830 | 36 | 200x100x5 |
1. Material: Q195 steelFrame tube:33.4*2mm(diameter*wall thickness)N or V type brace
2. Tube: 30*2mm(diameter*wall thickness)
3. Mesh wire diameter: 5mm (hot dip galvanized) hole size:100*200mm
4. Surface treatment: 270g/m2 hot dip galvanized tube, fully anti rust painting after welding.
