Walkway Yellow Equivalent Nosing Hot Galvanized Steel Grating 30x5mm 30x100cm
30*5mm 30x100cm Walkway Yellow Equivalent Nosing Hot Galvanized Steel Grating
Description of hot dipped galvanized steel grating
we have more than 20 years experiene in producing the steel grating walkway. We can provide the steel grating walkway for you.
Material: Low carbon steel , Stainless steel, etc
Bearing Bar Width: 25mm, 30mm, 32mm, 40mm, 60mm, 80mm, etc
Bearing Bar Thickness: 2.5mm, 3mm, 4mm, 5mm, etc
Bearing Bar Pitch: 30mm, 40mm, 50mm, etc
Cross Bar Diameter: 5mm, 6mm, 8mm, etc.
Surface treatment: Hot dip galvanized, Untreatd, Stainless steel , etc

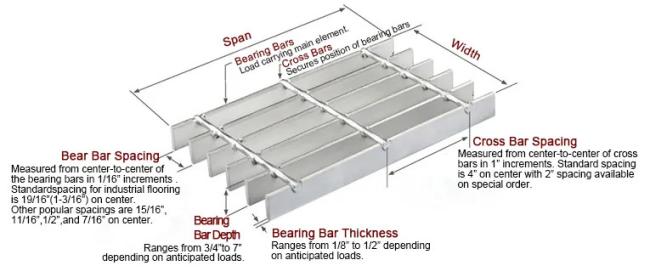

Specification of hot galvanized steel grating steel grating walkway
| No. | Item | Description |
| 1 | Bearing bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc |
| 2 | Bearing bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc |
| 3 | Cross bar | 5*5,6*6,8*8mm(twisted bar or round bar) |
| 4 | Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| 5 | Material Grade | ASTM A36,A1011,A569,Q235,S275JR,SS304,SS400, |
| 6 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 7 | Flat bar type | Plain,Serrated(tooth-like),I bar (I section) |
| 8 | Standard | China:YB/T 4001.1-2007,USA:ANSI/NAAMM(MBG531-88), |
Different specification has differenct steel grating prices.

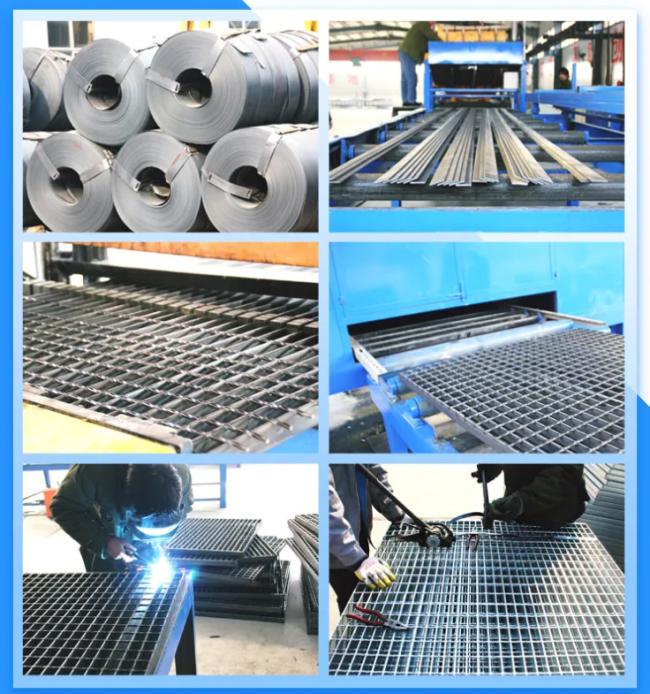

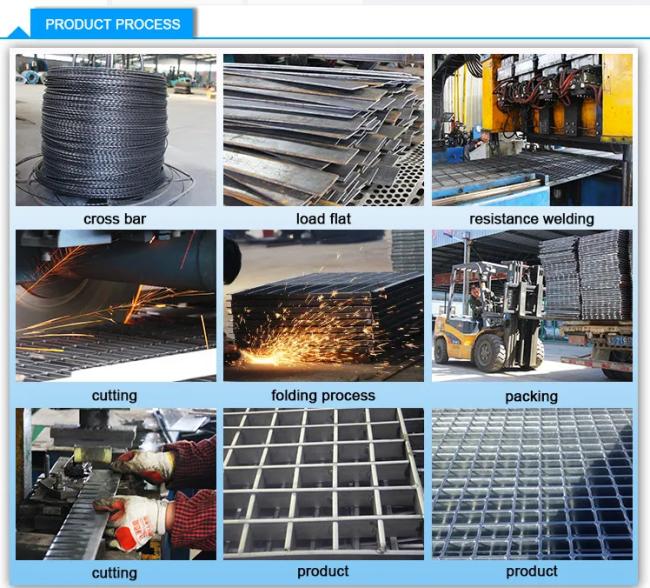

Professional Work shop of steel grating walkway
Steel grating walkway is made by welding with Flat steel and Cross bars with certain distance. As we have more than 20 years experience, so we can guarantee the catwalk steel grating with good welding technique and heavy galvanized coating.We can supply our client high quality steel grating walkway with best steel grating prices in the market.
Application of steel grating walkway
Steel grating walkway is mainly used in the chemical industry, food processing, catwalk and trench cover and other industrial as listed: Power plant, Chemical plant, Oil refinery, Steel plant, Machinery plant, Paper-making factory, Waste water treatment, Pharmacy industrial, Food processing,etc.
