75mm Insulation Hangers With Perforated Base Fixing Insulation Material To Wall & Ceiling
75mm Insulation Hangers With Perforated Base Fixing Insulation Material To Wall & Ceiling

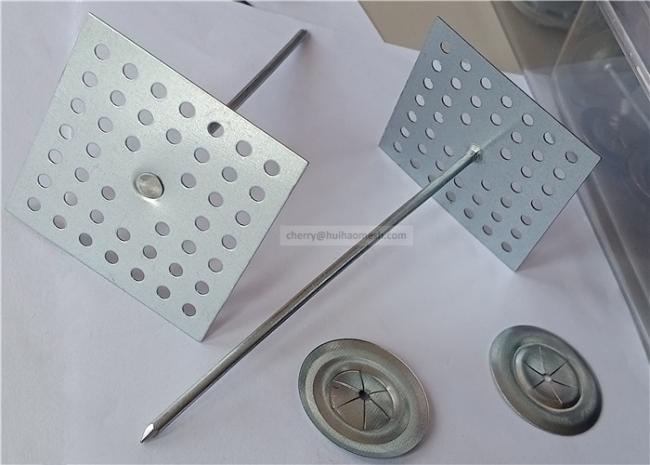

Specification details of the insulation hangers with perforated base
Insulation hangers with perforated base are widely used to attach insulation material with the use of general purpose adhesive.
Huihao Hardware Mesh Product Limited is a professional manufacture of perforated base insulation hangers and self locking washers, we choose high standard raw materials, have fully automatic production line and strict quality control system, the quality is good, and the delivery is fast.
If you are in need of perforated base insulation hangers and self locking washers, please feel free to ask me a price or sample, my email is cherry@huihaomesh.com
Base size in common: 40mmx40mm, 50mmx50mm
Pin diameter in common: 2mm, 2.5mm, 2.7mm, 3mm and 10ga (3.4mm)
Pin length in common: 50mm, 63mm, 90mm, 114mm, 125mm, 175mm, 203mm, 230mm etc.
Surface treatment: zinc coated or copper coated for mild steel material
|
Material available |
|
|
Pin material |
-mild steel: must be annealed treatment, easy for bend; zinc coated/copper plated finished for anti-rust -aluminum 1100 grade -annealed stainless steel for specification |
|
Base |
Galvanized steel, stainless steel |
|
Common Size Details |
|||
|
base type |
pin diameter |
pin length |
material thickness |
|
25 mm x 25 mm |
1.8 mm , 2.0 mm |
20 mm - 114mm |
0.4-0.5 mm |
|
40 mm x 40 mm |
2.5 mm, 2.7mm |
20 mm -180mm |
0.4-0.5 mm |
|
50 mm x50 mm |
2.7 mm , 3.0mm, 3.4mm |
50 mm - 280mm |
0.4-0.5 mm |
  |
|||
Applications of the insulation hangers with perforated base
 |
1. Wipe surface clean Perforated insulation hangers must be applied to a clean, dry, non-painted surface. |
 |
2. Apply adhesive to the bottom of the perforated insulation hangers Spread adhesive onto the perforated base with a putty knife. |
 |
3. immediately stick the insulation hangers in place. Press the hangers into position with a twisting motion to assure an even spread of adhesive. The adhesive should protrude through the performation & beyond the edges of base. |
 |
4. Install Insulation Note: allow adhesive to dry thoroughly before hanging insulation, usually 24-72 hours. |
 |
5. Secure with washers Secure insulation in place with a self locking washer and then bend over or clip off the pins |
Package Details Of The Perforated Base Insulation Hangers
|
PIN LENGTH |
CARTON SIZE |
QTY/CARTON |
|
38MM |
41CMX28CMX17CM |
1000PCS |
|
50MM-65MM |
41CMX28CMX17CM |
500PCS |
|
70MM-84MM |
30CMX28CMX29CM |
500PCS |
|
90MM-120MM |
30CMX30CMX30CM |
500PCS |
|
130MM-160MM |
30CMX30CMX35CM |
500PCS |
| 170MM-203MM | 30CMX30CMX28CM | 250PCS |
| OTHERS | SUPPORT CUSTOM | SUPPORT CUSTOM |
 |
||
Huihao Hardware Mesh Product Limited.
| 1. We sell what we manufacture, the price is good. 2. We choose the best quality materials to make sure the good quality. 3. We have fully automatic production line to make sure the quick delivery. 4. We have strict quality control system. 5. The material, the size, the package all could be customized according to customer's requirement. 6. We have free samples, for you to check the quality. |
  |
