Self adhesive Tape 230mm Insulation Pins Galvanized Steel
Price:
Negotiable
MOQ:
10000 sets 230mm Insulation Pins
Delivery Time:
7 WORK DAYS
Brand:
HUIHAO KASITE
Product Description
Household Insulation Building Materials 230mm Insulation Self Stick Pins
Description details of insulation pins
self stick pins is square metal sheet with a self stick base, the self stick base is made up from 2"×2" metal base with a double faced tape attached a metal nail, peel the release paper on the base and firmly press the pin to the place where need to install insulation, work with the self locking washers or Dome caps to fasten the insulation materials.
Specification details of insulation self stick pins
| modle | BASE TYPE | SUPPORT NAIL DIA | LENGTH OF NAILS |
| SQ-50-55 | 0.5MM X50MM | 2.7MM, 3MM | 55MM |
| SQ-50-63 | 0.5MM X50MM | 2.7MM, 3MM | 63MM |
| SQ-50-70 | 0.5MM X50MM | 2.7MM, 3MM | 70MM |
| SQ-50-90 | 0.5MM X50MM | 2.7MM, 3MM | 90MM |
| SQ-50-100 | 0.5MM X50MM | 2.7MM, 3MM | 100MM |
| SQ-50-110 | 0.5MM X50MM | 2.7MM, 3MM | 110MM |
| SQ-50-120 | 0.5MM X50MM | 2.7MM, 3MM | 120MM |
| SQ-50-130 | 0.5MM X50MM | 2.7MM, 3MM | 130MM |
| SQ-50-140 | 0.5MM X50MM | 2.7MM, 3MM | 140MM |
| SQ-50-160 | 0.5MM X50MM | 2.7MM, 3MM | 160MM |
| SQ-50-180 | 0.5MM X50MM | 2.7MM, 3MM | 180MM |
| SQ-50-203 | 0.5MM X50MM | 2.7MM, 3MM | 203MM |
| SQ-50-230 | 0.5MM X50MM | 2.7MM, 3MM | 230MM |
| SQ-50-250 | 0.5MM X50MM | 2.7MM, 3MM | 250MM |
Technical data of insulation pins
| Adhesive | Base |
White, cross-linked, closed-cell polyethylene foam
|
| Coating | Modified acrylate adhesive on both sides | |
| Liner | Siliconized paper | |
| Thickness | 1 mm |
| Power (FINAT-TM 1, on stainless steel, one side covered with 50 microns polyester film) | |||
| 1 minute | >18 N/25 mm | ||
| 20 minutes | tear | ||
| 24 hours | tear | ||

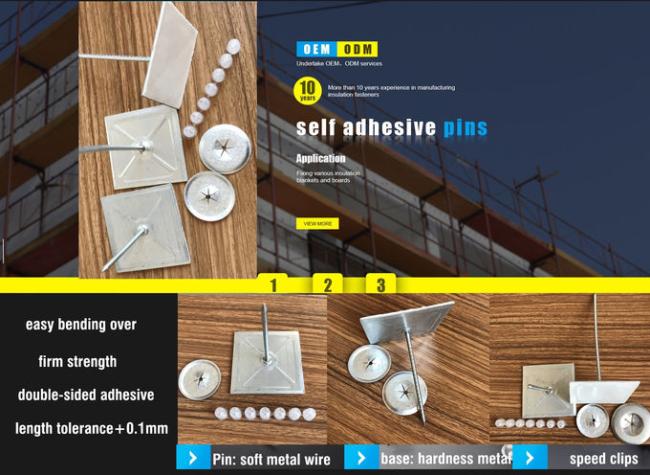

Insulation self stick pins display

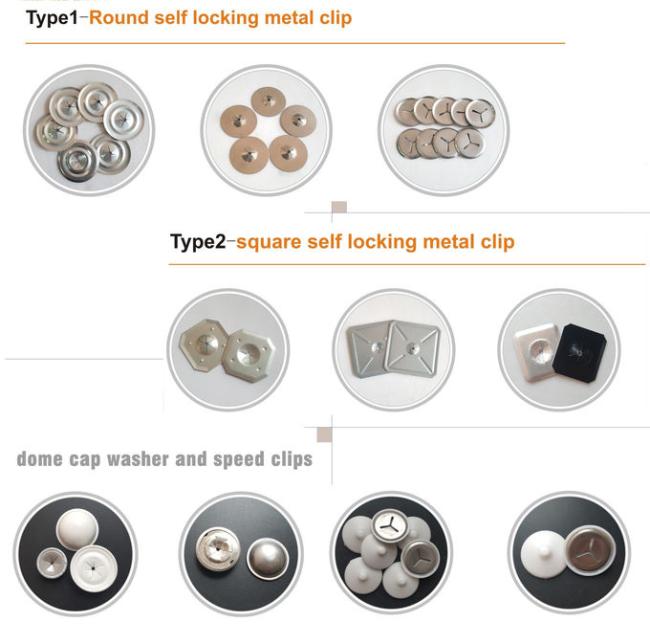

Self locking washer and dome caps for fixing insulation self stick pins
HUIHAO HARDWARE
|
Insulation pins and self locking speed clip is most popular in international market. We have owned a lot of customers from Europe, Australia, Middle East, Southeast Asia and North America.
|
