Stainless Steel Wire Mesh Fastener Clips 2.0x100mm To Secure Solar Panels Mesh
Stainless Steel Wire Mesh Fastener Clips 2.0x100mm Used To Secure Solar Panels Mesh
Quick Details Of Stainless Steel Wire Mesh Fastener Clips:
Stainless Steel Wire Mesh Fastener Clips are used to protect solar panels from rodents and
nesting birds with welded wire mesh (not included).
The Stainless Steel Wire Mesh Fastener Clips are combined of stainless steel J hooks and
double side black coating self locking washers.

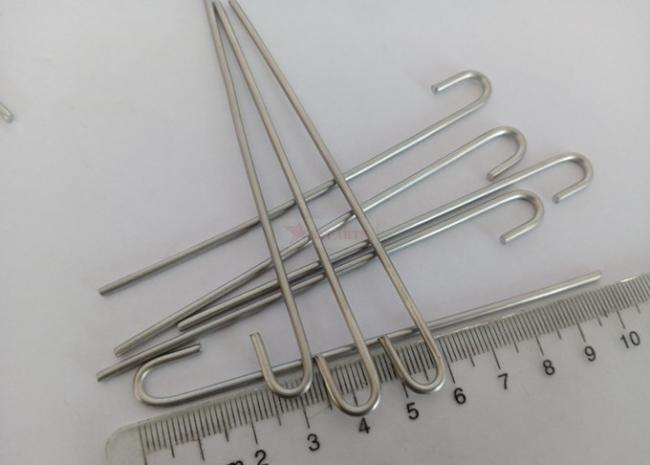

The 304 stainless steel J hook easily attaches to the solar panel frames and can be easily
bent or trimmed after assembly, while the 304 stainless steel washers firmly hold welded wire
mesh to the module assembly.
1. For the J hooks, the material is anneaded stainless steel wire, it is easy to be bent over,
it is very improtant for fixing welded wire mesh.
2. For the self locking washers, the material is hardness stainless steel material,
it could lock the j hooks firmly and nondeformable.
3. For the self locking washers, we must consider left time, so anti-uv black coating for the
stainless steel self locking washers could make it more durable.
4. Stainless steel wire mesh fastener clips will not drill or damage the panels.
5. The installation and remove of the stainless steel wire mesh fastener clips are quickly and
easily.
| Item | Material | Wire Dia | Length | Surface Finish |
| J Hooks | Stainless Steel | 2.0mm | 100mm | BLACK PVC COATED |
| OEM | Custom | Custom | Custome | Custom |
 |
||||
| Item | Material | Size | Thickness | Surface Finish |
| Self Locking Washers | Stainless Steel | 30mm | 0.4mm | Double size black coating |
| OEM | Custom | Custom | Custome | Custom |
  |
||||
Applications Of Stainless Steel Wire Mesh Fastener Clips 2.0x100mm:
|
> The QTY needed for one solar panel: A typical solar panel is approximately 1.6m tall and 1m wide, on a typical panel one should use 3 fastener clips on each long edge and 2 on each short edge. > The QTY needed for one roll: usually the length of solar panel roll is 30m, each roll is allocated with 60 fastener clips. > The QTY needed for a standard 3kW system (2 rows of 6 panels each - 12 panels total installed in a portrait orientation) : 35 J hooks fasteners with self locking washers.
|
 |
Package Of The Stainless Steel J Hooks With Self Locking Washers:
| J hook standard package |
1. 100 pcs per pp bag, 80 bags per carton 2. 500pcs per pp bag, 16bags per carton 3.1000pcs per pp bag, 8 bags per carton |
| self locking washer |
1. 100 pcs per pp bag, 60 bags per carton 2. 500pcs per pp bag, 12bags per carton 3.1000pcs per pp bag, 6 bags per carton |
 |
|
FAQ Of Huihao Hardware Mesh Product Limited:
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. Can you accept small orders?
Yes, for common size, we could accept small orders.
5. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
6. What's your advantages?
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
