1" Length Galvanised Cup Head Capacitor Discharge Cd Weld Pins With Paper Washer

Price Negotiable

Price: Negotiable

MOQ: 10,000PCS

Delivery Time: 7-10 days after confirm the order

Brand: HUIHAO

Product Description

1"Length Galvanzied Cup Head Capacitor Discharge(CD) Weld Pins With Paper Washer

1.Product Name :Cup head capacitor discharge(CD)weld pins

2.Head diameter :30mm,35mm beveled edge cap

3.Pin diameter :3.4mm,3.0mm,2.7mm,2.0mm other size to be request

4.Pin length :1/2" 1" 1 1/8" 1 1/2" 2" 3" 4" 41/2"

Material:

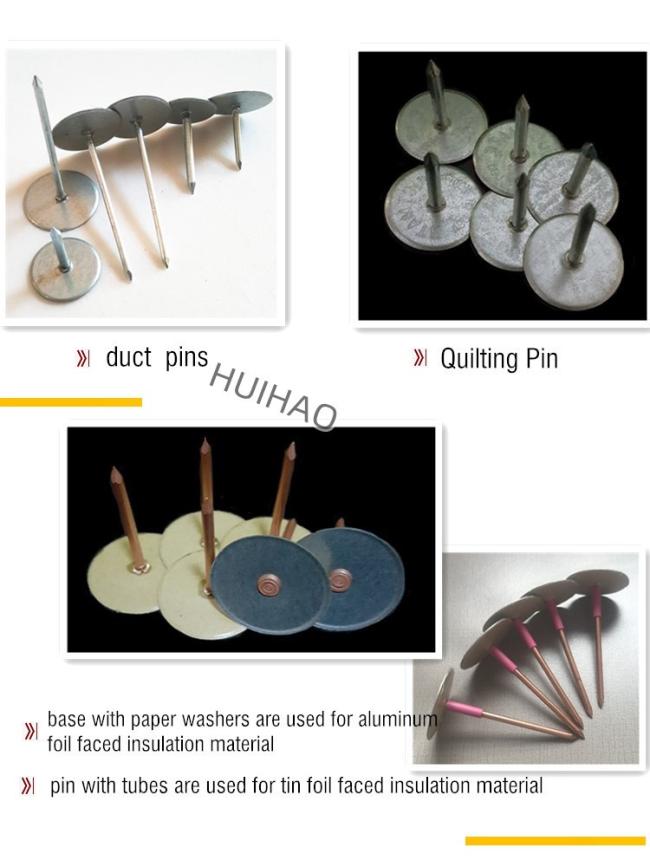

Cup Head Pins with Paper Washer is a fabricated part made up of a weld pin and a staked on retaining

washer. Cup Head Pins with Paper Washer installed are usually applied with a capacitor discharge

stud welder. They are commonly used for securing insulation and as a hook-less lacing anchor to

secure insulation inside fabricated blankets.

Round base	Pin diameter	Pin length	Base type
30mm	14ga,12ga	38-250mm	Base with paper base without paper
35mm	12ga,10ga	25mm,38mm
25mm	12ga,10ga,3mm	25mm,38mm
Material	Mild steel	stainless steel	Aluminum alloy
Surface treatment	zinc/copper coated	cleaning	No

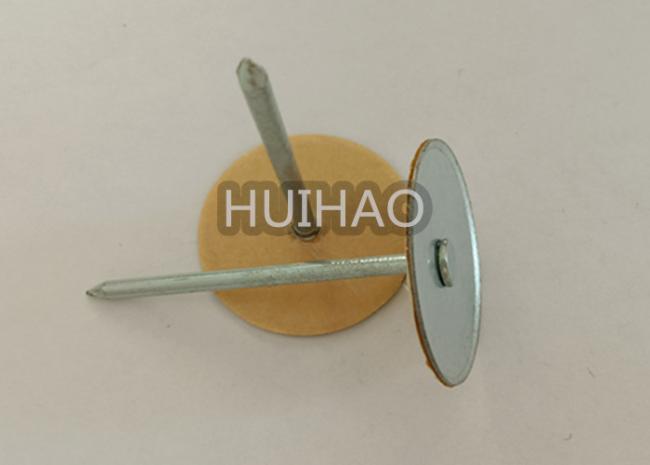

Head diameter:30mm

Pin diameter:2.7mm

Pin length:1"

with paper washer

Head diameter:30mm

Pin diameter:2.7mm

Pin length:1"

without paper washer

features of Cup Head Capacitor discharge(CD)weld pins
BETTER PLATING	weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Quilting Cup Head Insulation Pins are copper plated.
REDUCED DOWN TIME	Consistent point quality reduces frequency of machine adjustments.
STRONGER WELDS	Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
CORROSION RESISTANCE	Plating exceeds current SMACNA standards for corrosion resistance.
TEMPERATURE RANGE	Quilting Cup Head Insulation Pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.
VIBRATIONS	Quilting Cup Head Insulation Pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.
