Galvanized Steel Cup Head Capacitor Discharge Weld Pins 3" With Paper Insulating Washers Attached
Galvanized Steel Cup Head Capacitor Discharge Weld Pins 3" With Paper Insulating Washers Attached
Quick Details Of The Cup Head Capacitor Discharge Weld Pins 3":
Cup Head Capacitor Discharge Weld Pins With Paper Insulating Washers Attached are used to avoid damaging arcing when welding through foil faced insulation.
Cup Head Capacitor Discharge Weld Pins simplify the permanent installation of duct liner or similar insulation to ducting and other HVAC sheet metals and housings.
They can be applied quickly and easily using standard inductive CD stud welding equipment or resistance welding equipment.
If you are in need of cup head weld pins for duct insulation work, please feel free to ask me a price or sample, our cup head weld pins are with good quality, any my email address is cherry@huihaomesh.com
|
Item: 3" Cup Head Capacitor Discharge Weld Pins With Paper Insulating Washers Head Material: Galvanized steel
|
|
 |
Specifications Of The Cup Head Capacitor Discharge Weld Pins:

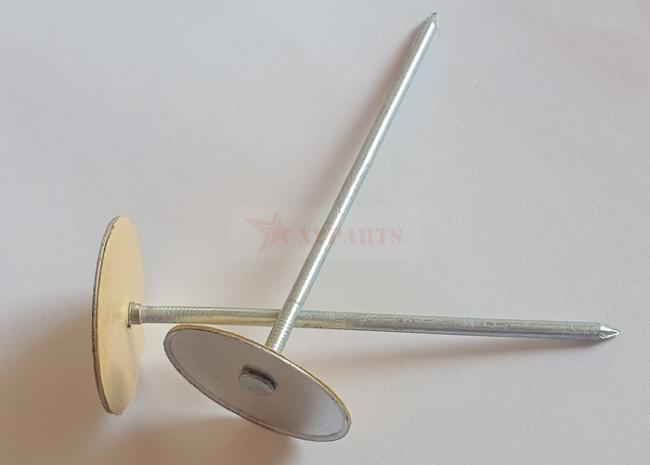

| Photo | Cup head capacitor discharge weld pins consist of a round washer and a nail. | |||||
 |
Washer material |
Washer size (B) |
Nail material |
Nail dia (A) |
Pin length (L) |
|
| Galvanized steel |
25mm, 30mm, 38mm, |
Galvanized steel, Copper coated steel
|
2mm, 2.7mm, 3.0mm, 3.4mm |
3/8" - 12" | ||
| Note | The washer and nail size could be customized . | |||||
| Beveled edge cap | Prevents tearing of duct liner | |||||
| Faster welds | Forged diamond point design creates more electrical resistance for faster welds. | |||||
| Better plating | Zinc and copper plating exceeds SMACNA standards and gives a more professional appearance. | |||||
| Reduced down time | Consistent point quality reduces frequency of machine adjustments. | |||||
| Stronger welds | Hardened steel point assures positive electrical contact for complete sheet to pin fusion. | |||||
| Applied with standard equipment | Easily applied with automatic pin welder or most standard hand held or hopper fed resistance welders. | |||||
 |
||||||
Application Of The Cup Head Capacitor Discharge Weld Pins:
 |
Item: Cup Head Capacitor Discharge Weld Pins Application: used for fastening insulation material on metal surfaces. Step: 1. Hanging the insulation |
| Recommended for | Pin length before welding | |||
| 1/2" insulation(all densities) | 12.67mm | |||
| 1" insulation(1-1/2"ib density) | 17.63mm | |||
| 1" foam | 25.55mm | |||
| 1" insulation(3ib densities) | 23.72mm | |||
| 1-1/2" insulation(all densities) | 28.42mm | |||
| 2" insulation(1-1/2"-2" ib density) | 37.95mm | |||
| 2" insulation(3ib densities) | 48.77mm | |||
| 3" insulation(all densities) | 69.85mm | |||
| 4" insulation(all densities) | 95.00mm | |||
Package Of The Cup Head Capacitor Discharge Weld Pins:
|
1. 2000 pcs / 3000 pcs/ 5000 pcs per carton 2. 36 cartons per pallet
3. or according to your requirement.
|
|
 |
Certificate Of Hardware Mesh Product Limited:
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
5. What's your advantages?
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
