Galvanized Steel M1.8x30mm Duct Liner Pins For Hvac Ductwork Insulation
Galvanized Steel M1.8x30mm Duct Liner Pins Used For HVAC Ductwork Insulation
Quick Details Of The M1.8x30 Duct Liner Pins:
Duct liner pins are used to attach insulation to sheet metal air ducts, and are generally applied
during the duct fabrication stage. Duct liner pins can be welded in place with a manual load
spot welder or an automated spot welder. The duct liner pins are available with a flat top dish
or a beveled edge dish-usually determined by user preference.
|

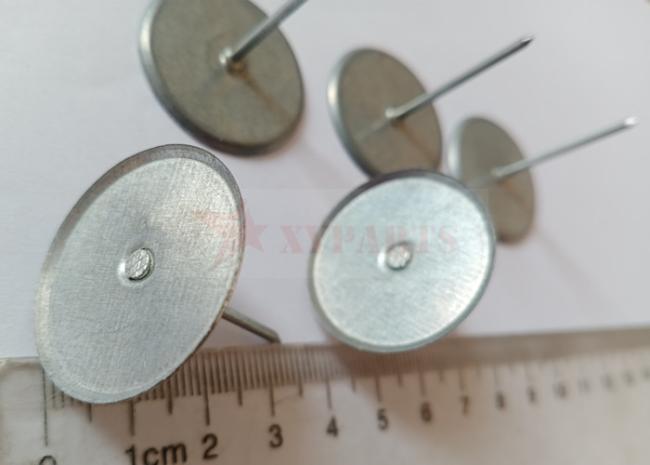

Name: Galvanized Steel M1.8x30mm Duct Liner Pins Used For HVAC Ductwork Insulation Factory: Xiangyi Parts Material: Galvanized steel Base Size: 30mm Base Thickness: 0.4mm Pin Diameter: 1.8mm Pin Length: 30mm
|
|
 |
Specifications Of The Cup Head Duct Liner Pins:
| Photo | Cup Head Duct Liner Pins | |||||
 |
Material | Pin Plating | Washer Plating | Pins dia | Pin length | |
|
Mild steel |
Galvanized Copper coat |
Galvanized |
1.8mm, 2mm, 2.7mm, 3.0mm, 3.4mm |
19mm, 25mm, 38mm, 45mm, 50mm, 63mm, 76mm, 114mm, |
||
|
Note |
The washer and pins size could be customized . |
|||||
|
Beveled edge cap |
Prevents tearing of duct liner |
|||||
|
Faster welds |
Forged diamond point design creates more electrical resistance for faster welds. |
|||||
|
Better plating |
Zinc and chromate plating exceeds SMACNA standards and gives a more professional appearance. |
|||||
|
Reduced down time |
Consistent point quality reduces frequency of machine adjustments. |
|||||
|
Stronger welds |
Hardened steel point assures positive electrical contact for complete sheet to pin fusion. |
|||||
|
Applied with standard equipment |
Easily applied with automatic pin welder or most standard hand held or hopper fed resistance welders.
|
|||||
Application Of The Cup Head Duct Liner Pins:
 |
1. Hanging the insulation |
 |
2. Press the pin through insulation |
 |
3. Weld in place and install the washer to complete the installation |
Certificate Of Huihao Hardware Mesh Product Limited:
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
5. What's your advantages?
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
