Flue Gas Desulfurization Hastelloy Mesh Fluorine Chemical Industry
B2 B3 C22 C276 100 Mesh Hastelloy Alloy Woven Wire mesh

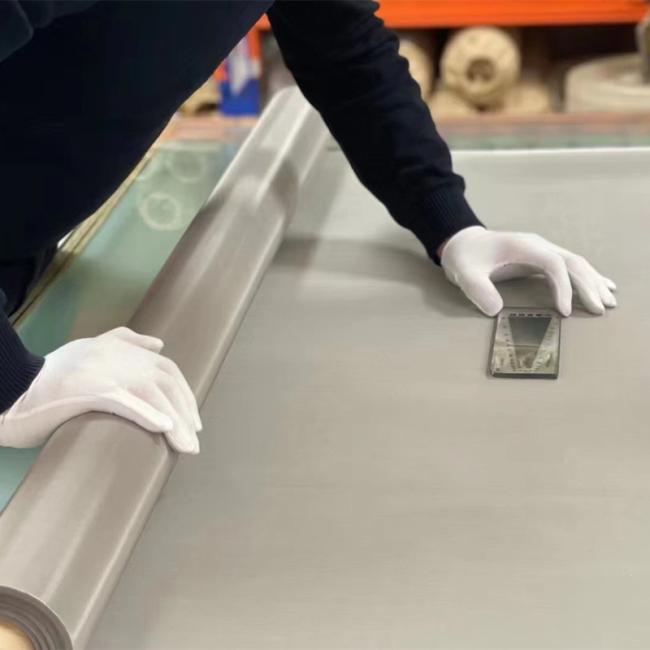

Hastelloy mesh is also named with Hastelloy wire mesh and hastelloy mesh screen. It is made by weaving hastelloy wire. Hastelloy mesh is available in several grades: hastelloy B, hastelloy C, hastelloy C276, etc. The most commonly used one is hastelloy C276 mesh. Hastelloy mesh has outstanding corrosion resistance in elevated temperature, and is providing outstanding protection in the abrasive conditions. It has supreme durability, good strength and high pressure and stress tolerance.
Properties of Hastelloy Mesh:
1. Resistance to reducing and oxidizing media
2. Prevent pitting and crevice attack
3. Outstanding resistance to stress corrosion cracking and reducing aqueous media
4. Resistance to hydrates, chlorine and nitric acid and other oxidizing acids and chlorine ions
5. Resistance to strong oxidizers like ferric and cupric chlorides
6. Prevent corrosion in formic and acetic acids and acetic anhydride
Applications of Hastelloy Mesh
Drugs manufacturing
Cellophane preparation
Chlorination devices
Pesticide processing
Incineration scrubber apparatus
Filtration and sieve screens for performing in acidic media
Filters for portable and duct mounting electronic air cleaners
Specification of hastelloy mesh
Hastelloy C276 Wire Mesh – Typical Chemical Composition (%) | |||||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | Co | Fe | W | V |
| 0.02 | 1.0 | 0.03 | 0.03 | 0.08 | 14.5-16.5 | Balance | 15.0-17.0 | 2.5 | 4.0-7.0 | 3.0-4.5 | 0.35 |
- Wire diameter: 0.05mm to 8mm
- Mesh: 0.5 mesh to 400mesh
- Opening size: 0.05mm to 30mm
- Mesh wide: up to 3000mm
