70 MM Meal Tile Backer Board Washer Fix Insulation On Walls

Price Negotiable

Price: USD 0.015-0.03/pcs

MOQ: 10000pcs

Delivery Time: 20 days after the payment

Brand: Huihao

Product Description

70 MM Meal Tile Backer Board Washer To Fix The Insulation On The Walls

Description Of 70mm Backer Board Washers

Tile Backer Board Washers also named metal disc washers ,are used to secure tile backer boards, cement board,

XPS insulation boards, and other insulations foam to wooden floors or stud walls.We provide the washers in different material and size .

The most common size is 35 mm, 36mm ,50 mm, 70mm

Product name : Tile Backer Board Washers , metal disc washers
Material :Stainless steel , Mild steel
Washer type : Perforated disc
Washer size :70 mm ,alsocold be 32mm,35mm,36mm,50mm , etc
Center hole : 5 mm in common , or made as your requestion
Thickness :0.6 mm or 0.8mm
Edge hole : 8 mm
Application : for light weight boards fixing .
Related parts: metal screws (length could be as your request).

Data sheet Of 70mm Backer Board Washers

Nane	Backer Board Washers
Material	Washers diameter	Center hole diameter	Washer thickness
Stainless steel , mild steel	35mm	5mm,6mm,8mm	0.6mm,0.7mm,0.8mm
Stainless steel , mild steel	36mm	5mm,6mm,8mm	0.6mm,0.7mm,0.8mm
Stainless steel , mild steel	50mm	5mm,6mm,8mm	0.6mm,0.7mm,0.8mm
Stainless steel , mild steel	70mm	5mm,6mm,8mm	0.6mm,0.7mm,0.8mm

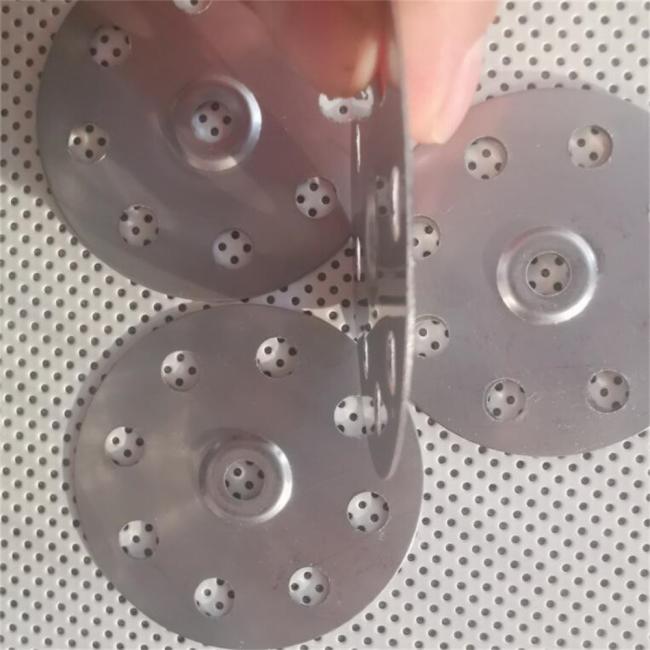

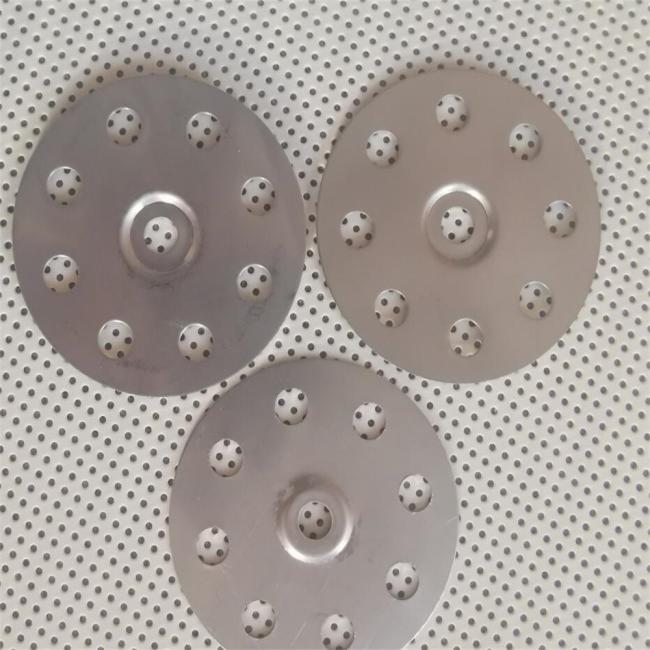

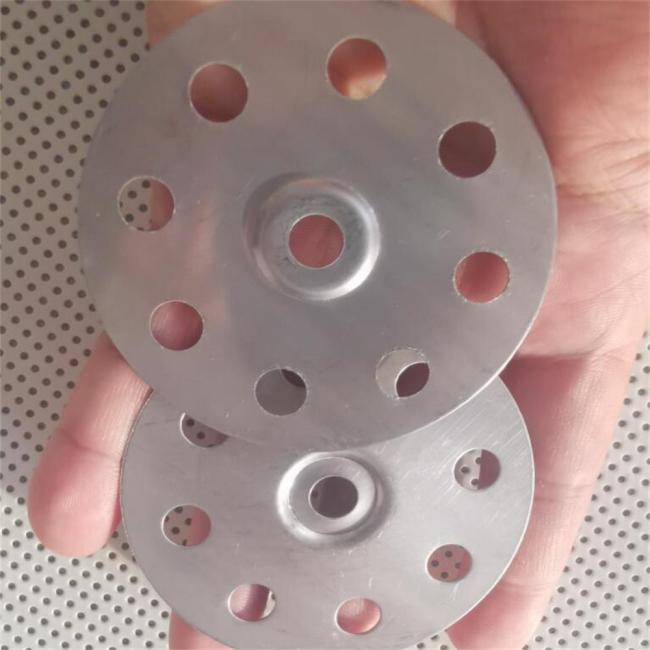

Detailed Image Of 70mm Backer Board Washers

Application Of 70mm Backer Board Washers

1. When using the 36mm tile backer board washers to fix tile backer boards
to walls and floors, it is recommended to use 15 washers per 1200 x 600mm board.
2. This is only a guide and specifically it's depended on the type, thickness, sub surface and
what is to be put onto the board.
3. It is the installers responsibility to use the correct number of washers to hold the tile backer board in place.

Package Of70mm Backer Board Washers

packing method: plastic bag +carton
20pcs/50pcs/75pcs/100pcs per bag. then pu into cartons .

FAQ Of Huihao Hardware Mesh Product Limited.

Q1: What type of insulation boards are compatible with these Zinc-Plated Insulation Washers?

A1: Our Zinc-Plated Insulation Washers are designed to be compatible with a wide range of insulation boards, including popular brands such as XPS boards, backer boards, and various other board manufacturers.

Q2: How do these Zinc-Plated Insulation Washers prevent damage to the insulation boards?

A2: The washers act as a protective barrier between the fastener and the insulation boards, distributing the load evenly and preventing damage such as surface indentations or compressions.

Q3: Are these Zinc-Plated Insulation Washers resistant to corrosion?

A3: Yes, our washers feature a zinc-plated finish, which provides excellent corrosion resistance, ensuring their durability and longevity even in demanding environments.

Q4: Can these Zinc-Plated Insulation Washers be used for both residential and commercial projects?

A4: Absolutely! These washers are suitable for a wide range of applications, inc

0.6mm,0.7mm,0.8mm
