65 Manganese Steel Belleville Spring Circlip Bearing Washer M2-M12
65Manganese Steel Spring Circlip / Bearing Clamp Retaining Ring / Plum Blossom Circlip / Bearing Washer
Support customized 65 Manganese Steel Spring Circlip / Circlip Bearing Washer , You can contact customer service
Material: 65 Manganese Steel
Notes:
The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
The size,color,printing word ,etc is subjectde to the real product.
If the above link does not have the product that you want, please consult us and customize.
- Starlock Washer provides spring force between two attachments and grip shaft firmly in place.
- These push-on washers create a permanent installation and will lock firmly.
- 65Mn steel is a perfert material for spring washer due to its good strength. Black oxide finish gives better corrosion resistant performance in dry environments.
- Widely used in machinery equipment, industrial production of shock absorption, bearings, machinery, etc.
- The Starlock Washers have teeth that dig into the shaft material, so expect minor scratching.

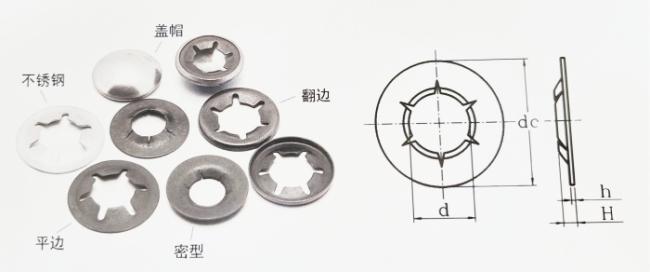

Specification details of circlip bearing washer
| size | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | |
| d | MIX | 1.9 | 2.9 | 3.9 | 4.9 | 5.9 | 7.9 | 9.9 | 11.9 |
| MIN | 1.8 | 2.75 | 3.75 | 4.75 | 5.75 | 7.75 | 9.75 | 11.75 | |
| dc | 6 | 10 | 12 | 14 | 16 | 17.5 | 21 | 27 | |
| H | 0.7 | 1.3 | 1.4 | 1.55 | 1.75 | 1.8 | 2.2 | 2.8 | |
| h | Average | 0.25 | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.7 | 0.9 |
| MIX | 0.275 | 0.325 | 0.325 | 0.43 | 0.43 | 0.53 | 0.74 | 0.95 | |
| MIN | 0.225 | 0.275 | 0.275 | 0.37 | 0.37 | 0.47 | 0.66 | 0.85 | |
Advantages of circlip bearing washer
- Made Of 65Mn Metal Steel, Anti-Corrosion And Durable
- Great Corrosion Resistance For Machinery Equipment, Easy To Install
- Provide Spring Force, Grip Sturdy, Create A Permanent Installation
- Widely Used In Machinery Equipment, Industrial Production Of Shock Absorption And Insulation
We have Magnetic Powder Detector, Material Testing Machine, Metallographic Microscope, such testing instruments, guarantee product high quality and beautiful appearance.The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing.
OUR PACKAGE OF BEARING WASHER M2-M12
1. 25 kg bags or 50kg bags.
2. bags with pallet.
3. 25 kg cartons or cartons with pallet.
4. Packing as customers’ request
