M6 Starlock Retaining Washer 5.5mm Id 16mm Od Push On Lock Speed Clip
Price:
Negotiable
MOQ:
10000PCS Starlock Retaining Washer
Delivery Time:
7 work days
Brand:
HUIHAOKST
Product Description
M6 Starlock Retaining Washer 5.5mm I.D. 16mm O.D. Push On Lock Speed Clip
Specification of m6 starlock retaining washer
Washer Type: Starlock Washer
Material: 65Mn Spring Steel
Finish: Black Oxide
Size: M6
Fit Shaft Outer Diameter: 6mm
Inner Diameter: 5.5mmm
Outer Diameter: 16mm
Thickness: 2.2mmm
Description of starlock retaining washer
- Starlock Washer provides spring force between two attachments and grip shaft firmly in place.
- These push-on washers create a permanent installation and will lock firmly.
- 65Mn steel is a perfert material for spring washer due to its good strength. Black oxide finish gives better corrosion resistant performance in dry environments.
- Widely used in machinery equipment, industrial production of shock absorption, bearings, machinery, etc.
- The Starlock Washers have teeth that dig into the shaft material, so expect minor scratching.

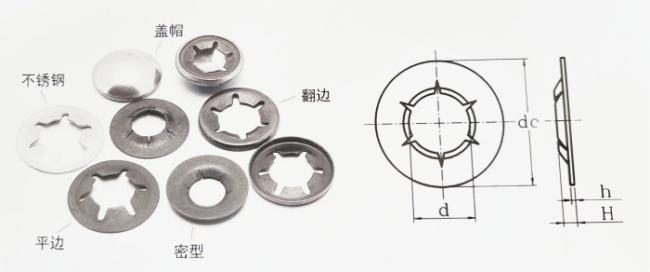

Technical data of starlock retaining washer
| size | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | |
| d | MIX | 1.9 | 2.9 | 3.9 | 4.9 | 5.9 | 7.9 | 9.9 | 11.9 |
| MIN | 1.8 | 2.75 | 3.75 | 4.75 | 5.75 | 7.75 | 9.75 | 11.75 | |
| dc | 6 | 10 | 12 | 14 | 16 | 17.5 | 21 | 27 | |
| H | 0.7 | 1.3 | 1.4 | 1.55 | 1.75 | 1.8 | 2.2 | 2.8 | |
| h | Average | 0.25 | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.7 | 0.9 |
| MIX | 0.275 | 0.325 | 0.325 | 0.43 | 0.43 | 0.53 | 0.74 | 0.95 | |
| MIN | 0.225 | 0.275 | 0.275 | 0.37 | 0.37 | 0.47 | 0.66 | 0.85 | |

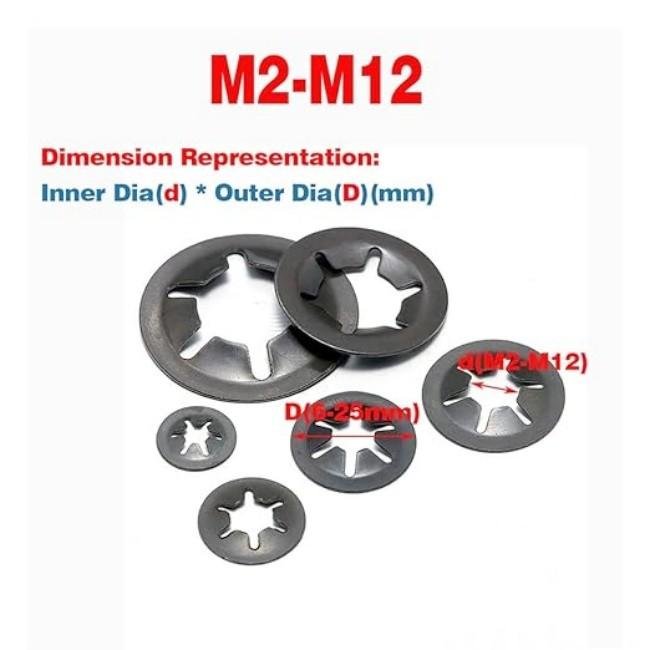

Image details of starlock retaining washer
