Fire Prevention Metal Ring Mesh Curtain For Restaurant Partition
Fire Prevention Metal Ring Mesh Curtain For Restaurant Partition
Quick details of Metal Ring Mesh Curtain
Product name :round ring mesh ,ring mesh curtain ,metal mesh curtain ,metal ring mesh
Material:Carbon steel ,stainless steel ,aluminum alloy
Surface treatment:polish , Electroplating, Anodized
Type :it is made of welded O rings or NON-welded O rings
Feature : ring mesh durabilty and excellent anti-rust,fire proof
properties,software and metal properties enhance many architectural design
Specification of Metal Ring Mesh Curtain
Welded Type :
*****************************************************
| Term | Type | Material | Wire diameter | Outer diameter | Weight/m2 |
| HH-SS-053 | Weld | stainless steel | 0.53mm | 3.81mm | 3.2kgs |
| HH-SS-080 | Weld | stainless steel | 0.80mm | 7.00mm | 2.8kgs |
| HH-SS-150 | Weld | stainless steel | 1.50mm | 15.00mm | 4.8kgs |
| HH-CS-150 | Weld | Copper/brass | 1.50mm | 15.00mm | 5.5kgs |
| HH-SS-200 | Weld | stainless steel | 2.0mm | 20.00mm | 6.8kgs |
| HH-CS-200 | Weld | Copper/brass | 2.0mm | 20.00mm | 7.8kgs |
Non-Welded Type :
******************************************************
| Term | Type | Material | Wire diameter | Outer diameter | Weight/m2 |
| HH-SS-100 | Non-welding | Stainless steel | 1.0mm | 8.00mm | 4.7kgs |
| HH-MS-100 | Non-welding | Mild steel | 1.0mm | 8.00mm | 4.6kgs |
| HH-SS-120 | Non-welding | Stainless steel | 1.2mm | 10mm | 4.8kgs |
| HH-CS-120 | Non-welding | Mild steel | 1.2mm | 10mm | 5.5kgs |
| HH-SS-150 | Non-welding | Stainless steel | 1.5mm | 15mm | 4.8kgs |
| HH-CO-150 | Non-welding | Mild steel | 1.5mm | 15mm | 5.5kgs |
| HH-SS-200 | Non-welding | Stainless steel | 2.0mm | 20mm | 6.8kgs |
| HH-CO-200 | Non-welding | Mild steel | 2.0mm | 20mm | 7.8kgs |
Specification of Metal Ring Mesh Curtain

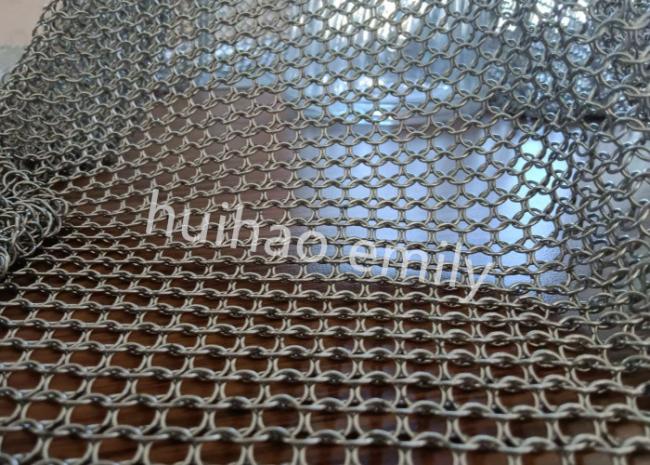

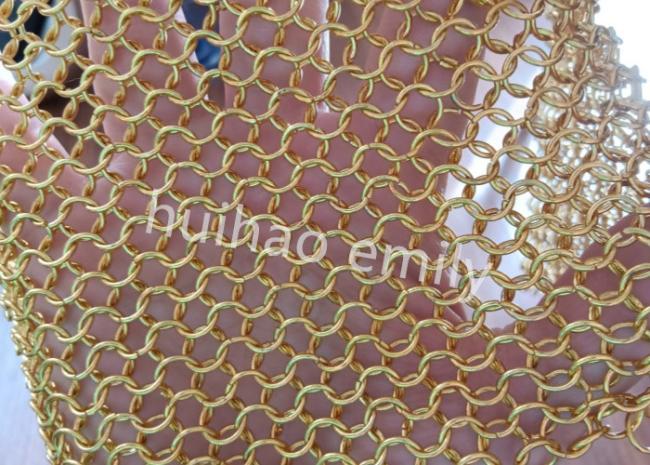

Brass color metal ring mesh |
 |
Stainless steel Metallic primary |
 |
Feature of Metal Ring Mesh Curtain
| Featurer of Metal Round Ring Mesh Curtain |
|
1.They form a unified and polished to a high gloss surface. 2. And they require very little maintenance and can be 100 percent recyclable 3. Withstand long term both the salty air and the stresses caused by wind. 4. In architectural design it meets both functional and aesthetic functions. 5. It is more suitable for used as decorative materials, such as ceiling, partition and background decoration. |
 |

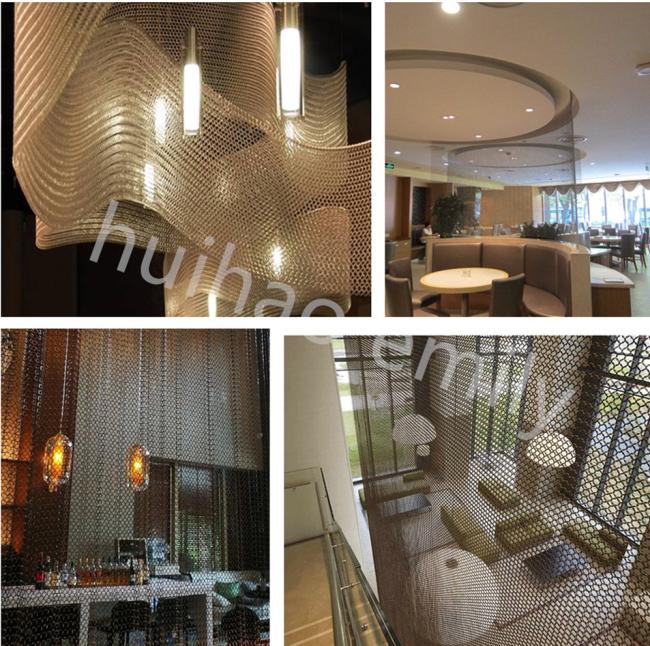

Application of Metal Ring Mesh Curtain
Metal ring mesh curtain Used for Interior and exterior decoration , ceilings, stairs, elevators,
luxurious living rooms, high-rise office buildings, hotels, luxury dance halls, business halls,
etc. for high-rise buildings, with splendid lighting and elegant elegance
| welded metal ring mesh can be used as: | |
|
Residences. Shops. Stair handrails. Upscale resorts. Kitchen. Discotheques |
Hotels. Restaurants. Shopping malls. Showrooms. Office. Stage sets. |
HUIHAO company service :
1.pattern design support according to the application
2.frame design support according to the installation
3.surface treatment support ,inclode to the installation
4.supply install accessories ,include PVDF,PVD Spraying
5.Material:stainless steel ,copper ,bronze ,brass ,aluminum ,aluminum alloy ,ect
6.Weave type :Plain weave,twill weave ,dutch weave ,plain dutch weave ,twill weave ,
uinque woven method,ect
7.ISO9001-2008 Quality certification management system
