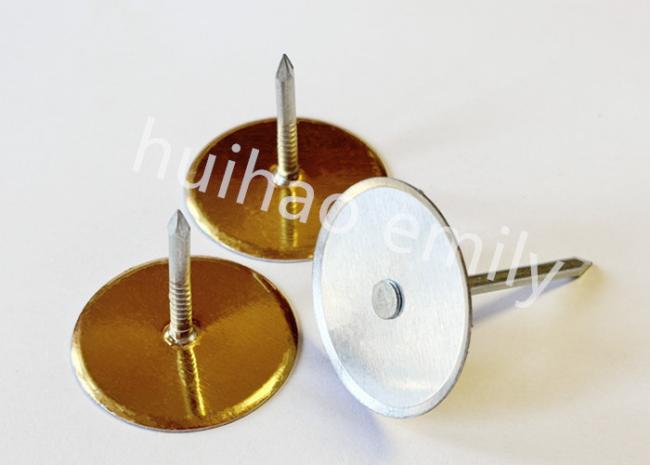

38mm galvanized steel duct liner cup head pins with gold paper

Quick details of 12 ga galvanized steel duct liner cup head pins

A fabricated part made up of a weld pin and a staked on retaining washer. Cup Head Pins are used

for securing insulation and as a hook-less lacing anchor to secure insulation inside fabricated blankets.

Cup Heads are widely accepted as labor-saving fasteners in the thermal and acoustical insulation

markets for use in industrial and commercial applications.

product name :38mm galvanzied steel duct liner cup head pins , Material :galvanzied steel  Base size :30mm Base type :with gold paper  Pin diameter:2.7mm  Pin length:25mm,38mm,75mm,115mm have in stock ,other size to be request

other type of cup head pins

3.4mm cup head pins    material :galvanized steel  base size :25mm in common , 30mm to be request  base type:with paper or without paper  Pin diameter :3.4mm  Pin length :25mm to be 75mm

2.7 mm cup head pins with paper    material :galvanized steel base size :30mm in common base type:with paper  Pin diameter :2.7mm Pin length :25mm ,38mm,75mm,115mm in common ,120-210mm is to be request

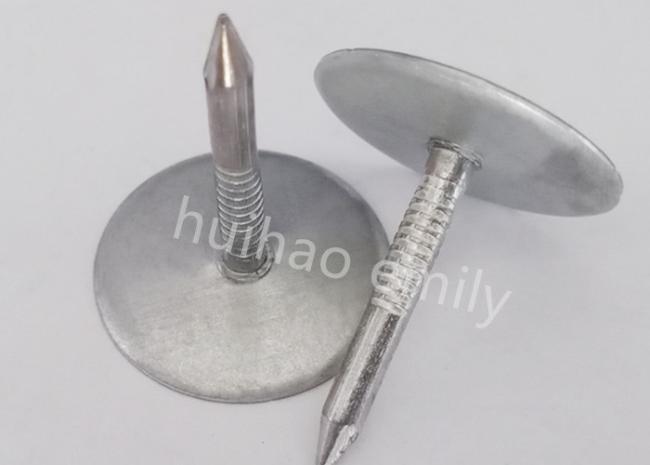

2.7mm cup head pins without paper    material :galvanized steel base size : 30mm in common  base type: without paper Pin diameter :2.7mmmm Pin length :25mm to be 75mm

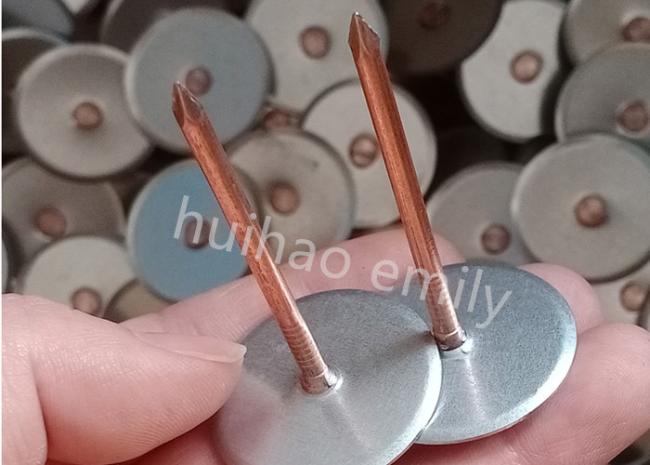

copper coated cup head pins    material :galvanized steel base size :30mm is in common base type:with paper or without paper Pin diameter :2.7mm ,3.4mm Pin length :25mm,38mm,75mm,115mm in in common ,120-210 to be request

Cup head  pin installation:

Recommended assembly method:
1.Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.
2.Remove the protective release paper taking care not to touch the adhesive.
3.Place the hanger in the required position and press the base against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength
of adherence is achieved after 24 hours

Cup head weld pin package:

Package : usually the package is 800/1000/1500 /2000/3000/5000 pcs in carton on pallet

800/1000/15000/2000 in a drum on the pallet

Delivery :for big you choose by sea

for small order or agercy order ,you can choose express by DHL,Fedex ,UPS ,ect

we can also supply door to door service by sea ,by air

Insulation fasteners including a lot of terms as follows:

HUIHAO company is a insulation fasteners/insulation anchors manufacturing company,we produce

all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products

is as following :

CD weld pins                   Lacing Anchors

Bimetallic pin                 Cup head weld pins

Quilting pins                  perforated base pins

self adhesive pins          solar panel mesh clip

all kinds of self locking washers, Dome caps.
