Stainless Steel 316L capacitor discharge (CD) Weld pins for HVAC System

Details of Stainless Steel 316L capacitor discharge (CD) Weld pins :

thermal power station with incineration plants
industrial furnaces,chemical and petrochemical industries
optimum fastening of fire-resistant insulation with special pin and clips
for outstanding protection of steel structures
against high temperature(up to 1250 ℃) and corrosion
fixing parts of the cd weld pins
the pins could be fixed with round self locking washers,square self locking washers ,dome cap washers

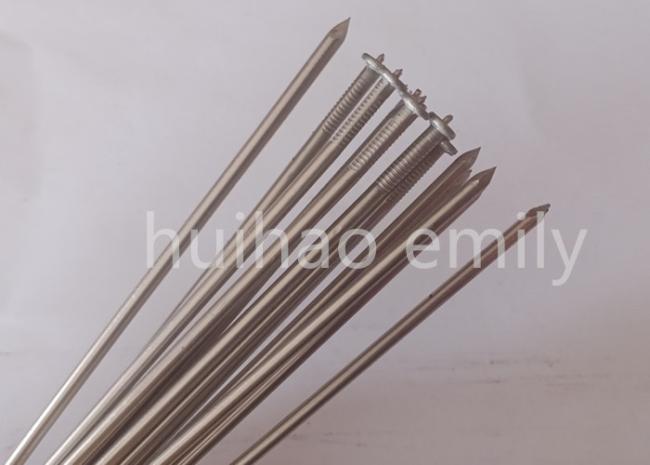

stainless steel CD weld pins   Pin diameter :1-5mm Pin length:10mm-500mm Base type :with flange or without Pin type :flat or sharp

Other type of capacitor discharge (CD) Weld pins :

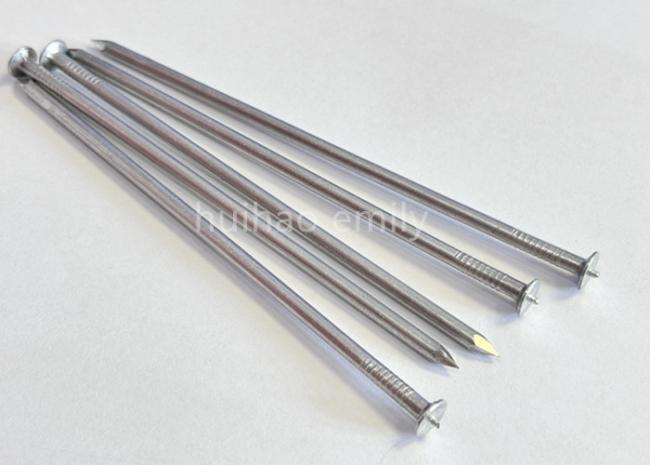

Galvanized steel CD weld pins   Pin diameter :1-5mm Pin length:10mm-500mm Base type :with flange or without  Pin type :flat or sharp

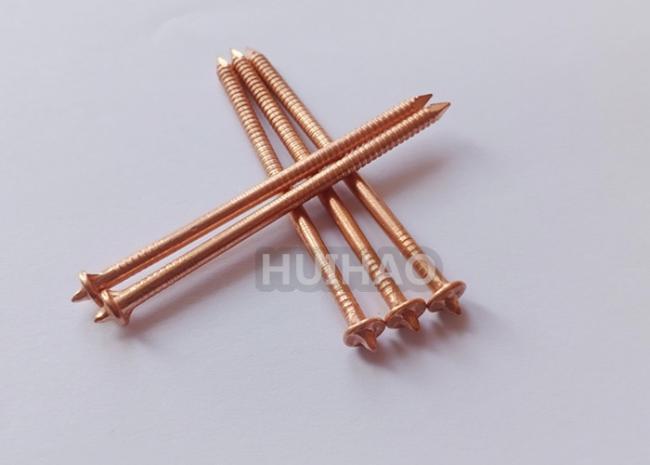

copper coated CD weld pins Pin diameter :1-5mm Pin length:10mm-500mm Base type :with flange or without Pin type :flat or sharp

alumionum CD weld pins     Pin diameter :1-5mm Pin length:10mm-500mm Base type :with flange or without Pin type :flat or sharp

Choose a washer to lock capacitor discharge (CD) Weld pins :

Self locking washer  type :round or square  material :galvanized steel ,stainless steel  Size:20mm,25mm,30mm,32mm,38mm,40mm, 50mm Center hole :for fxing 2.0mm,2.7mm 3.0mm pins	Speed clips  material :galvanized steel ,stainless steel Size:38mm Center hole :for fxing 2.7mm,3.0mm 3.4mm pins,4mm,5mm
metal dome cap washer material :galvanized steel ,stainless steel,aluminum+stainless steel  Size:22mm,27mm,32mm,40mm,42mm,52mm Center hole :for fxing 2.0mm,2.7mm 3.0mm pins	Pe dome cap washer material :galvanized steel clip+PE cap ,stainless steel clip+PE cap Size:42mm Center hole :Center hole :for fxing 2.7mm,3.0mm 3.4mm pins,4mm,5mm

Package Of capacitor discharge (CD) Weld pins :

>> Package

1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.

2. to be your requirements.

>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.

HUIHAO Company Products line:

CD weld pins                 Lacing Anchors
bimetallic pin                Cup head weld pins
Quilting pins                 perforated base pins
self adhesive pins         solar panel mesh clip
all kinds of self locking washers, Dome caps.
