Insulation Jacket Accessories Lacing Anchors hooks washer 316 Stainless Steel

Insulation Jacket lacing anchor hooks washer Introduce :

Product name:removable blankets lacing anchors hooks&washers
Materials: Stainless Steel 304/316/316L
Head size :7/8" for the round base
Hook size :5x11mm
Pin diameter:14ga (2.0mm) ,12ga (2.7mm)
Pin length:1-1/2" ,2-1/2" is in common , other size to be request

Lacing Washer can also be used with a Lacing Ring and a second L100 lacing washer, which are

fastened to the insulation blanket with a tie wire. One advantage with the lacing system is the positive

detention of the lacing wire. The insulation blanket can be loosened for access or repositioning,

without having to worry about the lacing wire falling away from the hooks. It is also advantageous in

maintaining the position of the lacing wire when insulating complex shapes. All L100 Lacing Washers

are stamped "NO AB" to indicate no asbestos, at no additional cost.

Insulation Jacket lacing anchor hooks washer Specification:

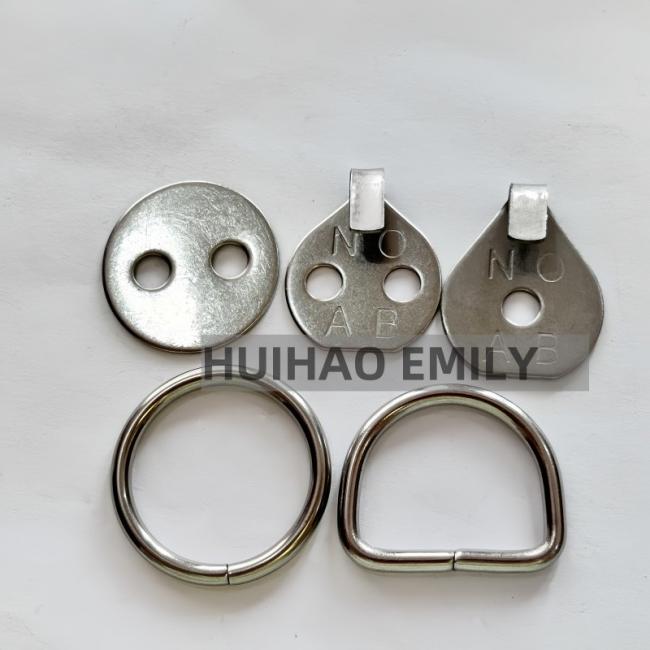

Insulation Jacket lacing anchor hooks washer pic:

Insulation Jacket lacing anchor hooks washer Introduce :

	Lacing anchors  Material :stainless steel  Pin diameter :2mm,2.7mm  Pin length :2-1/2 inch, 4-1/2inch or to be request
quilting pins  Material :stainless steel Pin diameter :2mm,2.7mm Pin length :2-1/2 inch, 4-1/2inch or to be request
	2 holes Lacing hook Material :stainless steel  Thickness :1mm Diameter :22mm surface with NO&AB
Single holes Lacing hook Material :stainless steel Thickness :1mm Diameter :22mm surface with NO&AB
	Lacing washer  Material :stainless steel Thickness :1mm Diameter :22mm with 2 hole in the center
D rings Material :stainless steel  Ring dia :3mm,4mm,5mm type :weld type and non weld type
	O rings  Material :stainless steel Ring dia :3mm,4mm,5mm type :weld type and non weld type

How to use the lacing hook&washers?

1: prepare the insulation blanket or removable cover

2: put the lacing hook washer on blanket, pree the lacing wire through the insulation blanket.
3: install lacing washer and lacing ring with lacing wire
4: ensure firm for hook, washer and rings.
5: install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.

other parts for lacing hook system- lacing anchors, lacing washer, lacing ring and tie wire

Package Of Insulation Jacket lacing anchor hooks washer :

1.HUIHAO company can supply carton and plastic bag ,500pcs,1000pcs or

   to be request

2. express by Fedex ,DHL ,UP is available

   We can supply door to door service

HUIHAO company FAQ :

Q1: Are you factory or trader ?

Yes ,we sell what we manufacture

Q2:How long is your delivery time?

Usually the ship time is within 7-15 days

Q3:What is your quote elements?

The size of product, material with surface treatment and the quantity

Q4:Can you provide samples?is it free or in charge ?

A3: Yes, we can provide sample for we have in stock ,for special sample you need pay the mold fee ,the mold fee will return back you after confirm the mass order

Q5: How can you ensure the quality?

1.we can supply CAD drawing pic for you

2.Our company have ISO certificate

2.We have working on this product for twenty years and we have experience on it ,and we know the point you focus on
