2.7mm Cupped Head Stud Welding Insulation Pins To Fasten Fiberglass Duct Wrap

Price Negotiable

Price: Negotiable

MOQ: 50000pcs

Delivery Time: 10 days after confirm the order

Brand: HUIHAO

Product Description

2.7mm Cupped Head Stud Welding Insulation Pins To Fasten Fiberglass Duct Wrap

Cupped Head Stud Welding Insulation Pins Produce Introduce :

Cupped head stud welding insulation pin is a weld style insulation fastener, these cup

head weld pins are made up of a washer assembled with a pin, they are applied with a

stud welding machine. After the insulation material is ready in place, weld the cup head

weld pins directly through the insulation to the sheet metal, then the insulation work is

finished, so the cup head weld pins is a labor-saving insulation fastener, it is widely

accpeted in insulation markets for used in industrial and commercial applications

Specification of Cupped Head Stud Welding Insulation Pins :

Specification of cupped head stud welding insulation pins
Common specifications	Base dia :25mm,30mm
	Pin dia :2.7mm,.3.0mm,3.4mm
	Pin length :25mm,38mm,50mm,75mm,100mm,120mm,130mm,,150mm,170mm up to 300mm
Material	pin : mild steel,stainlesss steel
	base: mild steel ,stainless steel
Surface treatment	Galvanized plating/copper coated/polished
Product features	Simple construction, high efficiency, saving labors
	Easy welding , firm conjunction between pins and bases
	Sharp points for easy going through any insulation blankets
	Length tolerance ±0.1mm
Production workmanship	Automated production
Packing	Packing can be customized as per requirements Current packing information available upon request.
Application	Being used to fasten insulation to the inside of sheet metal air ducts
Remark	Technical parameters are available upon request

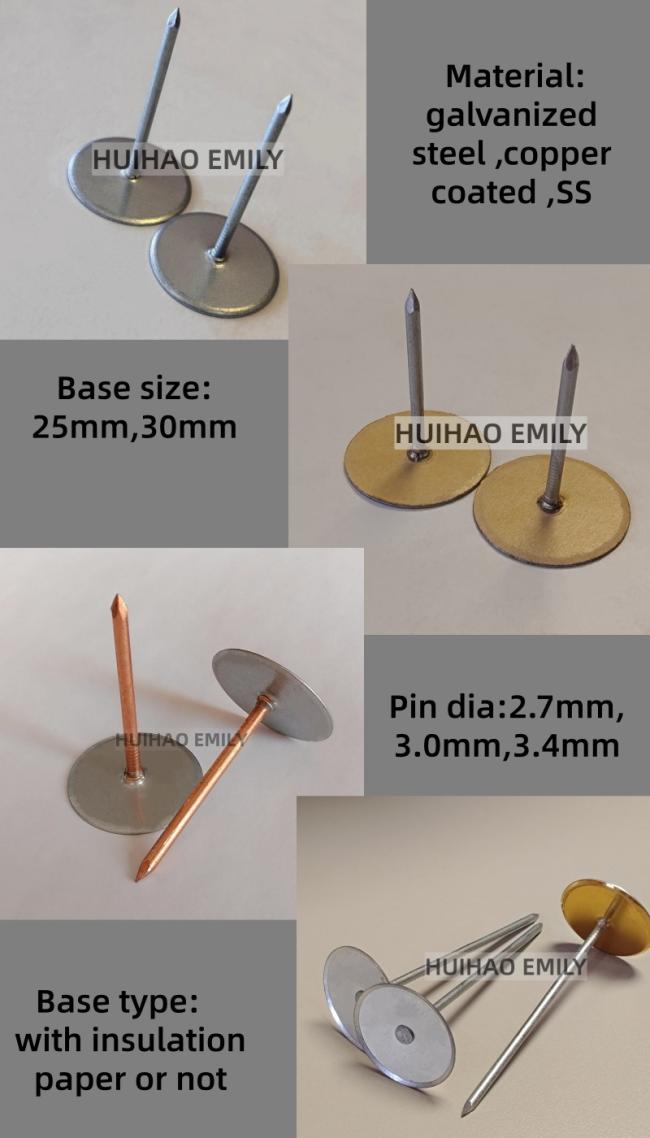

Pic of Cupped Head Stud Welding Insulation Pins :

Feature of Cupped Head Stud Welding Insulation Pins :

BETTER PLATING	weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Quilting Cup Head Insulation Pins are copper plated.
REDUCED DOWN TIME	REDUCED DOWN TIME
STRONGER WELDS	Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
CORROSION RESISTANCE	Plating exceeds current SMACNA standards for corrosion resistance.
CORROSION RESISTANCE	Quilting Cup Head Insulation Pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.
VIBRATIONS	Quilting Cup Head Insulation Pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.

Package of Cupped Head Stud Welding Insulation Pins :

Package of Cupped Head Stud Welding Insulation Pins :

>> Package
1. 1000pcs/2000pcs by carton or pail to be request ,then on pallet.

2. to be your requirements.

>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.

HUIHAO COMPANY

HUIHAO company is a insulation

fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products
is as following :

1.perforated base insulation pins

2.self adhesive pins

3.CD weld pins

4.Bimetallic pin

5.Cup head weld pins

6.Lacing Anchors&Quilting pins &lacing hooks washer

7.all kinds of self locking washers, Dome caps.
