2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer
2.7x50mm Copper Coated Cup Head Insulation Weld Pins With Retaining Washer
Cup Head Insulation Weld Pins Produce Introduce :

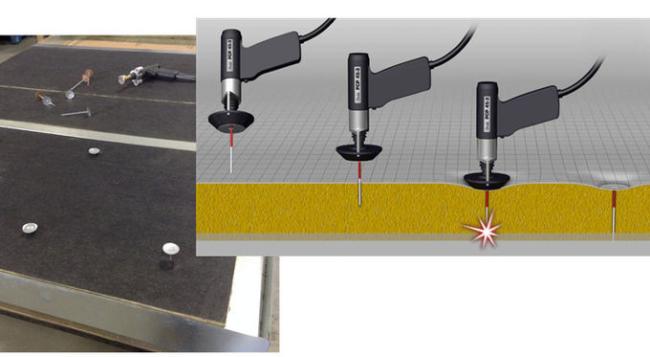

Cup head Insulation weld pin is a weld style insulation fastener, these cup head weld pins are
made up of a washer assembled with a pin, they are applied with a stud welding machine. After
the insulation material is ready in place, weld the cup head weld pins directly through the
insulation to the sheet metal, then the insulation work is finished, so the cup head weld pins
is a labor-saving insulation fastener, it is widely accepted in insulation markets for use in industrial
and commercial applications.
Specification of Cup Head Insulation Weld Pins :
| Specification of cup head insulation weld pins | ||
| Size | Washer dia :25mm,30mm | |
|
Pin dia :2.7m,3.0mm,3.4mm |
||
|
Pin length :25mm,38mm,50mm,75mm,100mm,120mm,130mm,150mm, 170mm up to 300mm |
||
| Material | pin | Stainless steel ,Mild steel ,Copper |
| base | Stainless steel ,High strength galvanized steel ,Copper | |
| surface treatment | Copper or galvanized plating | |
| Product features | Simple construction, high efficiency, saving labors | |
| Easy and firm welding | ||
| Sharp point for easy going through any insulation material | ||
| Base with paper washers are used for aluminum foil faced insulation material | ||
| Pins with tubes are used for tin foil faced insulation material | ||
| Length tolerance ±0.1mm | ||
| Production workmanship | Automated production | |
| Packing | Packing can be customized as per requirements Current packing information available upon request. |
|
| Application | Being used in HVAC,fixing various insulation to air duct work | |
Pic of Cup Head Insulation Weld Pins :
 |

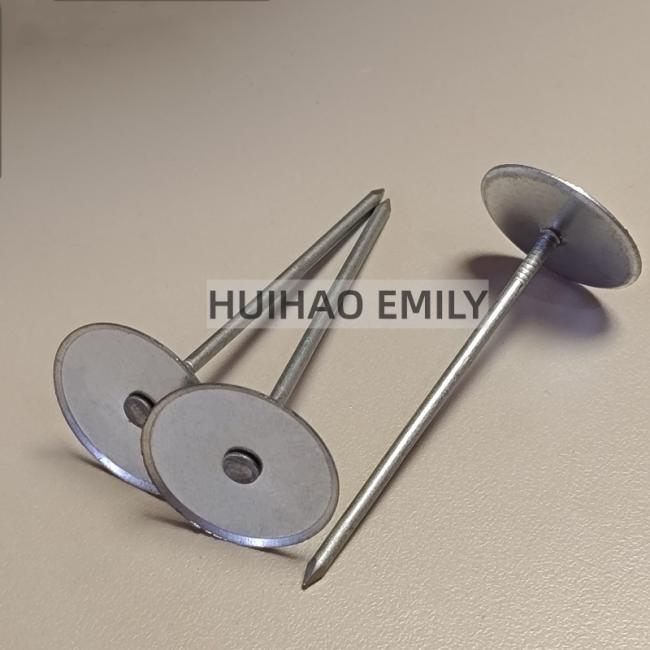

Cup head insulation weld pins
Material :mild steel Surface treatment :galvanized Base size :25mm,30mm Base type:without insulation paper Pin dia :2.7mm,3.0mm,3.4mm, Pin length :25mm-300mm |
|

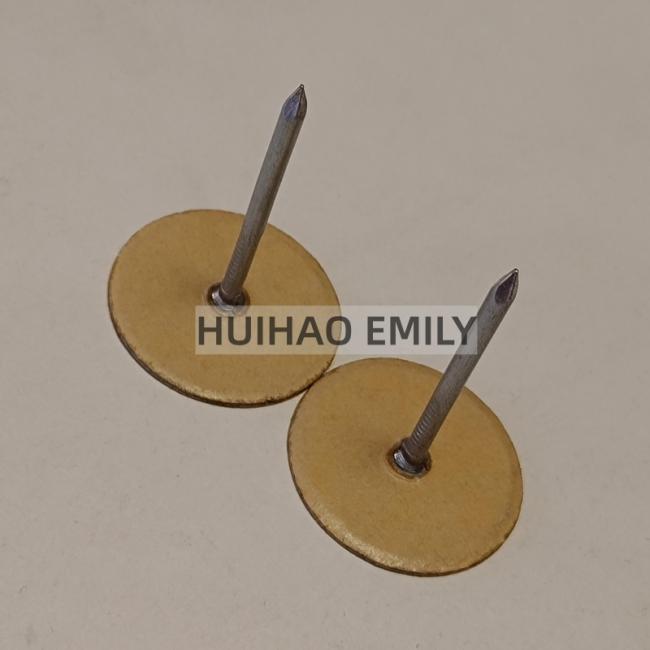

Cup head insulation weld pins
Material :mild steel Surface treatment :galvanized Base size :25mm,30mm Base type:with insulation paper Pin dia :2.7mm,3.0mm,3.4mm, Pin length :25mm-300mm |
 |
 |

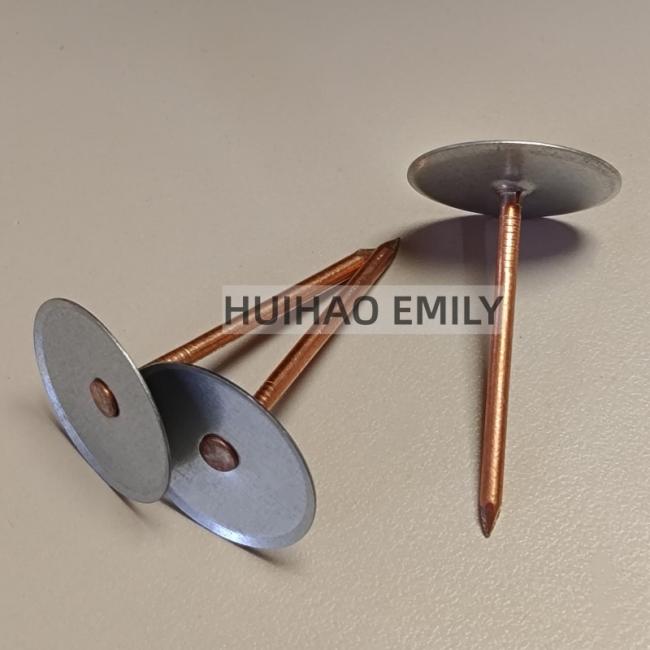

Cup head insulation weld pins
Material :mild steel Surface treatment :coper coated Base size :25mm,30mm Base type:without insulation paper Pin dia :2.7mm,3.0mm,3.4mm, Pin length :25mm-300mm |
|

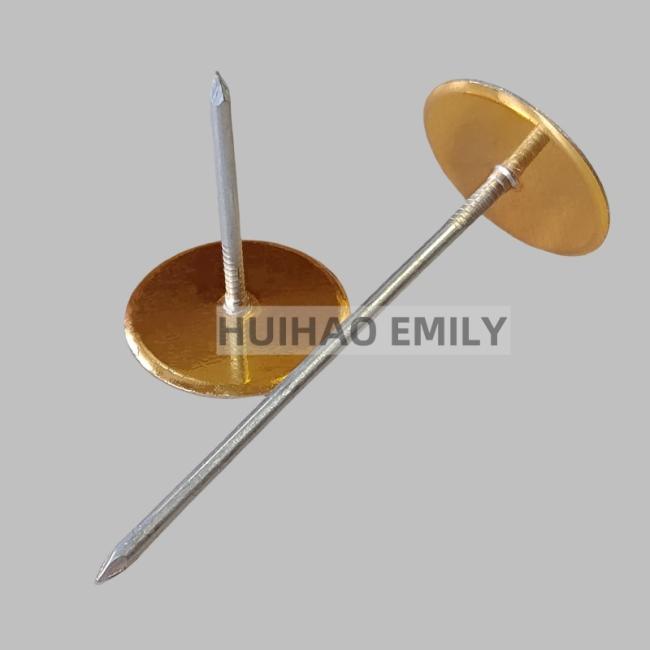

Cup head insulation weld pins
Material :mild steel Surface treatment :galvanized Base size :25mm,30mm Base type:with gold seal Pin dia :2.7mm,3.0mm,3.4mm, Pin length :25mm-300mm |
 |
 |
Recommended for insulation thickness:
| recommended for | pin length before welding |
| 1/2" insulation(all densities) | 12.67mm |
| 1" insulation(1-1/2"ib density) | 17.63mm |
| 1" foam | 25.55mm |
| 1"insulation(3ib densities) | 23.72mm |
| 1-1/2" insulation(all densities) | 28.42mm |
| 2"insulation(1-1/2"-2" ib density) | 37.95mm |
| 2"insulation(3ib densities) | 48.77mm |
| 3"insulation(all densities) | 69.85mm |
| 4" insulation(all densities) | 95.00mm |
Package of Cup Head Insulation Weld Pins :
 |
|
Package of Cup Head Insulation Weld Pins : >> Package 2. to be your requirements. |
HUIHAO COMPANY :
|
HUIHAO company is a insulation fasteners/insulation anchors manufacturing company,
2.self adhesive pins 3.CD weld pins 4.Bimetallic pin 5.Cup head weld pins 6.Lacing Anchors&Quilting pins &lacing hooks washer 7.all kinds of self locking washers, Dome caps. |
 |
