Air Duct Liner 63.5mm Self Stick Insulation Hangers nails In HVAC System

Self Stick Insulation Hangers Nails Produce Introduce :

Self-Sticking Insulation Hangers are used to fasten insulation materials to sheet metal quickly

and easily. Each pin's metal base has a foam adhesive covered with a release paper. Once the

insulation is pierced onto the pin, a locking washer or a domed cap can be installed to hold the

insulation in place. Ideal for sticking onto new or clean sheet metal of insulation construction.

Main benefits of Self Stick Insulation Hanger pins:

• Easy to install
• Support insulation
• Rigid and strong

Specification of Self Stick Insulation Hangers Nails :

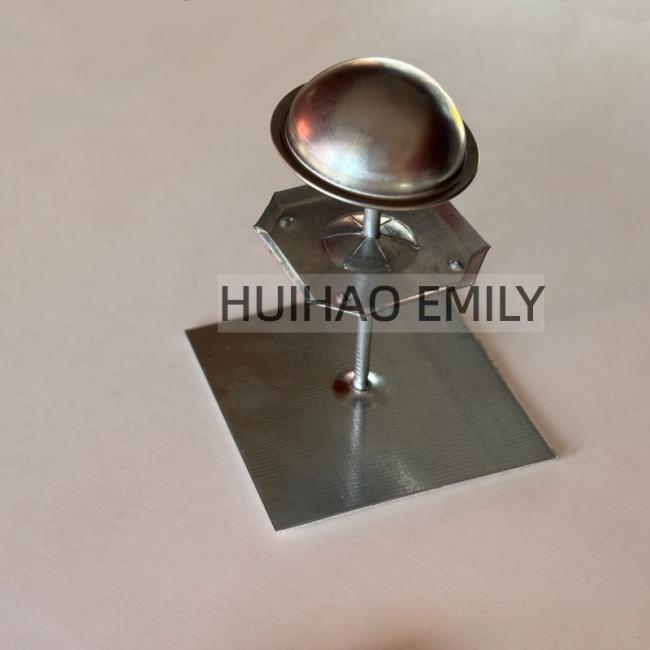

Pic of Self Stick Insulation Hangers Nails :

Fixing Parts of Self Stick Insulation Hanger Nails :

Fixing parts of self stick insulation hanger nails 1.Round type self locking washers 2.Square rype self locking washers  3.Metal dome cap washers 4.Speed clipses with plastic cover

Recommended assembly method :

1.Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.

2.Remove the protective release paper taking care not to touch the adhesive.
3.Place the hanger in the required position and press the base against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength

of adherence is achieved after 24 hours.

Package of Self Stick Insulation Hanger Nails :

Package of Self Stick Insulation Hanger Nails: >> Package 1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet. 2. to be your requirements. >>> Delivery Sample: DHL/EMS/UPS/TNT/EXPRESS Large Order: we recommend you by SEA ,or by AIR if in an emergency.



Most important technical points as follows:

1. why must choose anneaded metal wire?

soft wire is easily for bending when fixing rock wool materials with self locking washer.

2. why we choose 2.7mm or 3mm wire to make the nails?

2.7mm and 3mm thickness wire is standard size for insulation pins. at same time, the pin length

is decide the pin diameter.

3. why we choose hardness metal sheet for making the square base?

hardness metal sheet is more firmly , no-shedding, nondeformable.
