Weld Pins Lacing Anchors Metal Self Locking Washers To Cover The Nail Point
Weld Pins Lacing Anchors Metal Self Locking Washers To Cover The Nail Point
>>>>>> Round Self Locking Washers
Material: stainless steel or galvanized steel or aluminum
Size: 1" or 1-3/16" or 1-1/2" or 2"
Thickness: 28ga (0.4mm)
Self-locking washers are designed to be used with weld pins, insulation-hangers, lacing anchors, etc
| Diameter: | 1" | 1-3/16″ | 1-1/2” |
| Thickness: | 0.015" | 0.015" | 0.015" |
| Plating: | Galvanized | Galvanized | Galvanized |
| Material: | Mild Steel /SS 304 | Mild Steel /SS 304 | Mild Steel /SS 304 |
| Edge: | Beveled or Flat | Beveled or Flat | Beveled or Flat |
- Specify washer sizes are available in special order.
- Special holes sizes are available upon request.

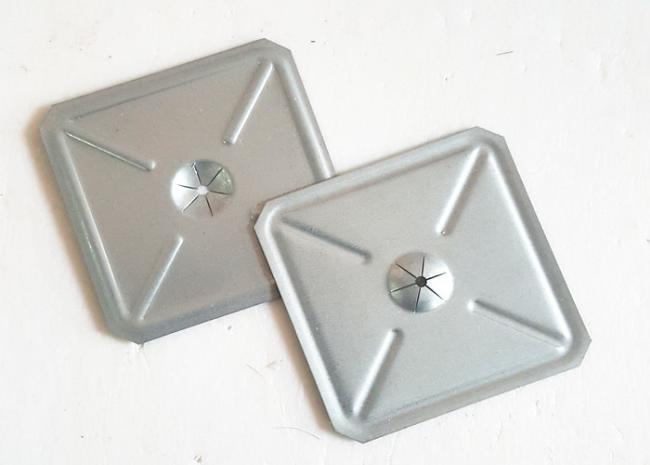

>>>>>> Square Self Locking Washers
Material: stainless steel or galvanized steel or aluminum
Thickness: 28ga (0.4mm)
Self locking washers are designed to be used with weld pins, insulation-hangers, lacing anchors, etc.
| Pin Diameter | 2-1/2" | 1-1/2" | 1-1/4" | 1-1/2" |
| 14 Ga (2mm) | square | square | square | round |
| 12 Ga | square | square | square | round |
| 10 Ga | square | square | square | round |
| 3mm | square | square | square | round |
| Material | Stainless steel as standard |
| Colors | White, grey or black |
| d1 | 40mm |
| d2 | 2mm, 2,7mm, 3mm,4mm, 5mm, 6mm |

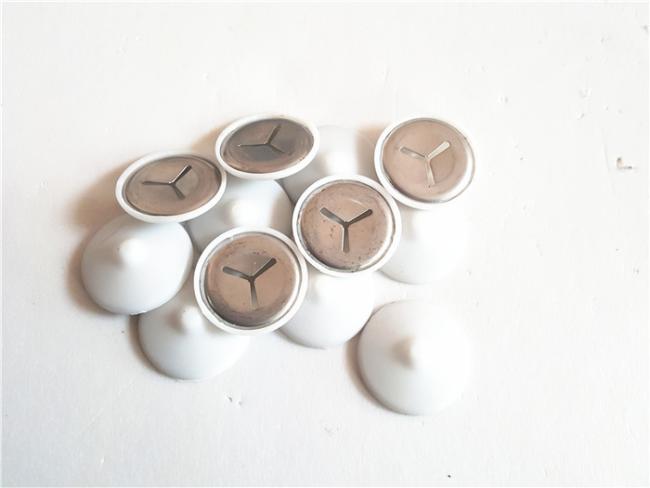

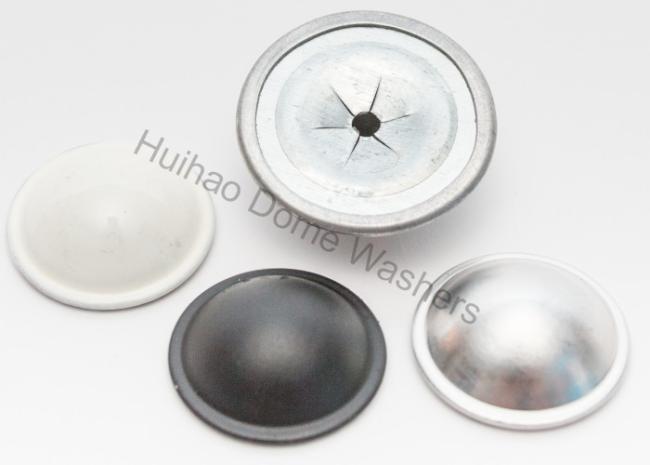

>>>>>> self locking washer-Dome Cap Washers
Dome washers are designed to be used where appearance and safety are factors when installing insulation, or fabricating
blankets or pads. The washers are used to cover the nail point on weld pins, hangers, lacing anchors & quilt pins.
| Material | galvanized, aluminum and stainless steel |
| Finish: | brushed aluminum, white plastic coating, black plastic coating etc |
| A: | 20mm,22mm,25mm,30mm,38mm |
| B: | 10 Ga Or 12 Ga Or 14 Ga |
| C: | 9/32" (7.2mm) |
images of self locking washers
Package Of The Metal Self Locking Washers
1. Round Self-locking Washers: 2000 pcs per bag, 5 bags per carton.
2. Square Self-locking Washers: 1000 pcs per bag, 5 bags per carton.
3. Self-locking Insulation Clips: 1000 pcs per bag, 4 bags per carton.
4. Self-locking Dome Cap Washers: 1000 pcs per bag, 4 bags per carton.
5.as your requirement.
