Duct Liner Steel Cupped Head Weld Pins For Auto Welding Resistance Equipment
Duct Liner Steel Cupped Head Weld Pins For Auto Welding Resistance Equipment
Description Of The Duct Liner Steel Cupped Head Weld Pins:
Duct Liner Steel Cupped Head Weld Pins are welded through the insulation, allowing the fabrication to be done in one easy step, and the head of the Cupped Head Weld Pins is attached to the nail, so there is no need to add a washer.
If you are in need of cup head weld pins for duct insulation work, please feel free to ask me a price or sample, our cup head weld pins are with good quality, any my email address is cherry@huihaomesh.com
| Item | Duct Liner Steel Cupped Head Weld Pins | |||
| Brand | Huihao Custom | |||
| Material | Mild steel | |||
| Plating | Zinc coating is standard for nails | Zinc coating is standard for the head | ||
| Copper coating is standard for nails | ||||
| Bevel | Head edge is beveled to prevent cutting of insulation material | |||
| Head with paper | Available, for welding through aluminum foil faced insulation materials | |||
| Nail with tubes | Available, for welding through tin foil faced insulation materials | |||
| Head Size | 1-1/2" (38mm), 1-3/16" (30mm), 1" (25mm) | |||
| Head Thickness | 0.5mm or 0.4mm | |||
| Nail Diameter | 0.135" (3.4mm), 0.106"(2.7mm), 0.08"(2.0mm) | |||
| Nail Length | as your request | |||

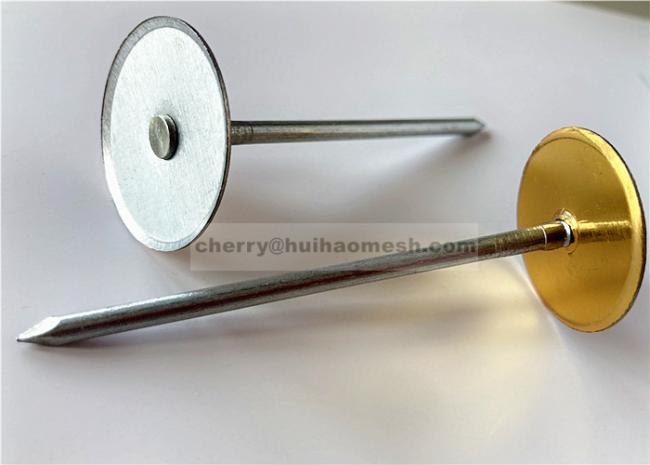

Detailed Images Of The Duct Liner Cupped Head Weld Pins:
|
|
Item: Cupped Head Weld Pins Base Material: Galvanized Steel Base Size: 30mm Nail Material: Galvanized Steel Nail Diameter: 2.7mm, 3.0mm, 3.4mm Nail Length: 25-300mm If special requirement for the size and material, it could be customized according to your requirement. |
 |
Item: Cupped Head Weld Pins Base Material: Galvanized Steel Base Size: 30mm Nail Material: Copper Coated Mild Steel Nail Diameter: 2.7mm, 3.0mm, 3.4mm Nail Length: 25-300mm If special requirement for the size and material, it could be customized according to your requirement. |
 |
Item: Cupped Head Weld Pins With Paper Washers Base Material: Galvanized Steel Base Size: 30mm Nail Material: Copper Coated Mild Steel Material Nail Diameter: 2.7mm, 3.0mm, 3.4mm Nail Length: 25-300mm If special requirement for the size and material, it could be customized according to your requirement. |
|
|
Item: Cupped Head Weld Pins With Insulated Film Washers Base Material: Galvanized Steel Base Size: 30mm Nail Material: Copper Coated Mild Steel Material Nail Diameter: 2.7mm, 3.0mm, 3.4mm Nail Length: 25-300mm If special requirement for the size and material, it could be customized according to your requirement.
|
Application of Capacitor Discharge Cupped Head Weld Pins:
FAQ Of Huihao Hardware Mesh Product Limited.
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm is supported.
4. Can you accept small orders?
Yes, for common size, we could accept small orders.
5. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
