Capacitor Discharge Welder Zinc Coat Steel Stud Welding Pins With Self Locking Dome Cap Washer Fixing Rock Wool

Zinc Coat steel Stud Welding Pins with Powerbase For Capacitor Discharge Welder

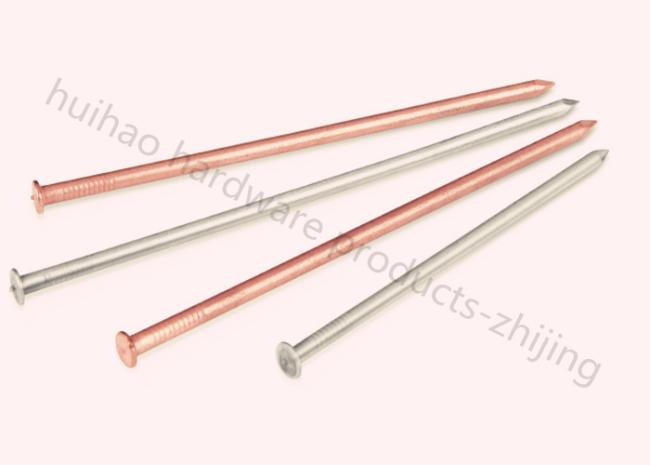

Stud Welding Pins include two types: copper plated weld pins and galvanized coating weld insulation pins.

Stud Welder Pins specification as follows:

A specialty type of Capacitor Discharge (CD) pin, the Powerbase pin can be welded through mill scale, rusted or painted

surfaces, without having to grind/clean the base metal. After the pin is welded to the surface, a self-locking washer is

installed to secure the insulation.

1)ship use insulation pins ,insulation nails,insulation washer

2) Sound insulation cotton special welding nail

3) Plate welding nail

4) screw Stud welding nail

5)we can also provide insulation pins use welding machine and screw stud welding machine

6) shear studs

7) aluminum insulation pins,stainless steel insulation pins,self-adhesive insulation pins

Stud Welding Pins packing details:

we can't list every size for packing, we can list some sizes for indoemation

Capacitor Discharge CD Stud Welder Welding Machine M3-M8 220V

accessories Custom Self Locking Washers Caps For Insualtion Pins Diameter 20mm,30mm,40mm

metal type self locking washers and Self Locking dome Caps

self locking washers Hole Diameter:

Self Locking Washers – 10GA( 3.4mm), 3mm, 12GA( 2.7mm) 14GA(2.0mm)

Available Sizes (Customize Dimensions or Materials available upon request) :

Self-Locking washers are used with Capacitor Discharge (CD) pins and Insulation Hangers. Washers are available in 10G

and 12G and 14 GA Inner diameter. Washers in both sizes are 1-1/2” on the outer diameter and made of stainless steel.

Self-Locking round washers are a great fastener to keep insulation in place and offer a profile that minimizes tears in insulation facing
