Wedge Wire Screen Basket For Pulping Making, Slot Wire Johnson Wire Screen Basket
Wedge Wire Screen Basket For Pulping Making, Slot Wire Johnson Wire Screen Basket
Details of Wedge Wire Screen Basket
___________________________________________________________________________________
To mechanically separate liquids and solid particles, rotary wedge wire drum screens are used. Their construction is based on wire tubes with supporting
and reinforcing structure. The rotary sieves have been prepared to work uninterruptedly, maintaining high efficiency and at the same time low consumption
of energy. The drum screen is also self-cleaning.
Details of wedge wire screen basket
___________________________________________________________________________________
AISI (430, 304, 321, 316Ti, 317) Duplex A 669
Standard wire Sb type, special wire Sbb type
Standard: Ø – 258, 267, 356, 405, 630, 640, 900, 916, 1230mm;
|
OD Range |
Min 68mm, the biggest according to clients’ request |
||||||
|
ID Range |
MIN 60mm, the biggest according to clients’ request |
||||||
|
Length Range |
Up to 6000 mm |
||||||
|
Slot Direction |
Radial Direction, Axial Direction |
||||||
|
Slot Range |
20 micron to 3000 micron (Tolerance:+-5 micron) |
||||||
|
Wedge Wire |
0.5x1.5 |
0.75x1.5 |
1x2 |
1.5*2 |
2x3 |
2*4 |
3*5 |
|
Support Rod |
1.5x2.5 2x3 |
1.5x2.5 2x3 |
1.5x2.5 2x3 |
1.8*2.5 2x3 |
2x3 2x4 3x5 3x6 3x10 4x7 |
2x4 3x5 3x6 3x10 4x7 5x6 |
3x5 3x6 3x10 4x7 5x6 5x8 |
|
End Finishing |
Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc |
||||||
|
Note |
Customized According To Requirement |
||||||

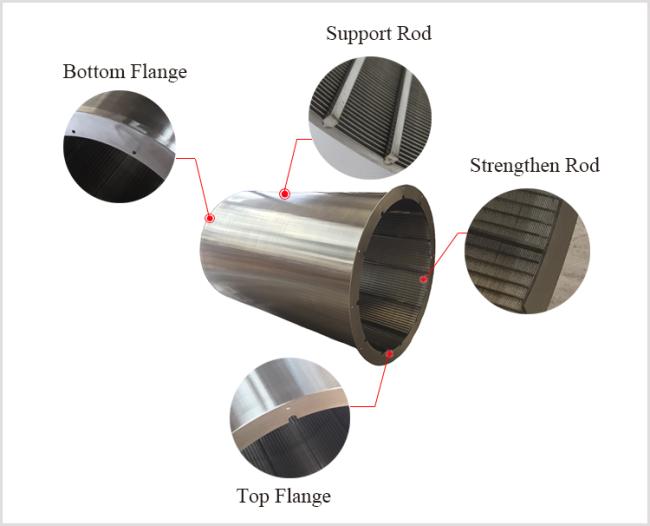

images of wedge wire screen basket
___________________________________________________________________________________
Features
1. High efficiency and high performance
2. Easy to move and install
3. Easy and convenient operation
4. Strong boby
Reversed profile
Normal construction of slot tubes allows for flow out to in filtration. However, flow-in -to-out constructions are also possible.
This construction can also be used when the slot tube is used as support tube for another filter medium, so that only the wedge is in contact
with the medium to increase the open area.
Variable slot opening
For special purposes variable slot openings are possible for all diameters.
Continuous cylinders
By using a lot of support profiles, an axial slot can be obtained.
These filter elements are called continuous cylinders.
