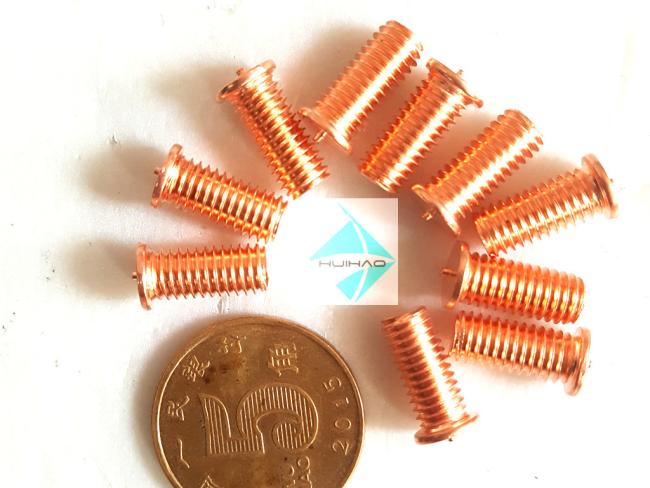

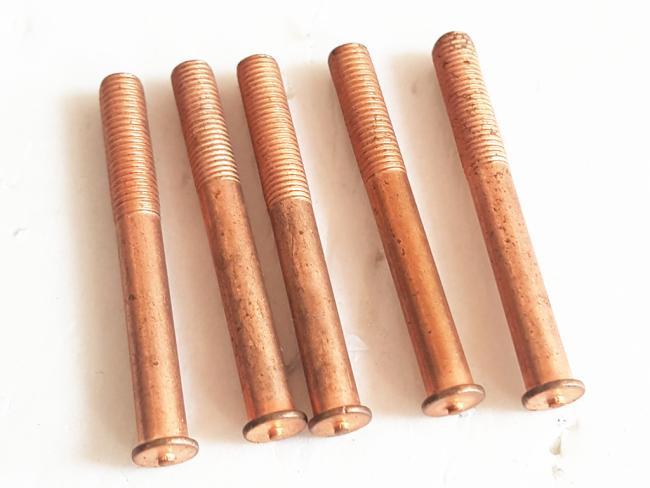

Stainless Steel Annular Grooved Stud Welding Pins , Copper Plated Mild Steel M5 - M12 Stud Welder Pins With Threaded
Annular Grooved Stud Welding Pins , M5 - M12 Stud Welder Pins With Threaded
Capacitor Discharge Annular Grooved Stud Welding Pins , Stud Welder Pins With Threaded is a semi-automatic welding process.
The process is generally used where small diameter fasteners (under M6) are required as a permanent fixing to thin gauge metal.

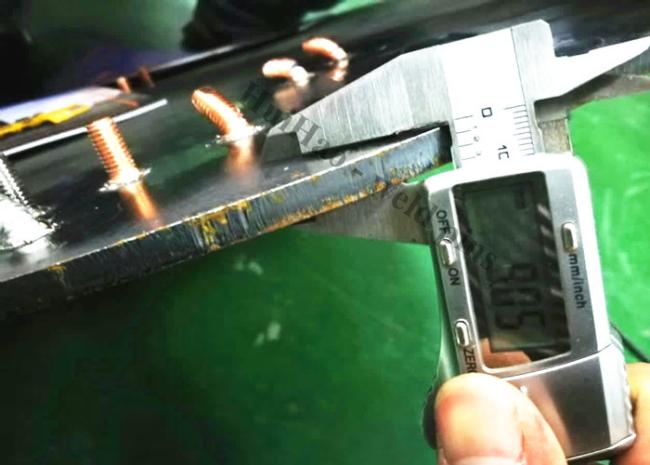

With the CD welding process there is no form of distortion to the parent material.
supply Mild Steel CD Weld Studs, Stainless Steel Weld Studs and Aluminium Weld Studs.
|
Capacitor Discharge Annular Grooved stud Welding Pins , Stud Welder Pins With Threaded Specifications / features |
|||||
|
MATERIAL |
FINISH |
"D" |
"L" |
MILD STEEL / STAINLESS STEEL "F" |
ALUM "F" |
|
Low Carbon Steel |
Mild Steel pins are copper coated. Other coatings quoted upon request. |
.1875 (3/16") |
7/8" |
.250 | .250 |
COMPATIBILITY: All Capacitor Discharge Annular Grooved stud Welding Pins , Stud Welder Pins With Threaded are
compatible and recommended for use with all brands of CD stud welding equipment.
FLANGED CAPACITOR DISCHARGE (CD) stud welding pins - IMPERIAL
| D | FD | Min. L |
| 4-40 | 0.187 | 0.250 |
| 6-32 | 0.218 | 0.250 |
| 8-32 | 0.250 | 0.250 |
| 10-32 | 0.250 | 0.250 |
| 10-24 | 0.250 | 0.250 |
| 1/4-20 | 0.312 | 0.375 |
| 5/16 | 0.375 | 0.500 |
| 3/8-16 | 0.437 | 0.500 |
NON FLANGED CAPACITOR DISCHARGE (CD) STUD welding pins
|
D |
Max. BD |
Min. L |
|
4-40 |
0.116 |
0.250 |
|
6-32 |
0.142 |
0.250 |
|
8-32 |
0.168 |
0.250 |
|
10-32 |
0.194 |
0.250 |
|
10-24 |
0.194 |
0.250 |
|
1/4-20 |
0.252 |
0.375 |
|
5/16-18 |
0.315 |
0.500 |
FLANGED - NO THREAD CAPACITOR DISCHARGE (CD) STUDS
| D | FD | Min. L |
| 3/32 | 0.174 | 0.250 |
| 0.115 | 0.203 | 0.250 |
| 1/8 | 0.187 | 0.250 |
| 0.141 | 0.218 | 0.250 |
| 5/32 | 0.250 | 0.250 |
| 0.161 | 0.250 | 0.250 |
| 3/16 | 0.250 | 0.250 |
| 0.215 | 0.312 | 0.250 |
| 1/4 | 0.312 | 0.375 |
| 0.273 | 0.375 | 0.375 |
| 5/16 | 0.375 | 0.500 |

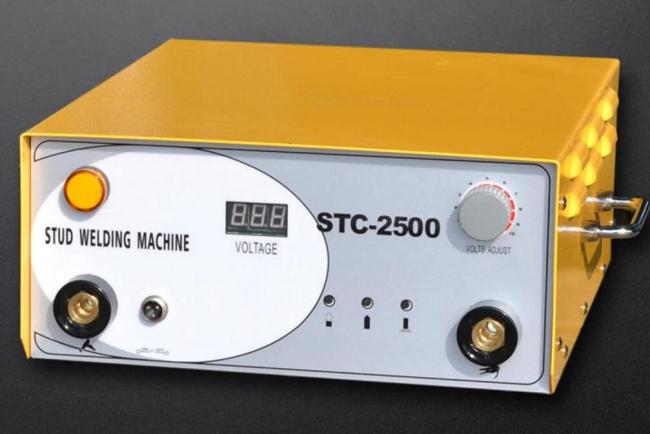

Capacitor Discharge CD Stud Welder Welding Machine M3-M8 220V
Weldable material: Mild steel, stainless steel, Aluminum
Pin range: 14Gauge-10Gauge
Input voltage: 110V 50Hz or 220V 60Hz
Weld Voltage: 35-198V
Capacitance: 66000μF
Packaging & Shipping of the CD weld studs
1 Standard exported package: Internal anti-collision protection, external export wooden box packaging.
2 Shipping by Fedex, by air, by sea according to customers' requirements to find the most suitable way,
3 Responsible for the damage during the shipping process will change the damage part for you for free.
4 Supply with the suitable voltage input and source plug according to your country requirements.
Our Services
All kinds of size, head type, material are available. We also can produce various kinds of welding stud as per customer's
design and samples. Welcome to contact with us!
