3mm x 150mm Galvanized Steel Capacitor Discharge Weld Pins Used For A CD Welder
3mm x 150mm Galvanized Steel Capacitor Discharge Weld Pins Used For A CD Welder
>>> Introduction To The Capacitor Discharge Weld Pins
- The pins are primarily designed as welded fasteners to secure blanket and board insulation to metal heating and air conditioning ducts, ovens, tanks and other hot or cold equipment.
- CFN pins have a weld tip designed for the Capacitors Discharge welding process, but may also be welded with the Short Cycle Drawn Arc weld process. They are designed to be welded to thin gauge sheet material using tip ignition according to the capacitors discharge welding process.
- Other grades, i.e. AISI 316 (A4), AISI 310 are available on request
- Copper coating is standard on mild steel pins.
- Self-Locking washers are available in a variety of sizes, shapes and materials.
specification of Capacitor Discharge Weld Pins
10 Ga. (0.135") Capacitor Discharge Weld Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 10 Ga. (0.135") |
| Length | 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" 9" |
12 Ga. (0.105") Capacitor Discharge Weld Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 12 Ga. (0.105") |
| Length | 3/4" 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" |
14 Ga, 2mm (0.080") Capacitor Discharge Weld Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 14 Ga, 2mm (0.080") |
| Length | 3/4" 1" 1-1/2" 2" 2-1/2" 3" |
3mm Capacitor Discharge Weld Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 3mm |
| Length | 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm |

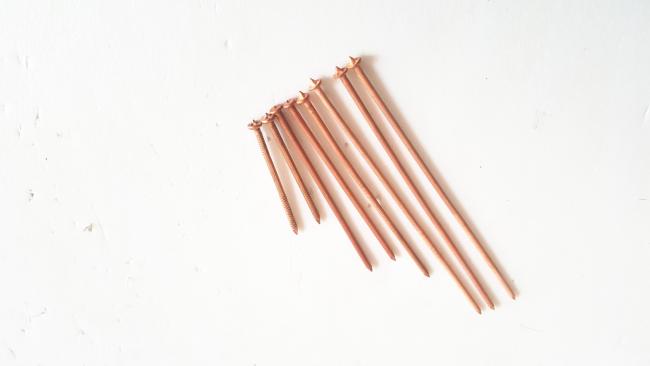

images of Capacitor Discharge Weld Pins
---> Length of this style pin should exceed the thickness of the insulation, in order to securely attach the self-locking washer.
---> Nail point is standard - available with "blunt end" as special order.
>>> Application Of The Capacitor Discharge Weld Pins
Being in use of car manufacturing, train stations, Industrial building, shipbuilding, household adornment, high stress environment
such as off road construction, large expansion bridges, skyscrapers, power plant, military defense vehicles, and equipment in high
temperature environment.
