Copper Coated Capacitor Discharge Weld Pins To Secure Air Conditioning Ducts
Copper Coated Capacitor Discharge Weld Pins to Secure Air Conditioning Ducts
>>> Introduction To The Capacitor Discharge Weld Pins
Capacitor Discharge Weld Pins are used for attaching insulation to various metals, with the use of a CD welder. After the
pin is welded in place, the insulation is impaled on the pin and secured with a self-locking washer.
>>> SPECIFICATION OF CAPACUTOR WELD PINS
10 Ga. (0.135") CD Capacitor Discharge Weld Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 10 Ga. (0.135") |
| Length | 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" 9" |
12 Ga. (0.105") CD Capacitor Discharge Weld Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 12 Ga. (0.105") |
| Length | 3/4" 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" |
14 Ga, 2mm (0.080") CD Capacitor Discharge Weld Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 14 Ga, 2mm (0.080") |
| Length | 3/4" 1" 1-1/2" 2" 2-1/2" 3" |
3mm CD Capacitor Discharge Weld Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 3mm |
| Length | 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm |
---> Length of this style pin should exceed the thickness of the insulation, in order to securely attach the self-locking washer.
---> Nail point is standard - available with "blunt end" as special order.

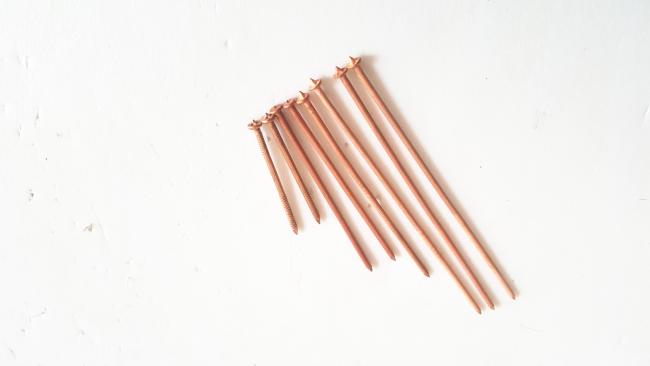

>>> Images of capacitor discharge weld pins
>>> Application Of The Capacitor Discharge Weld Pins
CD Capacitor Discharge navy weld pins are used specifically by the shipbuilding / offshore industry such as Cable, Pipe and
Trapeze Hangers, Tubing Spacers, Stack Studs and Navy Weld Studs.
