M6 - M8 Grounding Stud Welder Pins To Make Electrical Contact In Automotive

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: 5-8 work days

Brand: Huihao

Product Description

m6 - m8 Grounding Stud Welder Pins Used To Make Electrical Contact In Automotive

>>> Introduction To The Grounding Stud Welder Pins

Grounding Stud Welder Pins are designed to be welded to thin gauge sheet material using tip ignition according to the capacitors discharge welding process.
Capacitor Discharge (CD) welder studs are available in many different sizes, from a base diameter of a 2 mm stud up to 12 mm.
Standard material for CD welder Studs are: Copper Plated Steel, Stainless Steel, Aluminum
The stud flange is designed according to EN ISO 13918.
Studs made of steel 4.8 are protected against corrosion by copper coating. (Thickness : 3 to 5 µm)

Specification of Grounding Stud Welder Pins

Material: Aluminum, Copper Plated Steel, Stainless Steel
M3	M4	M5	M6	M8	M10
M3×6mm	M4×6 mm	M5×6 mm	M6×8 mm	M8×10 mm	M10×15 mm
M3×8 mm	M4×8 mm	M5×8 mm	M6×10 mm	M8×12 mm	M10×20 mm
M3×10 mm	M4×10 mm	M5×10 mm	M6×12 mm	M8×15 mm	M10×25 mm
M3×12 mm	M4×12 mm	M5×12 mm	M6×15 mm	M8×18 mm	M10×30 mm
M3×15 mm	M4×15 mm	M5×15 mm	M6×16 mm	M8×20 mm	M10×35 mm
M3×16 mm	M4×16 mm	M5×16 mm	M6×18 mm	M8×22 mm	M10×40 mm
M3×18 mm	M4×18 mm	M5×18 mm	M6×20 mm	M8×25 mm	M10×45 mm
M3×20 mm	M4×20 mm	M5×20 mm	M6×22 mm	M8×30 mm	M10×50 mm
M3×22 mm	M4×22 mm	M5×22 mm	M6×25 mm	M8×35 mm
M3×25 mm	M4×25 mm	M5×25 mm	M6×30 mm	M8×40 mm
M3×30 mm	M4×30 mm	M5×30 mm	M6×35 mm	M8×45 mm
M3×35 mm	M4×35 mm	M5×35 mm	M6×40 mm	M8×50 mm
M3×40 mm	M4×40 mm	M5×40 mm	M6×45 mm
M3×45 mm	M4×45 mm	M5×45 mm	M6×50 mm
M3×50 mm	M4×50 mm	M5×50 mm

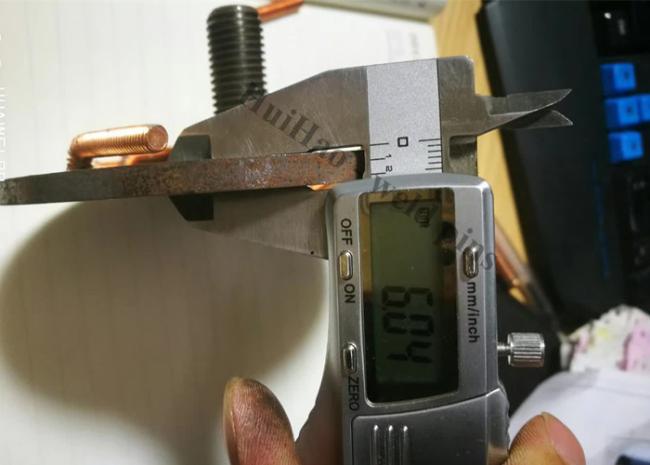

>>> Detailed Image Of The Grounding Stud Welder Pins

Advantages of Grounding Stud Welder Pins

Welding Process becomes Fast and Time Saving
Saves Material as the component to which the studs are welded is not weakened by drilling
Plate Thickness can be reduced
Saves Labor Increase Design and Production Flexibility
Improved quality and wider choice of metals etc.

Grounding Stud Welder Pins Used In
