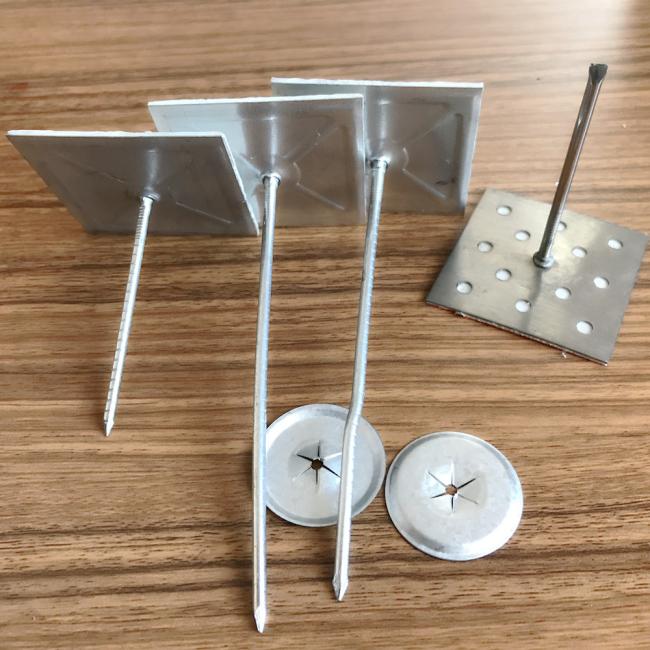

Galvanized Steel Rock Wool Stick Insulation Pins With 50mm Square Washer Base

Detail Specification Of Insulation Stick Pins

• Material:Galvanized Steel, Aluminum, Stainless steel

• Usage:Air Conditioner

• Nail Length:25mm - 165mm (1" to 6 1/2")

• Nail Diameter:Dia 2.7mm (12GA)

• Base Size:50mmx50mm (2"X2")

• Base Material Thickness:0.4mm

• Lock Washer Size: all kinds of sizes and shapes.

• Lock Washer Thickness:0.4mm

• Specification:Designed for different rectangle air duct

The length of the Self Adhesive Insulation Pins also could be customized .

Application Of Insulation Stick Pins

Duct-lining
Ducts of air-conditioner
Glass-wooland rock-wool in soundproofing works

The pins could have washers together

Advantages of the Insulation Stick Pins

1. Environmentally-friendly

2. Light, dust free, fire retardant and easy to install

3. Heat reflection, heat insulation, sound insulation, counter radiation, counter vibration and shielding

4. During Summer: moisture barrier, sun protection, waterproof, energy saving consumed by cool air conditioning

5. During Winter: heat protection, remarkable energy saving consumed by warm air conditioning

APPLICATION of Insulation Stick Pins

Best results are obtained when ambient temperature is above 40° F at the time of application. Remove the release paper from

the base plate and apply hanger to a suitable flat surface.

A firm straight, forward pressure should be used. Do not twist. Due to the quick-tack nature of the adhesive, it is very important

that the release paper not be removed until ready to apply the hanger.

Insulation may be applied immediately after properly securing the hanger. Hangers should be stored at 75° F and 50% relative

humidity. It is important that stock be rotated. Shelf life is estimated at 2 years if stored as recommended
