180MM Width Perforated Metal Grip Strut Grating For Anti Skid Walkway Stairs
180MM Width Perforated Metal Grip Strut Grating For Anti Skid Walkway Stairs
Perforated Metal Grip Strut Grating are manufactured with welded end carrier plates, pre-punched with holes, which
allow the treads to be bolted to the stair stringers.
Perforated Metal Grip Strut Grating provides a defined visible nosing. Where increase visibility and safety are required,
specify products with supplementary cast abrasive nosings.
|
Material |
hot rolled, cold rolled, aluminum, galvanized plate, stainless steel panel etc. |
|
Hole patterns |
crocodile mouth, round raised hole, tears shape etc. |
|
Thickness |
generally 2mm, 2.5mm, 3.0mm |
|
Height |
20mm, 40mm, 45mm, 50mm, customized |
|
Length |
1m, 2m, 2.5m, 3.0m, 3.66m |
|
Production technique |

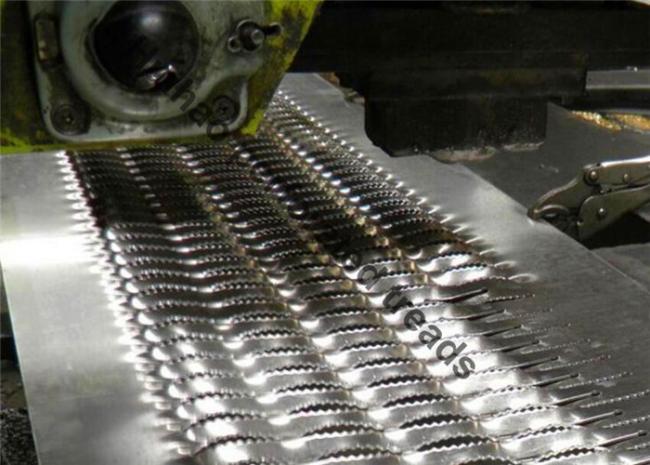

punching, cutting, bending, welding |
>>>Crocodile mouth Perforated Metal Grip Strut Grating
|
2 Diamond / 4-3/4" Width |
|||||
|---|---|---|---|---|---|
|
Diamond Pattern |
Width |
Channel Depth |
Pre-galvanized |
Aluminum |
Stainless |
|
2 Diamonds |
4-3/4" |
1-1/2" |
14 Ga., 12 Ga. |
12 Ga. (.080"), 10 Ga.(.100") |
N/A |
|
4-3/4" |
2" |
14 Ga., 12 Ga. |
12 Ga. (.080"), 10 Ga.(.100") |
16 Ga. (.062") |
|
|
4-3/4" |
2-1/2" |
14 Ga., 12 Ga. |
12 Ga. (.080"), 10 Ga.(.100") |
N/A |
|
|
3 Diamond / 7" Width |
|||||
|---|---|---|---|---|---|
|
Diamond Pattern |
Width |
Channel Depth |
Pre-galvanized |
Aluminum |
Stainless |
|
3 Diamonds |
7" |
1-1/2" |
14 Ga., 12 Ga. |
12 Ga. (.080"), 10 Ga.(.100") |
N/A |
|
7" |
2" |
14 Ga., 12 Ga. |
12 Ga. (.080"), 10 Ga.(.100") |
16 Ga. (.062") |
|
|
7" |
2-1/2" |
14 Ga., 12 Ga. |
12 Ga. (.080"), 10 Ga.(.100") |
N/A |
|
|
7" |
3" |
12 Ga. |
12 Ga. (.080"), 10 Ga.(.100") |
N/A |
|
|
4 Diamond / 9-1/2" Width |
|||||
|---|---|---|---|---|---|
|
Diamond Pattern |
Width |
Channel Depth |
Pre-galvanized |
Aluminum |
Stainless |
|
4 Diamonds |
9-1/2" |
1-1/2" |
14 Ga., 12 Ga. |
12 Ga. (.080"), 10 Ga.(.100") |
N/A |
|
9-1/2" |
2" |
14 Ga., 12 Ga. |
12 Ga. (.080"), 10 Ga.(.100") |
16 Ga. 304 & 316L |
|
|
9-1/2" |
2-1/2" |
N/A |
12 Ga. (.080"), 10 Ga.(.100") |
N/A |
|
|
9-1/2" |
3" |
12 Ga. |
12 Ga. (.080"), 10 Ga.(.100") |
N/A |
|
|
5 Diamond / 11-3/4" Width |
|||||
|---|---|---|---|---|---|
|
Diamond Pattern |
Width |
Channel Depth |
Pre-galvanized |
Aluminum |
Stainless |
|
5 Diamonds |
11-3/4" |
1-1/2" |
14 Ga, 12 Ga. |
12 Ga. (.080"), 10 Ga.(.100") |
N/A |
|
11-3/4" |
2" |
14 Ga., 12 Ga. |
12 Ga. (.080"), 10 Ga.(.100") |
16 Ga. 304 & 316L |
|
|
11-3/4" |
2-1/2" |
14 Ga., 12 Ga. |
12 Ga. (.080"), 10 Ga.(.100") |
N/A |
|
|
11-3/4" |
3" |
12 Ga. |
12 Ga. (.080"), 10 Ga.(.100") |
N/A |
|
|
8 Diamond / 18-3/4" Width |
|||||
|---|---|---|---|---|---|
|
Diamond Pattern |
Width |
Channel Depth |
Pre-galvanized |
Aluminum |
Stainless |
|
8 Diamonds |
18-3/4" |
1-1/2" |
14 Ga., 12 Ga. |
10 Ga. (.100") |
N/A |
|
18-3/4" |
2" |
14 Ga., 12 Ga. |
10 Ga. (.100") |
N/A |
|
| 18-3/4" | 2-1/2" | 14 Ga., 12 Ga. | 10 Ga. (.100") | N/A | |
| 18-3/4" | 3" | 14 Ga., 12 Ga. | 10 Ga. (.100") | N/A | |
| 10 Diamond / 24" Width | |||||
|---|---|---|---|---|---|
| Diamond Pattern | Width | Channel Depth | Pre-galvanized | Aluminum | Stainless |
| 10 Diamonds | 24" | 2" | 14 Ga., 12 Ga. | N/A | N/A |
| 24" | 3" | 14 Ga., 12 Ga. | N/A | N/A |
|
>>>Huihao-Round hole Perforated Metal Grip Strut Grating
| 3 Holes 7" Width, 5 Holes 10" Width, 6 Holes 12" Width, 10 Holes, 18" Width | ||||
| Material | galvanized steel | Aluminum | Stainless | |
| Gauge | 13Ga, | 11Ga | 0.125” | 16Ga, 14Ga |
| Channel Depth | 1-1/2", 2" | 1-1/2", 2", 3" | 2" | 2" |
| Width | 7", 10", 12", 18" | 7", 10", 12" | 7", 10", 12", 18" | |
| Hole number | 3, 5, 6, 10 Holes | 3, 5, 6 Holes | 3, 5, 6, 10 Holes | |
| 13 Holes, 24", 16 Holes, 30" Width | ||
| Material | galvanized steel | galvanized steel |
| Gauge | 11Ga. | 11Ga |
| Channel Depth | 2", 3" | 2", 3", 4" |
| Width | 24" | 30" |
| Hole number | 13 Holes | 16 Holes |
safety grid stand out for its anti-slip serrated surface qualities. It is very well suited to the automotive, construction and
industrial sector.
Maximum lengths:
- Untreated or galvanised steel: 6,000 mm.
- Untreated or pickled 304 or 316 stainless steel: 2,000 mm.
- Aluminium: 6,000 mm.

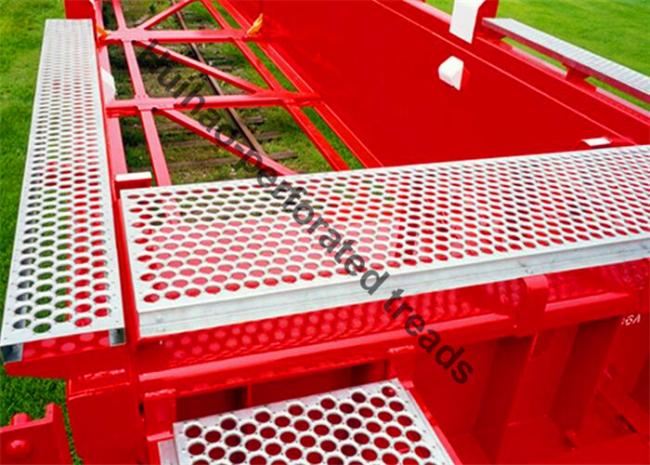

Correct installation way makes good use of Perforated Metal Grip Strut Grating
