Stainless Steel Architectural Metal Screen For Interior And Exterior Decoration
Stainless Steel Architectural Metal Screen For Interior And Exterior Decoration
Introduction To The Architectural Metal Screen
architectural metal screen With beautiful colors, fashionable patterns, concise style, good function, our architectural metal screens
have been adopted by more and more designers and architects used as interior and exterior decoration. Such as space divider,
stair balustrades, wall cladding in office building, shopping mall or other special architectures.
- Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
- Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.
- Surface treatment: anodized, etc.
- Color: original metallic color or spray into other colors.
Specification of architectural metal screen
|
Material |
Stainless steel&Red Copper |
Opening Area |
53.9% |
|
Warp Diameter |
0.8mm |
Mesh Thickness |
2.5mm |
|
Warp Pitch |
2.88mm |
Surface |
clean &free oil |
|
Weft Diameter |
1.5mm |
Max Width |
3m |
|
Weft Pitch |
7.25mm |
Max Length |
6m |
|
Weight |
4.1kgs/m2 |
Application |
Interior / Exterior |
Architectural metal screen Techincal support:
1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others

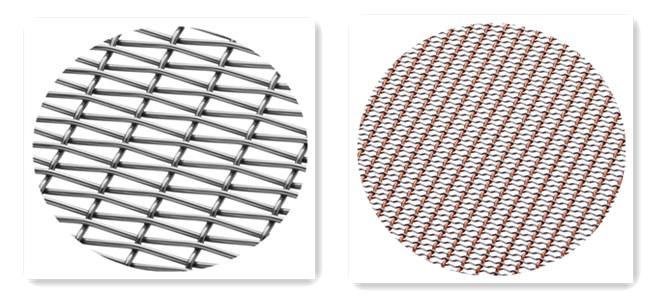

Images of architectural metal screen
Application To The Architectural Metal Screen
Architectural metal screen can be used as both interior and exterior decoration, such as: wall coverings, draped and
suspended ceilings, sunshades and canopies, gates, exhibit booths, retail displays, elevator cabs, stairs & balustrades,
and partition screens etc.
