Woven Square Mesh Self Cleaning Screen Mesh As Screening For Agri-food Industry
Price:
Negotiable
MOQ:
10
Delivery Time:
5-8 work days
Brand:
huihao
Product Description
Woven Square Mesh Self Cleaning Screen Mesh As Screening For Agri-food Industry
Screen Common Model of Woven Square Mesh Self Cleaning Screen Mesh As Screening
(ATT: Others model can produced as customer details dimension and requirement)
| Aperture Square type | Light Duty | Medium | Heavy Duty | ||||||
| Wire | Dia kg/㎡ | OA% | Wire | Dia kg/㎡ | OA% | Wire | Dia kg/㎡ | OA% | |
| 2.00 | 1.37 | 7.1 | 35 | ||||||
| 3.15 | 2.00 | 9.9 | 37 | 2.50 | 14.1 | 31 | |||
| 4.00 | 2.00 | 8.50 | 44 | 2.50 | 12.2 | 38 | 3.05 | 16.8 | 32 |
| 5.00 | 2.00 | 7.80 | 51 | 2.50 | 16.6 | 44 | 3.05 | 14.7 | 38 |
| 5.60 | 2.50 | 9.80 | 48 | 3.05 | 13.7 | 41 | 4.00 | 21.2 | 34 |
| 6.35 | 2.50 | 8.89 | 51 | 3.05 | 12.6 | 46 | 4.00 | 19.6 | 38 |
| 6.80 | 2.50 | 9.00 | 51 | 3.05 | 10.0 | 44 | 4.00 | 19.7 | 37 |
| 7.10 | 2.50 | 8.80 | 55 | 3.05 | 11.9 | 48 | 4.00 | 18.3 | 41 |
| 8.00 | 2.50 | 10.80 | 54 | 4.00 | 16.9 | 44 | 5.00 | 24.4 | 38 |
| 9.00 | 3.05 | 9.80 | 55 | 4.00 | 15.6 | 48 | 5.00 | 22.7 | 44 |
| 10.00 | 3.05 | 9.10 | 58 | 4.00 | 14.5 | 51 | 5.00 | 21.2 | 44 |
| 11.20 | 3.05 | 10.40 | 54 | 5.00 | 19.6 | 48 | 5.60 | 28.6 | 44 |
| 12.50 | 4.00 | 12.30 | 57 | 5.00 | 18.1 | 51 | 5.60 | 20.0 | 47 |
| 14.00 | 4.00 | 16.70 | 54 | 5.00 | 20.0 | 51 | 6.80 | 24.6 | 48 |
| 16.00 | 5.00 | 15.10 | 58 | 5.60 | 19.5 | 56 | 6.80 | 22.6 | 51 |
| 18.00 | 5.00 | 14.50 | 58 | 6.80 | 20.7 | 55 | 7.10 | 25.0 | 51 |
| 20.00 | 5.60 | 14.00 | 61 | 6.80 | 19.2 | 58 | 7.10 | 24.0 | 54 |
| 22.00 | 5.60 | 17.60 | 61 | 7.10 | 21.5 | 57 | 8.00 | 26.7 | 54 |
| 25.00 | 6.80 | 16.10 | 64 | 7.10 | 20.1 | 60 | 8.00 | 24.6 | 57 |
| 28.00 | 7.00 | 14.70 | 62 | 8.00 | 19.0 | 61 | 9.00 | 27.8 | 57 |
| 32.00 | 8.00 | 20.60 | 64 | 9.00 | 26.0 | 60 | 10.00 | 30.4 | 58 |
| 38.00 | 8.00 | 18.70 | 67 | 9.00 | 28.1 | 64 | 10.00 | 27.9 | 61 |
| 40.00 | 9.00 | 21.00 | 67 | 10.00 | 25.4 | 64 | 11.20 | 31.1 | 61 |
| 45.00 | 9.00 | 19.50 | 69 | 10.00 | 23.4 | 67 | 11.20 | 28.4 | 64 |
| 50.00 | 10.00 | 23.20 | 69 | 11.20 | 26.0 | 67 | 12.50 | 31.8 | 64 |
| 56.00 | 10.00 | 19.20 | 72 | 11.20 | 28.7 | 69 | 12.50 | 29.0 | 67 |
| 63.00 | 10.00 | 17.40 | 75 | 11.20 | 24.5 | 72 | 12.50 | 25.0 | 70 |
| 76.20 | 10.00 | 14.80 | 78 | 11.20 | 16.0 | 75 | 12.50 | 20.0 | 73 |
| 80.00 | 10.00 | 16.00 | 79 | 11.20 | 17.5 | 72 | 12.50 | 21.5 | 75 |
| 90.00 | 10.00 | 14.00 | 81 | 11.20 | 15.7 | 79 | 12.70 | 19.4 | 77 |
| 100.00 | 10.00 | 10.00 | 82 | 11.20 | 14.3 | 81 | 12.70 | 17.6 | 79 |
technical data of Woven Square Mesh Self Cleaning Screen Mesh As Screening
1)Aperture error:≤3%,which is better than International Standards;
2)Wire diameter error: ±3%;
3) Diagonal error:≤9mm every2m

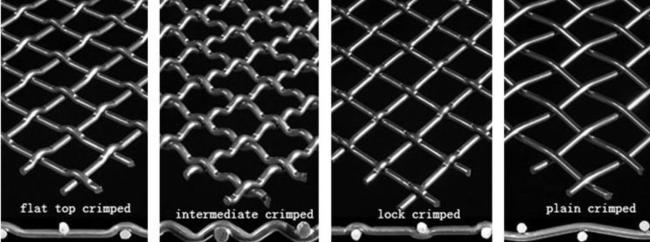

crimped types of Woven Square Mesh Self Cleaning Screen Mesh As Screening

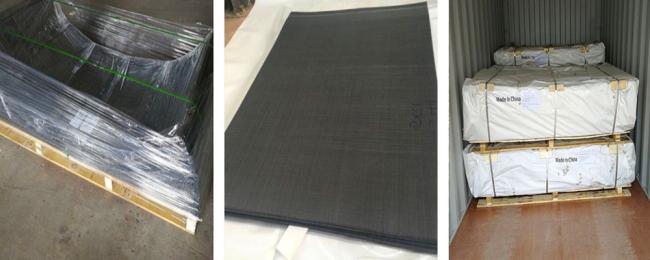

packages of Woven Square Mesh Self Cleaning Screen Mesh As Screening
