High Carbon Steel Anti Clogging Self Cleaning Screen Mesh For Mine Sieving
High Carbon Steel Anti Clogging Self Cleaning Screen Mesh For Mine Sieving
Production details of High Carbon Steel Anti Clogging Self Cleaning Screen Mesh
High Carbon Steel Anti Clogging Self Cleaning Screen Mesh is made of mn steel crimped wire.
|
High carbon steel: |
Manganese steel,high carbon steel 65Mn |
|
Wire diameter |
1.5mm-5mm,Our finished wire is inspected by third party SGS,Tolerance+_0.03mm . |
|
Aperture/Opening |
2mm to 100mm,tolerance +-3% |
specification of High Carbon Steel Anti Clogging Self Cleaning Screen Mesh
some parts of specification as reference, at same time we wab be according your requirements to custom.
|
aperture (mm)
|
wire diameter(mm)
|
kg/m2
|
screening area%
|
|
1.50
|
1.20-1.60
|
4.7-6.8
|
31-38
|
|
2.00
|
1.20-1.60
|
4.3-6.2
|
37-43
|
|
3.00
|
1.20-2.00
|
3.6-7.8
|
40-52
|
|
4.00
|
1.20-2.00
|
3.1-6.9
|
45-58
|
|
5.00
|
1.50-2.80
|
2.7-11
|
41-65
|
|
6.00
|
1.50-2.80
|
3.4-9
|
48-64
|
|
8.00
|
2.00-3.15
|
4.5-9.1
|
53-63
|
|
10.00
|
2.00-3.15
|
3.7-8.0
|
59-69
|
|
14.00
|
2.00-4.00
|
3.0-9.6
|
61-76
|
|
19.00
|
2.80-4.00
|
4.2-7.9
|
68-76
|
|
22.00
|
2.50-4.00
|
3.0-7.1
|
72-80
|
|
25.00
|
4.00-5.00
|
6.4-9.3
|
70-74
|
|
26.00
|
4.00-5.00
|
6.10-9.20
|
70-75
|
|
28.00
|
3.00-4.00
|
3.5-5.8
|
77-82
|
|
30.00
|
3.00-4.00
|
3.3-5.6
|
78-83
|
|
32.00
|
4.00
|
5.30
|
79
|
|
35.00
|
4.00-5.00
|
4.8-7.3
|
77-81
|
|
40.00
|
4.00
|
4.00
|
84
|
weave type of High Carbon Steel Anti Clogging Self Cleaning Screen Mesh
|
weave type drawing show |
weave type details of High Carbon Steel Anti Clogging Self Cleaning Screen Mesh |
 |

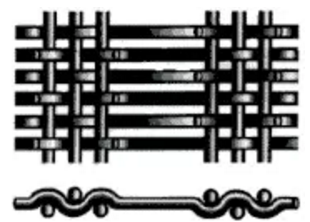

Tri-Loc of High Carbon Steel Anti Clogging Self Cleaning Screen Mesh
Long openings will keep sticky or wet material flowing freely. Weave holds wires securely yet permits slight vibration to keep openings clear. This specification is often called "Triple Shoot". |

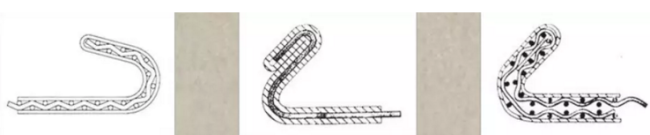

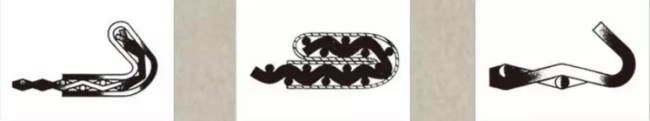

hook type of High Carbon Steel Anti Clogging Self Cleaning Screen Mesh
 |
 |
 |
