Rod Pitch 8MM Stainless Steel Wire Mesh Conveyor Belt For Pizza Furnace
Rod Pitch 8MM Stainless Steel Wire Chain Mesh Conveyor Belt For Pizza , Furnace
product details of Stainless Steel Wire Mesh Conveyor Belt
|
Material
|
SUS 302, 304, 316, 316L
|
||
|
Standard
|
DIN JIS
|
||
|
Type
|
single Loop Edge, Doubl Loop Edge
|
||
|
Mesh Size
|
6*50mm, 10*70mm, etc.
|
||
|
Thickness
|
1.0mm-2.0mm
|
||
|
Width
|
500-2000mm
|
||
|
Length
|
2M-100M
|
||
|
Application
|
Used in food machinery and research units
|
||
|
Introduction
|
It is also know as trapezoidal mesh belt, belt is made by mesh belt of top hardness through a special mold pressing, the edge can also be driven by a chain.
|
||
|
Frature
|
Acid-ressitance, alkali-ressietance, high temperature resist, stronge tension and good aboration performance.
|
||
Specification of Stainless Steel Wire Mesh Conveyor Belt
|
Pitch and Wire Diameter |
Nominal opening between wires |
Edge Loop Size |
XT Space Width |
Minimum Large Space Width |
Average Belt Weight (Kgs/m²) |
Maximum Tension per Joint - Kgf (N) |
Minimum Transfer Outside Diameter (grooved) |
Typical Open Area (%) |
|
7.26 x 1.6 |
5.66 |
7 |
22.23 |
50.8 |
2.9 |
6.8 (66.7) |
19 |
71 |
|
12.7 x 1.83 |
10.87 |
7 |
22.23 |
44.45 |
2.7 |
8.2 (80) |
25 |
78 |
|
9.6 x 1.83 |
7.77 |
8 |
22.23 |
57.15 |
3.1 |
8.2 (80) |
25 |
74 |
|
9.6 x 2.08 |
7.52 |
8 |
25.4 |
82.55 |
3.75 |
10 (98) |
25 |
72 |
|
COMPONENT QUANTITY CHART (SPROCKETS / BLANKS / SUPPORT STRIPS) |
||||
|
Number of XT spaces across belt |
Number of Sprockets |
Idler shaft |
Belt supports |
|
|
|
|
Sprockets |
Blanks |
Wear Strips |
|
3 |
3 |
2 |
1 |
2 |
|
4 |
4 |
2 |
2 |
3 |
|
5 |
5 |
2 |
3 |
4 |
|
6 |
6 |
2 |
4 |
5 |
|
7 |
7 |
2 |
5 |
6 |
|
8 |
8 |
2 |
6 |
7 |
|
9 |
9 |
2 |
7 |
8 |
|
10 |
10 |
2 |
8 |
9 |
|
11 |
11 |
2 |
9 |
10 |
|
12 |
12 |
2 |
10 |
11 |
|
13 |
13 |
2 |
11 |
12 |
|
14 |
14 |
2 |
12 |
13 |
|
15 |
15 |
2 |
13 |
14 |
|
16 |
16 |
2 |
14 |
15 |
|
17 |
17 |
2 |
15 |
16 |
|
18 |
18 |
2 |
16 |
17 |
|
19 |
19 |
2 |
17 |
18 |
|
20 |
20 |
2 |
18 |
19 |
|
21 |
21 |
2 |
19 |
20 |
|
22 |
22 |
2 |
20 |
21 |
|
23 |
23 |
2 |
21 |
22 |
|
24 |
24 |
2 |
22 |
23 |
|
25 |
25 |
2 |
23 |
24 |
|
26 |
26 |
2 |
24 |
25 |
|
27 |
27 |
2 |
25 |
26 |
Application of Stainless Steel Wire Mesh Conveyor Belt
Stainless Steel Wire Mesh Conveyor Belt Widely used in roasting foodstuff,printing,electronics ,cold storage ,metal heat treatment ,power
plant,pharmacy plant, non-woven cloth factory,glass and ceramic factory, conveyor machinery and conveyor lines in many industries.

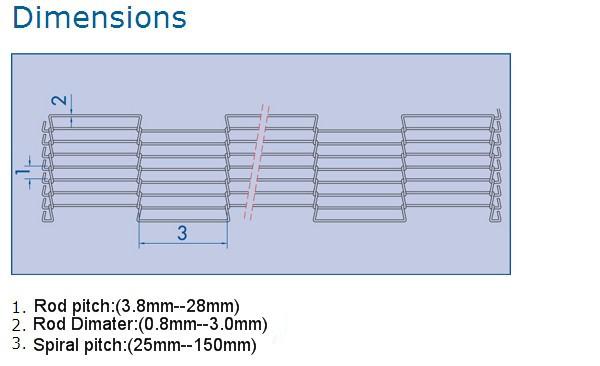

Characteristics of conveyor belt mesh:
1. The stainless steel conveyor belt width: 150-5500mm
2. Working speed: 0.15-0.50m/ min
3. The edge of the form: Curved edge, upsetting the first, in the form of welding
4. Material: stainless steel wire ( 304, 304 L, 302, 201, 316, 316 L, 2520, 2080), stainless iron wire, middle and low carbon steel wire,
galvanized wire ( hot galvanized, electroplating), chromium iron wire, nickel chromium wire, aluminum wire, polyester wire etc.
specification before making the quotation:
1)material
2)rod diameter
3)rod pitch
4)spiral pitch
5)overall belt width
6)loop pattern
7)total length
