Archtectural Stainless Steel Cable Rod Wire Mesh for Armoires Decoration
Archtectural Stainless Steel Cable Rod Wire Mesh for Armoires Decoration

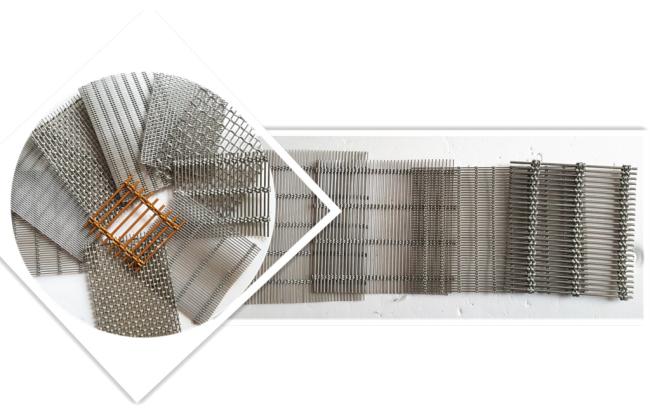

Product specifications of Archtectural Stainless Steel Cable Rod Wire Mesh for Armoires Decoration
Decorative cable rod mesh is widely used as curtains, screens for dining hall, isolation in hotels, ceiling decoration, Animal
containment and security fencing, etc.
With it's versatility, unique texture, variety of colors, durability and flexibility, metal wire mesh fabric offers a modern decoration
style for constructions. When it is used as curtains, it offers a variety of color changes with light and gives unlimited imagination.
Archtectural Stainless Steel Cable Rod Wire Mesh Techincal support:
1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.
|
Archtectural Stainless Steel Cable Rod Wire Mesh |
|||||
|
Material |
Cable Diameter |
Cable Pitch |
Rod Diameter |
Rod Pitch |
Weight |
|
mm |
mm |
mm |
mm |
kg/m2 |
|
|
SUS 314/316/316L |
0.75mm*4 |
26.4 |
1.5 |
3.0 |
5.3 |
|
1.00mm*4 |
36.0 |
2.0 |
4.0 |
7.0 |
|
|
0.60mm*2 |
5.5 |
0.8 |
2.3 |
2.6 |
|
|
2.00mm*4 |
50.0 |
3.0 |
6.0 |
11.56 |
|
|
3.00mm*3 |
40.0 |
3.0 |
11.0 |
9.5 |
|
|
2.75mm*2 |
40.0 |
4.0 |
14.5 |
9.41 |
|
|
1.05mm*2 |
16.0 |
4.0 |
7.0 |
14.9 |
|
|
2.00mm*3 |
80.0 |
3.0 |
10.0 |
6.6 |
|
|
1.60mm*1 |
3.2 |
1.2 |
6.0 |
5.0 |
|
|
2.00mm*1 |
3.1 |
1.2 |
5.0 |
10.0 |
|
|
2.50mm*1 |
5.0 |
2.0 |
6.0 |
12.2 |
|
|
Copper |
2.00mm*3 |
80.0 |
3.0 |
10.0 |
7.3 |
Application of Archtectural Stainless Steel Cable Rod Wire Mesh
The stand side of the building ,obstruct,keep light out ,balcony,porch ,roll curtain,stair ,airport,hotel ,museum,opera
house ,odeum,exhibit hall.
Architectural cable rod wire mesh is light-weight. cable rod wire mesh offers additional strength and stability to the woven cloth,
and can be manufactured with cable, straight and shaped wires for additional design elements. Custom weaves can provide
strength for safety as well as security and insulation for sound dampening applications.
Packing details of Archtectural Stainless Steel Cable Rod Wire Mesh
We put first the whole size plastic cloth on the bottom of the wooden case for covering all the rolls.
huihao can offer different delivery method in accordance with different quantity. We can delivery the goods to you by different
express company according yo your requirements.
