304 Stainless Steel Cable Rod Architectural Metal Screen for Isolation Screens
Stainless Steel Cable Wire Architectural Metal Screen for Isolation Screens
Stainless Steel Cable Wire Architectural Metal Screen, also named metal fabric or architectural mesh, is weaved with high
quality stainless steel wire , aluminum alloy wire, brass wire, copper wire or other alloy materials. It is a new decorative
material in the modern industrial and architectural decoration.
Stainless Steel Cable Wire Architectural Metal Screen Techincal support:
1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.
Specification of Stainless Steel Cable Wire Architectural Metal Screen
|
Specification of Stainless Steel Cable Wire Architectural Metal Screen |
||||||||
|
Item No.s |
Open Area (%) |
No.s of Cable |
Cable Dia. (mm) |
Cable pitch (mm) |
Rod Dia. (mm) |
Rod pitch (mm) |
Thickness (mm) |
Weight (kg/m2) |
|
1 |
42 |
4 |
2 |
50 |
3 |
6 |
7 |
11.56 |
|
2 |
44 |
4 |
1.5 |
50 |
3 |
6 |
6 |
10.67 |
|
3 |
43 |
4 |
2 |
60 |
3 |
6 |
7 |
11.22 |
|
4 |
45 |
4 |
2 |
80 |
3 |
6 |
7 |
10.80 |
|
5 |
44 |
4 |
0.75 |
26.4 |
1.5 |
3 |
3 |
5.20 |
|
6 |
51 |
4 |
0.75 |
26.4 |
1.5 |
3.5 |
3 |
4.62 |
|
7 |
44 |
4 |
1 |
36 |
2 |
4 |
4 |
7.06 |
|
8 |
44 |
4 |
1 |
36 |
2 |
4 |
4 |
7.06 |
|
9 |
62 |
4 |
1 |
36 |
2 |
6.6 |
4 |
4.55 |
|
10 |
51 |
2 |
2.7 |
50 |
3 |
7 |
8.4 |
10.02 |
|
11 |
51 |
2 |
0.6 |
5.5 |
0.8 |
2.3 |
2 |
2.60 |
|
12 |
42 |
3 |
0.45 |
3.5 |
0.5 |
1.6 |
1.4 |
2.09 |
|
13 |
56 |
3 |
3 |
40 |
3 |
11 |
9 |
9.48 |
|
14 |
60 |
3 |
3 |
45 |
3 |
12 |
9 |
8.57 |
|
15 |
40 |
1 |
1.8 |
4 |
1.5 |
5.5 |
5.1 |
6.00 |
|
16 |
33 |
1 |
2.5 |
5 |
2 |
6 |
7 |
10.90 |
|
17 |
44 |
1 |
2.5 |
6 |
2 |
8 |
7 |
8.79 |
|
18 |
44 |
1 |
2.5 |
6 |
2 |
8 |
7 |
8.79 |
|
19 |
35 |
1 |
2.5 |
5 |
3 |
10 |
8 |
12.46 |
|
20 |
28 |
1 |
3 |
5 |
3 |
10 |
9 |
15.43 |
|
21 |
74 |
3 |
2.75 |
180 |
4 |
18 |
9.5 |
6.44 |
|
22 |
51 |
4 |
1 |
35 |
2.75 |
6.5 |
4.75 |
8.11 |
|
23 |
80 |
3 |
2.75 |
150 |
3 |
20 |
8.5 |
3.82 |
|
24 |
85 |
3 |
2.75 |
150 |
4 |
40 |
9.5 |
3.50 |
|
25 |
76 |
3 |
3 |
160 |
4 |
20 |
10 |
6.15 |
|
26 |
61 |
4 |
0.75 |
15 |
1.2 |
5 |
2.7 |
2.78 |
|
27 |
62 |
2 |
2.75 |
40 |
4 |
14.5 |
9.5 |
9.41 |
|
28 |
56 |
3 |
1 |
45 |
2 |
5 |
4 |
5.50 |
|
29 |
59 |
4 |
1 |
50 |
2 |
5.5 |
4 |
5.13 |
|
30 |
55 |
2 |
1.2 |
60 |
3 |
7 |
5.4 |
8.47 |
|
31 |
40 |
2 |
1.05 |
36 |
4 |
7 |
6.1 |
14.90 |
|
32 |
65 |
3 |
2 |
80 |
3 |
10 |
7 |
6.67 |
|
33 |
65 |
3 |
2 |
80 |
3 |
10 |
7 |
6.67 |
|
34 |
71 |
3 |
1.6 |
80 |
2.5 |
10 |
5.7 |
4.58 |
|
35 |
67 |
3 |
2.75 |
110 |
4 |
14.5 |
9.5 |
8.32 |
|
36 |
64 |
3 |
2.75 |
120 |
4.5 |
14.5 |
10 |
10.07 |
|
37 |
35 |
1 |
2 |
17.5 |
1.5 |
2.5 |
5.5 |
7.17 |
|
38 |
0 |
1 |
2 |
17.5 |
1.5 |
1.5 |
5.5 |
10.98 |
|
39 |
51 |
1 |
2 |
17.5 |
1.5 |
3.5 |
5.5 |
5.53 |
|
40 |
51 |
1 |
2 |
17.5 |
1.5 |
3.5 |
5.5 |
5.53 |
|
41 |
59 |
1 |
2 |
17.5 |
1.5 |
4.5 |
5.5 |
4.63 |
|
42 |
62 |
1 |
1.3 |
17.5 |
1.25 |
3.75 |
3.85 |
3.26 |
|
43 |
64 |
1 |
1.5 |
17.5 |
1.5 |
5 |
4.5 |
3.67 |
|
44 |
53 |
1 |
2 |
17.5 |
2 |
5 |
6 |
6.53 |
|
45 |
63 |
1 |
2 |
17.5 |
2 |
7 |
6 |
5.08 |
|
46 |
69 |
1 |
2 |
35 |
1.5 |
5.5 |
5.5 |
3.32 |
|
47 |
73 |
1 |
2 |
17.5 |
1.5 |
8.5 |
5.5 |
3.13 |
|
48 |
35 |
1 |
1.2 |
5 |
1.75 × 0.6 |
5 |
3.6 |
3.00 |
|
49 |
40 |
1 |
1.6 |
3.2 |
1.75 × 0.6 |
6 |
4.4 |
4.90 |
|
50 |
27 |
1 |
2 |
3.1 |
1.75 × 0.6 |
5 |
5.2 |
8.70 |
|
51 |
52 |
1 |
2 |
4.5 |
2 |
32 |
6 |
6.44 |
|
52 |
4 |
1 |
1.5 |
4.9 |
1.5 |
1.6 |
4.5 |
11.85 |
|
53 |
0 |
1 |
1.5 |
9.3 |
2 × 1.5 |
2.5 |
5 |
13.50 |
|
54 |
50 |
1 |
2.5 |
15 |
2 |
5 |
7 |
7.73 |
|
55 |
64 |
1 |
3 |
20 |
2.5 |
10 |
8.5 |
6.83 |
|
56 |
43 |
2 |
1.2 |
17.5 |
2 |
4 |
4.4 |
7.40 |
|
57 |
58 |
2 |
1.2 |
17.5 |
2 |
6 |
4.4 |
5.28 |
|
58 |
53 |
1 |
2.5 |
15.4 |
2 |
5.5 |
7 |
7.20 |
|
59 |
70 |
2 |
4 |
169.2 |
4 |
15.2 |
9 |
7.89 |
|
60 |
32 |
1 |
1.6 |
5.4 |
1.35 |
2.5 |
4.55 |
7.64 |
|
61 |
0 |
1 |
1.5 |
4.8 |
1.5 |
1.5 |
4.5 |
12.50 |
|
62 |
0 |
1 |
1.6 |
5 |
1.5 |
1.5 |
4.7 |
12.78 |
|
63 |
0 |
1 |
2 |
8 |
1.5 |
1.5 |
5.5 |
12.70 |
|
64 |
64 |
1 |
7 × 1 |
15 |
7 × 1 |
15 |
9 |
7.60 |
|
65 |
59 |
3 |
4 × 1 |
20 |
4 × 1 |
20 |
6.78 |
6.70 |
|
66 |
43 |
1 |
4 × 1 |
6.5 |
4 × 1 |
6.5 |
6.78 |
9.90 |
|
67 |
59 |
1 |
7 × 1 |
13 |
7 × 1 |
13 |
9 |
8.79 |
|
68 |
65 |
1 |
5 × 1 |
13 |
5 × 1 |
13 |
7.62 |
6.30 |

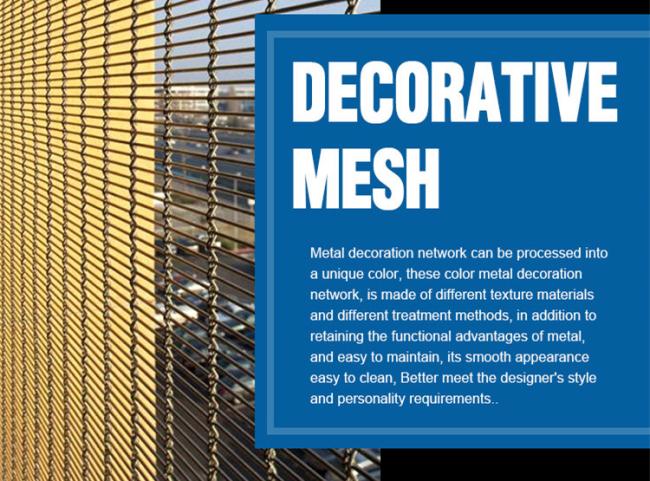

image following OF Stainless Steel Cable Wire Architectural Metal Screen
 |
 |
 |
 |
 |
 |
Features of Stainless Steel Cable Wire Architectural Metal Screen: Available in many different patterns, each with its own
characteristics and optical effect.
Applications of Stainless Steel Cable Wire Architectural Metal Screen: Due to their multiple functional and aesthetic qualities,
the meshes are suitable for various applications In architecture and interior design, metal fabrics are used for decoration as:
- Wire mesh facades;
- Shade screens;
- Architecture ceilings;
- Metal draperies for walls, partition and isolation screens;
- Staircases isolation screen, elevator cabins screen;
- Floor covering fabrics;
- Other special uses.
