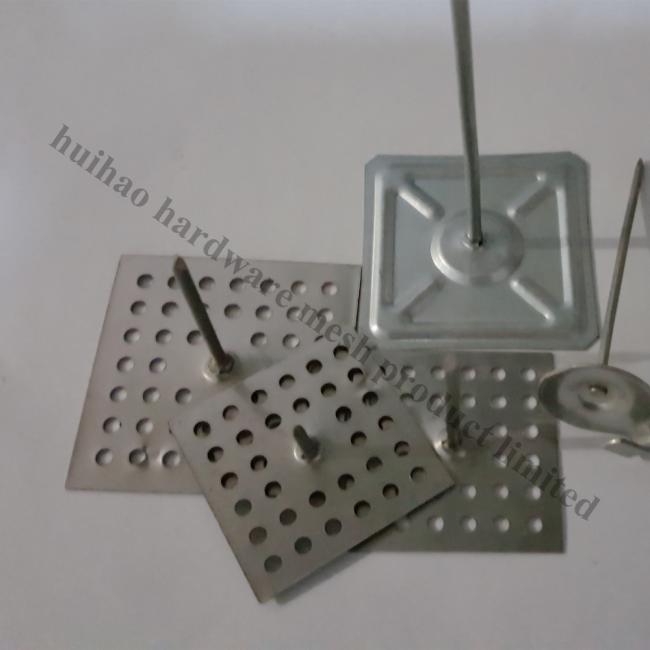

Perforated Type Insulation Anchor Pins with Aluminum Nails 3mmx110mm
Perforated Type Insulation Anchor Pins with Aluminum Nails 3mmx110mm
1.Specification of perforated type insulation anchor pins
|
material |
pin dia |
base size |
length |
|
Galvanized steel ,ss , aluminum |
12ga ( 0.106 " ) |
2''X2'' |
1/2" |
|
Galvanized steel ,ss , aluminum |
12ga ( 0.106 " ) |
2''X2'' |
1" |
|
Galvanized steel ,ss , aluminum |
12ga ( 0.106 " ) |
2''X2'' |
1-5/8" |
|
Galvanized steel ,ss , aluminum |
12ga ( 0.106 " ) |
2''X2'' |
2" |
|
Galvanized steel ,ss , aluminum |
12ga ( 0.106 " ) |
2''X2'' |
3-1/2" |
|
Galvanized steel ,ss , aluminum |
12ga ( 0.106 " ) |
2''X2'' |
4 1/2" |
|
Galvanized steel ,ss , aluminum |
12ga ( 0.106 " ) |
2''X2'' |
5 1/2" |
|
Galvanized steel ,ss , aluminum |
12ga ( 0.106 " ) |
2''X2'' |
6" |
|
Galvanized steel ,ss , aluminum |
12ga ( 0.106 " ) |
2''X2'' |
8" |
2. drawing of perforated insulation anchor pins
3. application of perforated insulation anchor pins
Common size and usages of the Perforated Metal Insulation Spikes , Perforated Base Insulation Hangers:
1-5/8": Used for 1-1/2" .75# Fiberglass Duct Wrap
2-1/2": Used for 2" Fiberglass Rigid Board / Foam Board
4-1/2": Used for 4" Fiberglass Rigid Board / R-13
6-1/2": Used for R-19 Fiberglass Batt Insulation
9-1/2": Used for R-30 Fiberglass Batt Insulation
12-1/2": Used for R-38 Fiberglass Batt Insulation
Application: It is fixed on the position where there is significant wind-suction-force or if the height is more than 20m or if the finishing coat is tile etc.Exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool and rock-wool in soundproofing works, and for the duct-lining
related product- self locking washer
round self-locking washer, or speed clip, is made primarily in Mild Steel, with Standard Stainless and Aluminum sizes available. In several variations of round sizes, this insulation washer mounts on many types of insulation fasteners for capturing and holding insulation material in place. The gauge of the pin, or diameter, should match the fastener to be affixed, or "locked", onto. Popular diameters are 14 gauge, 12 gauge and 10 gauge---while overall, a wide variety of whole sizes are available in both standard and metric self-locking hole sizes which can range from 1/8" to 1/2".
|
Diameter
|
1
|
1-3/16
|
1-1/2
|
1-1/2
|
2"
|
|
Nominal Thickness
|
.015
|
.015
|
.015
|
.015
|
.015
|
|
Stnd Material
|
Galv
|
Galv
|
Galv
|
Galv
|
Galv
|
|
Pack
|
1000
|
1000
|
1000
|
1000
|
2000
|
|
Approx. Wgt/1000
|
4.2
|
4.8
|
8
|
8
|
14
|
|
Other Materials
|
S.S.
|
S.S.
|
S.S.
|
|
