Free Oil Pre-Crimped Type Architectural Wire Mesh For Building Curtain Wall
Free Oil Pre-Crimped Type Architectural Wire Mesh For Building Curtain Wall
Specification of crimped type Architectural Wire Mesh
![]() |
term -HUIHAOFL001 material: stainless steel 304/316 warp wire diameter:1.5mmx2.5mm warp pitch:5mm weft wire diameter:1.5mm weft pitch:20mm weight:5.2kgs/m2 open area:25% max width:4000mm |
![]() |
term-HUIHAOCRIM02 material: stainless steel 304/316 warp wire diameter:2.5mmx3mm warp pitch:5mm weft wire diameter:2.5mm weft pitch:20mm open area:25% weight:9.9kgs/m2 max width:4000mm |
![]() |
term-HUIHAO FLAT01 Material: stainless steel 304/316 mesh thickness:3.3mm flat wire diameter:2mmx3mm aperture:7mmx20mm open area:27.3% weight:5.6kgs/m2 max width:4000mm |
Architectural Wire Mesh Techincal support:
1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.

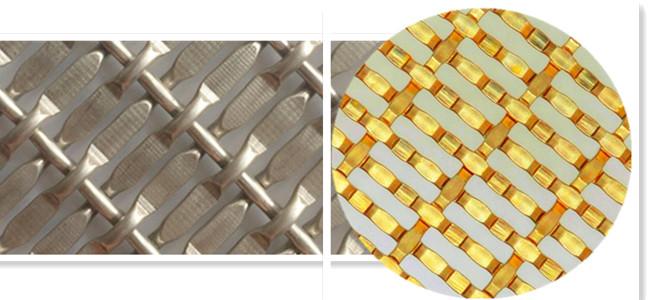

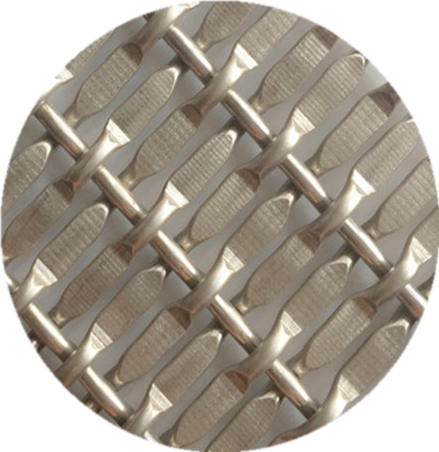

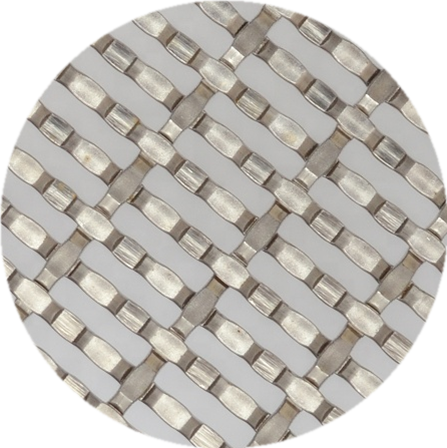

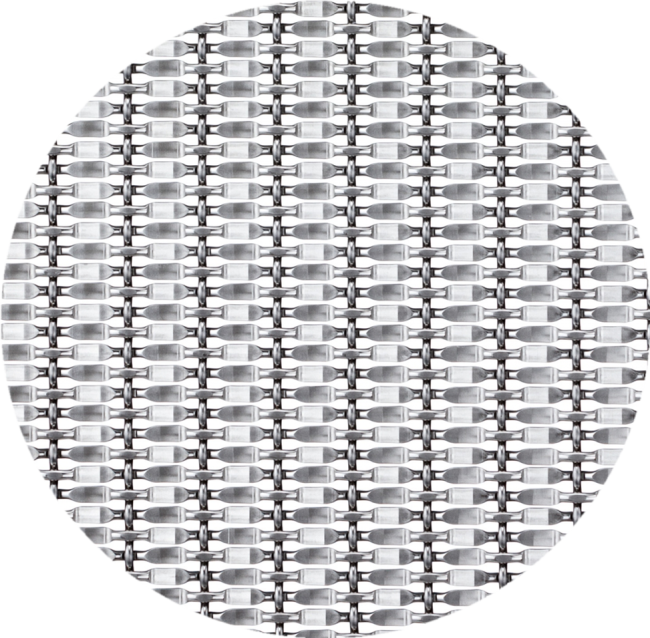

imange of crimped type Architectural Wire Mesh
Application of crimped type Architectural Wire Mesh
Architectural metal screen can be used as both interior and exterior decoration, such as: wall coverings, draped and
suspended ceilings, sunshades and canopies, gates, exhibit booths, retail displays, elevator cabs, stairs & balustrades,
and partition screens etc.
because of features of architectural wire mesh:
- Fireproof, rustproof, waterproof
- Because it is made of metal, it can be made into various colors and design styles after surface treatment.
- strong and hardness
- Because it is woven from embossed flat wire, 3D effect.
- Increase the border for easy installation
- easy to clean
- Glass interlayer
- Variety of decorative styles
certification
