Square Perforated Base Type Insulation Pins Used For HAVC System 2.7mm x 160mm L

details of perforated base insulation pins

1. insulation pin material: low carbon steel, stainless steel 304/316/309, aluminum 1100

2. surface treatment of the nails: zinc coated or copper plated

3. base material: galvanized steel, stainless steel (0.4-0.8mm)

4. certification: ISO9001-2008

5. Small order available, customized support. free sample support

6. fixing accessories: dome caps washer. self metal clips , drive pins and adhesive

Common size of perforated base insulation pins

note: for the mild steel or stainless steel material pins, must be annealed. it is eary for bending and cutting. but don't waoory

about the bearing. it is meet standard:

• Tensile bearing capacity of pins standard value: Fk≥0.60
• Standard value of base tensile force: Frk≥0.50

Application of perforated base insulation pins

insulation pin length 45mm: Used for 38mm .75# Fiberglass Duct Wrap
insulation pin length 63mm: Used for 50mm Fiberglass Rigid Board / Foam Board
insulation pin length 114mm: Used for 100mm Fiberglass Rigid Board / R-13

insulation pin length 165mm: Used for R-19 Fiberglass Batt Insulation

insulation pin length 240mm: Used for R-30 Fiberglass Batt Insulation
insulation pin length 317mm: Used for R-38 Fiberglass Batt Insulation

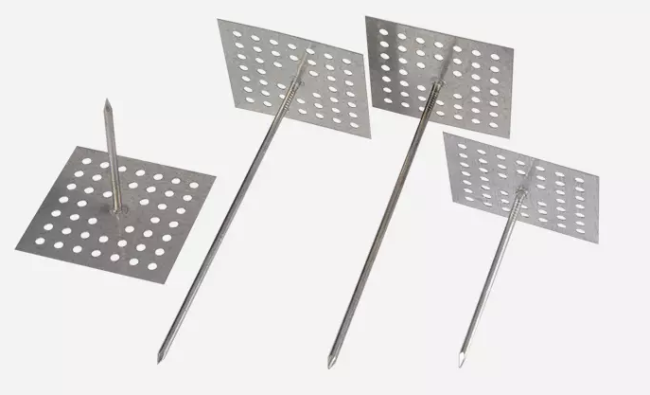

images of perforated base insulation pins

stocks of perforated base insulation pins

currently stock include: self adhesive insulation pins 2.5x70mm 130000pcs

                                          lacing ring 4x40mm, 70000pcs

                                          plastic cover metal clips, 40mm diameter 4000pcs

                                          perforated base insulation pins 40mmx40mm, 40mm length  20000pcs

advantages of huihao company

1.Accept small orders of more than 5000. we have large quantity of insulation pins in stock
2.Free samples are available, and for special specifications, the customer is required to pay the mold fee.

3.Provide installation instructions.
4.Standard export packaging, easy to load and unload at the same time sturdy and clean.
5.Provide customer customs clearance documents and certificate of origin,CO, FORM E, FORM A and others.
6.Quality Assurance, ISO9001-2008, CE, SAS, BV, Material Certification, Product Inspection Report, Performance Parameters.
7.Duration guarantee, 80 excellent CNC equipment
