Stainless Steel Johnson Wire Screen For Coal Coarse Centrifuge Basket
Stainless Steel Johnson Wire Screen For Coal Coarse Centrifuge Basket With PU
Product Description
_______________________________________________________________________________________________
Coal centrifuge basket is a key component of the centrifugal machine and it's a high-speed rotating component. When working,
it is not only to withstand vibration sieve basket loading, but also bear the severe impact of the water and the coal, so it need
relatively high strength and precision.
Specification of Coarse Centrifuge Basket
_______________________________________________________________________________________________
|
Material:
|
stainless steel (304,316etc.)
|
|
Wedge Wire (mm):
|
Width : 0.75 1.50 1.80 2.30 3.00 3.30 3.70
|
|
Support Rod (mm):
|
Width : 1.00 1.80 2.00 3.00 4.00 5.00
|
|
Height : 2.00 2.50 3.00 5.00 6.00 8.00
|
|
|
Top & bottom Diameter:
|
Width Up To 2.5 meters
|
|
Length:
|
lengths up to 6 meters.
|
|
Slot size:
|
0.02,0.05,0.1 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
|
|
Angle:
|
Other specifications can be customized according to your requirement
|
|
Surface profiles |
Support profiles |
Min. Slot in mm |
Standard pitch in mm |
|
12s/12sl |
q25/q35 |
0.030 |
22 |
|
12s |
q35/10x3 |
0.100 |
35-100 |
|
18s |
q35/10x3/25x3 |
0.100 |
35-100/70 |
|
22s |
Q35/10x3/25x3/50x3 |
0.120 |
35-100/70 |
|
28s |
Q35/10x3/25x3/50x3 |
0.150 |
35-100/70 |
|
34s |
Q35/10x3/25x3/50x3 |
0.150 |
35-100/70 |
|
42s |
Q35/10x3/25x3/50x3 |
0.150 |
40-100/70 |
|
50s/50sc |
10x3/25x3/50x3 |
0.150 |
45-100 |
|
pitch = distance between support profiles |
|||
Dimensions
For pitch 22 mm:
Max. surface profile length: 710 mm
Max. support profile length: 1700 mm
For pitch 70 mm:
Max. surface profile length: 2000 mm
Max. support profile length: 2000 mm
For other pitches:
Max. surface profile length: 3000 mm
Max. support profile length: 3500 mm

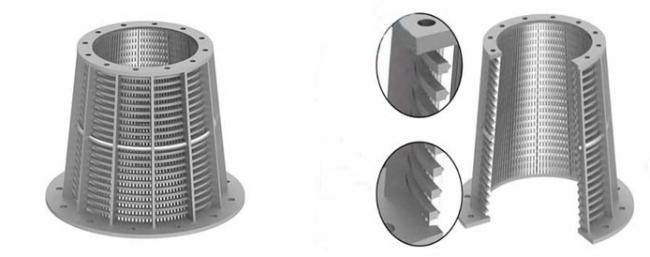

drawing of Coarse Centrifuge Basket
______________________________________________________________________________________________

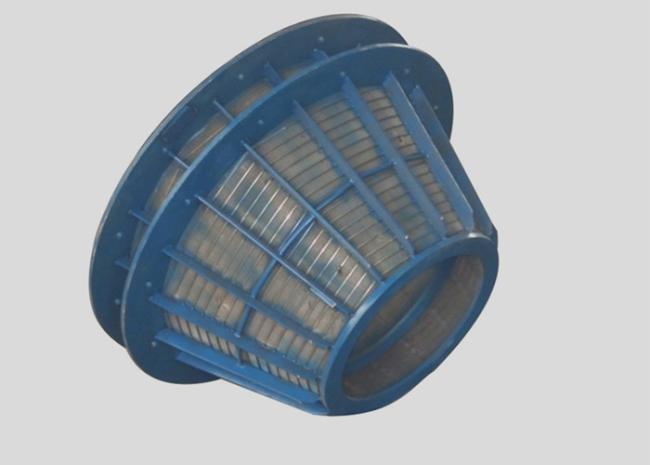

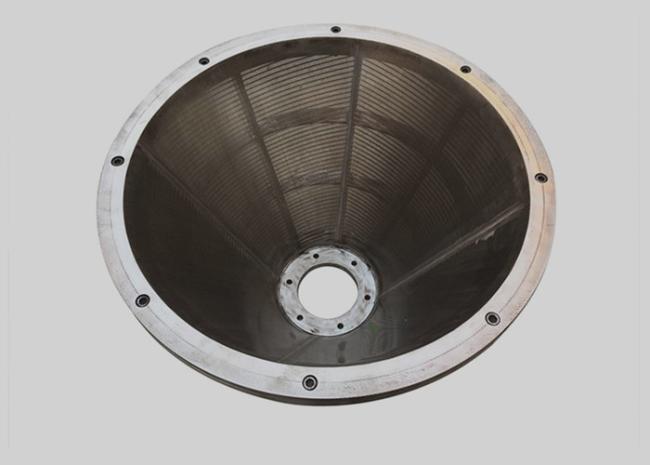

images of Coarse Centrifuge Basket
Application of Coarse Centrifuge Basket
- Used in industries such as Sugar, Coal Mining & Quarrying, Mineral Processing, Cement, and Industrial & Urban Effluent Treatment etc.
- Used as a pre-filter in urban & industrial waste treatment plants to improve the performance of the clarifier by drastically reducing the load.
- Used for fiber removal in Starch industry.
