High Hardness Aluminum Stud Welding Pins , 5000 Series Bimetal Cd Pin
Bimetal Capacitor Discharge (CD) Pins, Weld Stud
>>>>>> Introduction

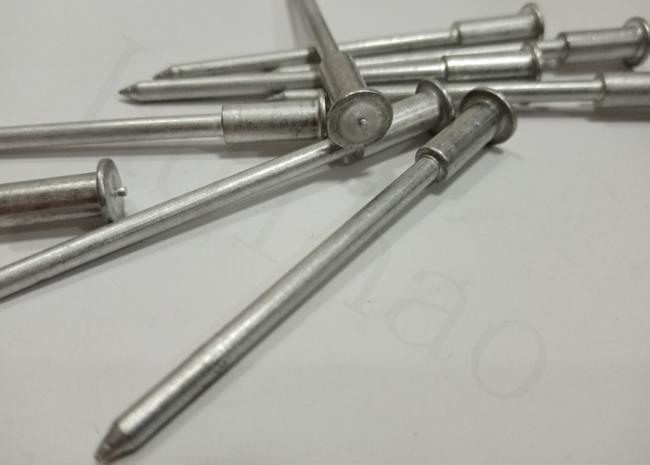

1. Aluminum 5000 Series Bimetal Insulation Pins
 |
Pin Material:Aluminum 5053 Pin Diameter:3mm 4mm 5mm 6mm Pin Material:Aluminum 5053 Base Size:8mmx12mm Weld Point:1mm Flange Thickness:1mm Length:25mm-110mm
Note: Aluminum 5053 grade material is with enough hardness and good welding performance. |
| Material | Pin Diameter | Insulated Head Size | Total length |
| Aluminum 5000 Series | 3mm 4mm 5mm 6mm | 8mmx12mm | 25mm-300mm |

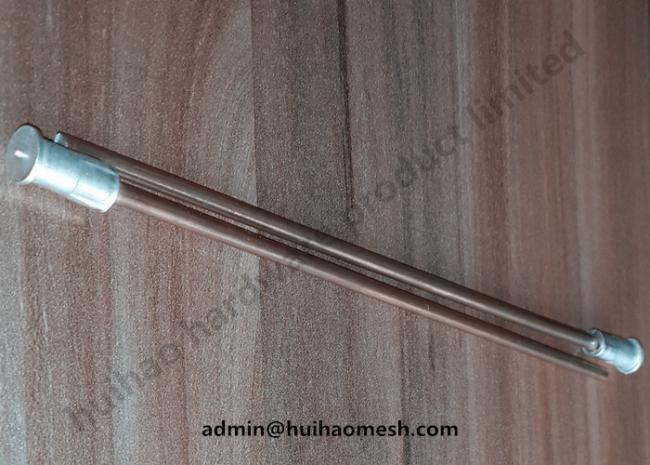

2. Annular Groove (Navy) Bi-Metallic Pins
 |
Pin Material:Stainless Steel Pin Diameter:12GA Or 10GA Base Size:5/16" x 1/2" Bsee Material:Aluminum 5000 series
|
| Material | Pin Diameter |
| Pin is stainless steel, Base is aluminum | 10 GA (0.135 Dia) Or 12 GA (0.105 Dia) |
| Length of Bi-Metallic Pins | packages details |
| 7/8" | 1000pcs per bag/5bags per carton |
| 1" | 1000pcs per bag/5bags per carton |
| 1-7/8" | 1000pcs per bag/3bags per carton |
| 2-7/8" | 1000pcs per bag/3bags per carton |
| 3-7/8" | 1000pcs per bag/2bags per carton |
 |
Pin Material:stainless steel or copper coated steel or zinc coated steel Pin Diameter: 10GA (0.135" Dia) Base Material:Aluminum Base Size: 6mmx15mm Length:25mm-110mm |
 |
Pin Material:stainless steel or copper coated steel or zinc coated steel Pin Diameter: 3mm Base Material:Aluminum Base Size: 6mmx15mm Length:25mm-110mm |
| Material | Pin Diameter |
| Pin is Stainless Steel304/316, copper /zinc plated steel; Base isAluminum | 10 Ga, 0.135 (3.4mm) 3mm |
| length of Bi-Metallic Pins | package details |
| 1-1/2" | 1000pcs per bag/3bags per carton |
| 2" | 1000pcs per bag/3bags per carton |
| 2-1/2" | 1000pcs per bag/2bags per carton |
| 3" | 1000pcs per bag/2bags per carton |
| 3-1/2" | 1000pcs per bag/2bags per carton |
| 4" | 1000pcs per bag/2bags per carton |
| 4-1/2" | 1000pcs per bag/2bags per carton |
| 5" | 500pcs per bag/3bags per carton |
| 6" | 500pcs per bag/3bags per carton |
>>>>>> Related Products
| Item | Clip without plastic coated |
| Material | Galvanized steel, Stainless Steel |
| d1 | 38mm,60mm etc. |
| d2 | 2mm, 2.7mm, 3mm, 4mm, 5mm, 6mm etc. |
| Item | Clip with plastic coated |
| Material | Galvanized steel, Stainless Steel |
| d1 | 40mm etc. |
| d2 | 2mm, 2.7mm, 3mm, 4mm, 5mm, 6mm etc. |
>>>>>> Package And Delivery

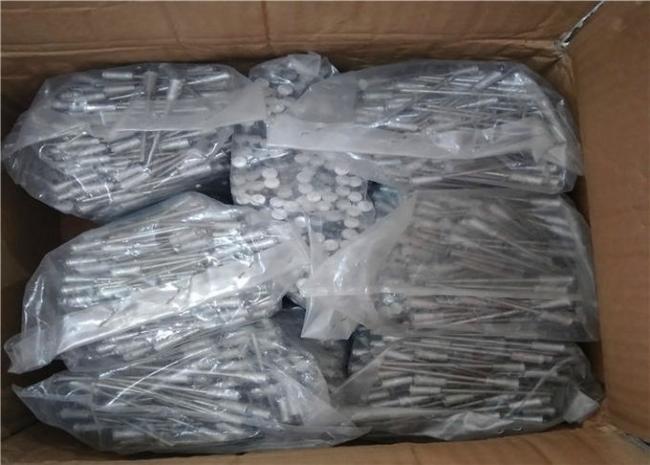

Packing:
500 or 1000 units per plastic bag and then put the bags into carton , also could be packed as request .
Delivery methods:
Sample or small order;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency.
