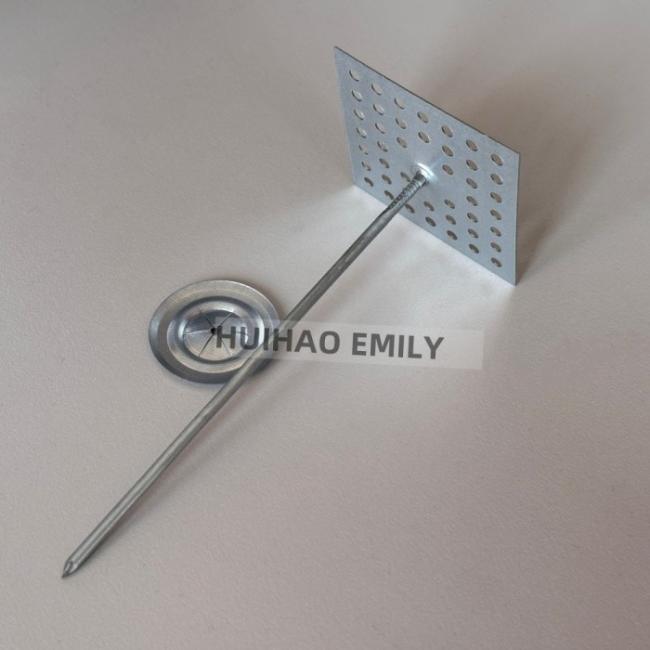

50 x 50 mm Stainless Steel Perforated Base Insulation Hangers
50 x 50 mm Stainless Steel Perforated Base Insulation Hangers
Quick details of Stainless Steel Perforated Base Insulation Hangers
- Product name:insulation hangers ,perforated base insulation pins, insulation anchor
- Material:stainless steel 304/316/316L ,galvanized steel
- Base size :50mmx50mm in common ,40mmx40mm,35mmx35mm,24mmx24mm to be request
- Pin diameter :2.7mm,3.0mm in common ,other to be request
- Pin length :25mm-300mm
- Accessories:self locking washer ,dome cap washer
1. Grade: SUS201,SUS304,SUS316, galvanized steel,aluminum
2. Standard: DIN 315
3. Certification: ISO9001, SGS
Specification details of Stainless Steel Perforated Base Insulation Hangers
| Product name | Perforated base insulation hanger |
| Model | 50x50mm |
| Material | Galvanized sheet, Aluminum, Carbon steel, Stainless steel |
| Surface Treatment | polish ,galvanized |
| Size | 2"*2" |
| Material Thickness | 0.41mm |
| Production Technology | Punch |
| OEM/ODM Service | Available |
| Application | Insulation fasteners |
| Report | Material test report and dimension measurement report |
| Certificate | ISO/TS: 16949 |
| Samples | Available |
| Brand | XY PARTS |
| Place of origin | Heibei, China |
Installation parts of dome caps washers
Dome cap washers are designed to be used where appearance and safety are factors when
installing insulation, or fabricating blankets or pads. The caps are used to cover the nail point
on weld pins, hangers, lacing anchors & quilt pins.
Insulation pin, Aluminum insulation pin, Self-adhesive insulation pin ,Insulation anchor Pins
Self-adhesive insulation pin is exclusively used for fixing adiabatic materials in ducts of
air-conditioner, for glass-wool and rock-wool in soundproofing works,and for the duct-lining.
 |
 |
|
Round self locking washer |
Square self locking washer |
 |
 |
| Metal dome cap washer | PE+metal dome cap washer |
Perforated base insulation hangers Usage:
Exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool and
rock-wool in soundproofing works, and for the duct-lining
Insulation Fixing Pins is with high penetration strength with all types of thermal insulation boards,
suitable for brick and conrete walls.
Advantages of the perforated base insulation hangers
·Suitable for all kinds of wall
·High pull-off strength for a higher security of the system
·Low thermal conduction addition value to avoid thermal bridge
·Galvanized layer on the steel nail to protect the nail
Other syle insulation pin
Huihao company is a insulation fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold according your drawing
pic ,Our products is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
