12ga ,10ga Insulation Mini Cupped Head Weld Pins For Hvac System

Details of Insulation Mini Cupped Head Weld Pins:

1. Certification: ISO9001

2.Material: Low Carbon Steel, material specifications or certification available.
3.Finish: Mild Steel pins are galvanized/coated, washer is galvanized.
4.Annealing: All steel pins are fully annealed unless otherwise specified.

5.Paper Insulating Washers:Available for welding through foil faced insulation.Paper insulating washers

canbe ordered separately or factory installed.
6.Compatibity: All pins are compatible and recommended for use with CD stud welding equipment

Cupped Head weld Pins simplify the permanent installation of "Duct Liner" or other insulation materials

to duct work or to other heating, ventilating or air conditioning sheet metal configurations and housings.

A fabricated part made by weld pin and a staked on retaining washer.Variations of material are available.

This product is usually applied with a capacitor discharge stud welder. Used for securing insulation.

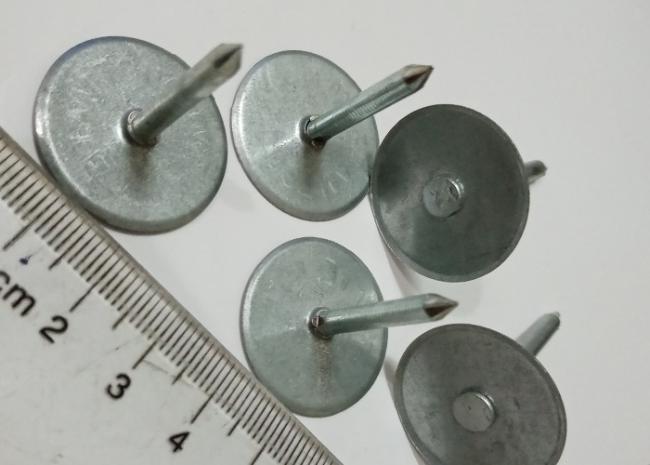

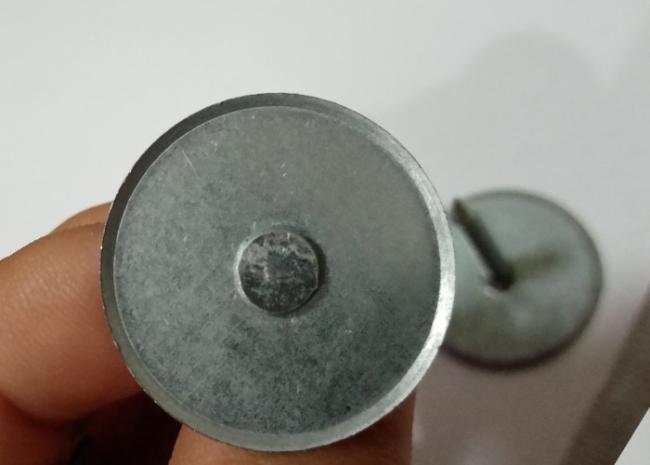

Pic of Insulation Mini Cupped Head Weld Pins:

Specification of Insulation Mini Cupped Head Weld Pins:

Standard of Insulation Mini Cupped Head Weld Pins:

Install of Insulation Mini Cupped Head Weld Pins:

Each PowerPoint Weld Pin is precisely formed to provide optimum electrical resistance and each cap

and shank assembly is securely swaged so that pins ill feed without jamming, even in older welders.

The result is continuous production without the expense of clearing track jams or refastening where

other pins could fail.

Recommended assembly method:

1.Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.
2.Remove the protective release paper taking care not to touch the adhesive.
3.Place the hanger in the required position and press the base against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength of

adherence is achieved after 24 hours

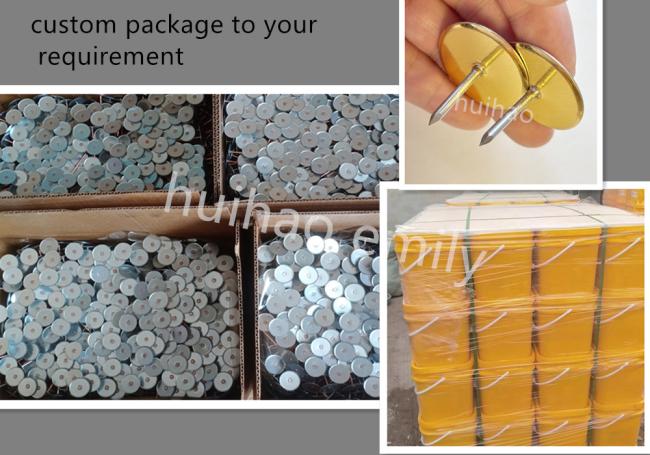

Package of Insulation Mini Cupped Head Weld Pins:

Package : usually the package is 800/1000/1500 /2000/3000/5000 pcs in carton on pallet

800/1000/15000/2000 in a drum on the pallet

Delivery :for big you choose by sea

for small order or agercy order ,you can choose express by DHL,Fedex ,UPS ,ect

we can also supply door to door service by sea ,by air
