12ga Galvanized Steel Capacitor Discharge Cup Head Weld Pin For Duct Liner
12ga Galvanized Steel Capacitor Discharge Cup Head Weld Pin For Duct Liner
Details of Capacitor Discharge Cup Head Weld Pin
1. Certification: ISO9001
2.Material: Low Carbon Steel, material specifications or certification available.
3.Finish: Mild Steel pins are galvanized/coated, washer is galvanized.
4.Annealing: All steel pins are fully annealed unless otherwise specified.
5.Paper Insulating Washers:Available for welding through foil faced insulation.Paper insulating washers
can be ordered separately or factory installed.
6.Compatibity: All pins are compatible and recommended for use with all brands of CD stud welding
equipment
Metal Cupped Head Pins type of Capacitor Discharge (CD) pin is welded through the insulation, allowing
the fabrication to be done in one easy step. The head of the pin is attached to the nail, so there is no need
to add a washer.
Metal Cupped Head Pins Reduced labor time - Neat, finished appearance

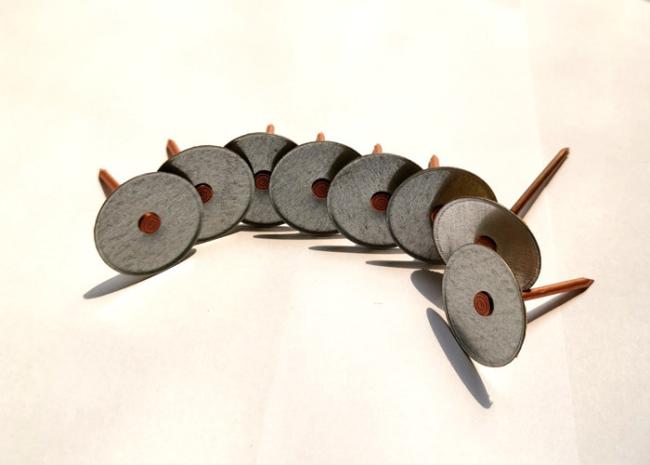

Pic of Capacitor Discharge Cup Head Weld Pin
Specification of Capacitor Discharge Cup Head Weld Pin
|
common size of capacitor diacharge cup head weld pin |
||
| Cupped Head Weld Pin diameter | base size | length |
| 2.7mm | 25mm, 30mm | 15-250mm |
| 3mm | 25mm, 30mm | 15-250mm |
| 3.4mm | 25mm, 30mm | 15-250mm |
| Lacing Anchor Cupped head weld pin to secure insulation inside fabricated blankets | Standard of materials |
| Low Carbon Mild Steel 4.8 (weldable) Stainless Steel A2-50 (weldable) Aluminium Alloy AlMg3 Pure Aluminium Lead Free Brass 4.8 (weldable) |
EN 20898-1 EN 573-3 |
Feature of Capacitor Discharge Cup Head Weld Pin
| Features of capacitor diacharge cup head weld pin | |
| BETTER PLATING | weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Quilting Cup Head Insulation Pins are copper plated. |
| REDUCED DOWN TIME | Consistent point quality reduces frequency of machine adjustments. |
| STRONGER WELDS | Hardened steel point assures positive electrical contact for complete sheet to pin fusion. |
| CORROSION RESISTANCE | Plating exceeds current SMACNA standards for corrosion resistance. |
| TEMPERATURE RANGE | Quilting Cup Head Insulation Pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C. |
| VIBRATIONS | Quilting Cup Head Insulation Pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems. |
Recommended assembly method:
1.Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter.
2.Remove the protective release paper taking care not to touch the adhesive.
3.Place the hanger in the required position and press the base against the surface to be insulated
4.Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength of
adherence is achieved after 24 hours
Package Of Capacitor Discharge Cup Head Weld Pin:
Package : usually the package is 800/1000/1500 /2000/3000/5000 pcs in carton on pallet
800/1000/15000/2000 in a drum on the pallet
Delivery :for big you choose by sea
for small order or agercy order ,you can choose express by DHL,Fedex ,UPS ,ect
we can also supply door to door service by sea ,by air
