90mm Length Stud Welding Pins Ship Deck Aluminum Alloy Flange Copper Coated
90mm Length Ship Deck Aluminum Alloy Flange Weld Pin With Copper Coated
Specification details of Ship Deck Aluminum Alloy Flange Weld Pin
the below size is most popular in market. other sizes can be make too.
| Part No. | flange material | pin material | pin diameter | pin length |
| HH-AS-55 | AL-5054 | steel / stainless steel | 2.7,3,4,5mm | 55mm |
| HH-AS-70 | AL-5054 | steel / stainless steel | 2.7,3,4,5mm | 70mm |
| HH-AS-90 | AL-5054 | steel / stainless steel | 2.7,3,4,5mm | 90mm |
| HH-AS-100 | AL-5054 | steel / stainless steel | 2.7,3,4,5mm | 100mm |
| HH-AS-110 | AL-5054 | steel / stainless steel | 2.7,3,4,5mm | 110mm |
| HH-AS-120 | AL-5054 | steel / stainless steel | 2.7,3,4,5mm | 120mm |
| HH-AS-140 | AL-5054 | steel / stainless steel | 2.7,3,4,5mm | 140mm |
| HH-AS-160 | AL-5054 | steel / stainless steel | 2.7,3,4,5mm | 160mm |
| HH-AS-180 | AL-5054 | steel / stainless steel | 2.7,3,4,5mm | 180mm |
Features of Ship Deck Aluminum Alloy Flange Weld Pin
|
BETTER PLATING
|
aluminum alloy flange weld pin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Climatech weldpin shanks are copper plated.
|
|
REDUCED DOWN TIME
|
Consistent point quality reduces frequency of machine adjustments.
|
|
STRONGER WELDS
|
Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
|
|
CORROSION RESISTANCE
|
Plating exceeds current SMACNA standards for corrosion resistance.
|
|
TEMPERATURE RANGE
|
aluminum alloy flange Weld pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.
|
|
VIBRATIONS
|
aluminum alloy flange Weld pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.
|

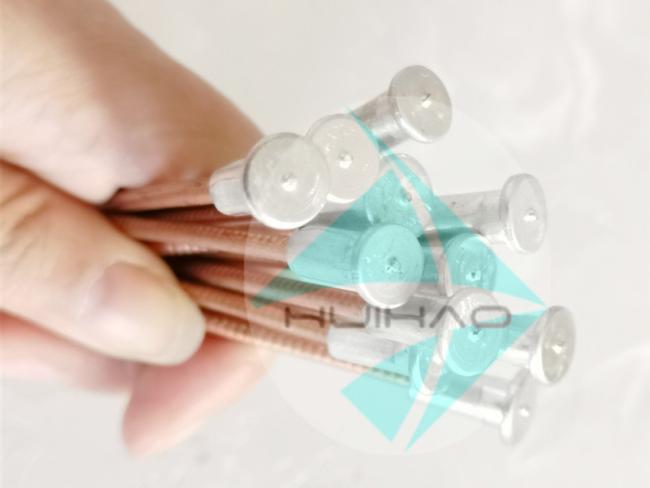

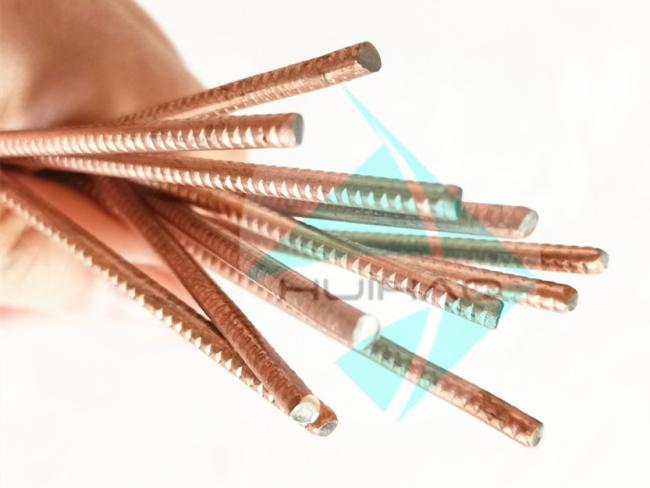

image details of Ship Deck Aluminum Alloy Flange Weld Pin
 |
 |

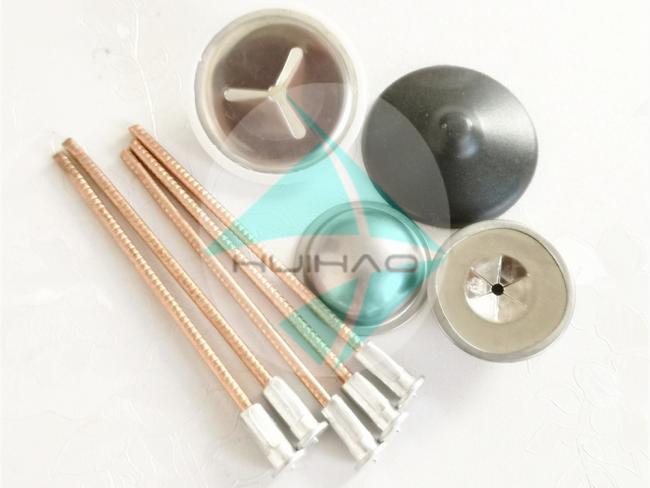

install washer for Ship Deck Aluminum Alloy Flange Weld Pin

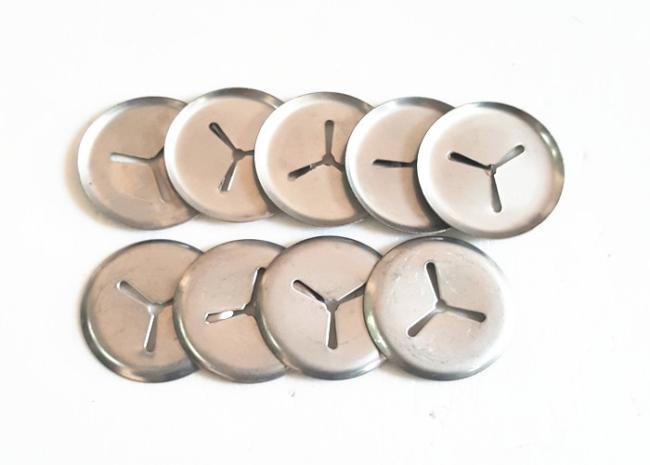

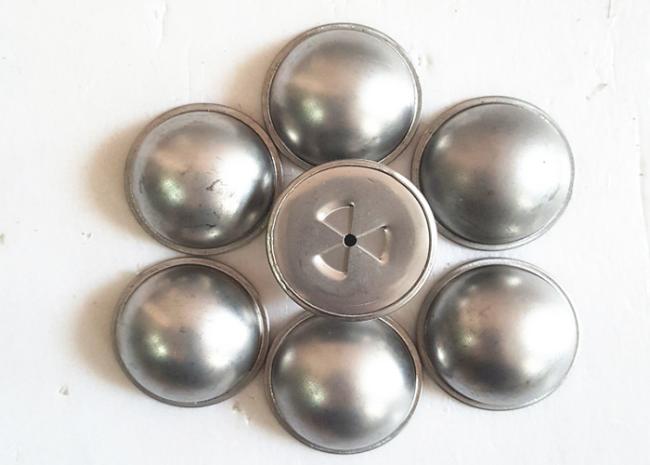

| 38mm speed clips | 40mm plastic cover speed cap | 30mm self locking dome caps |
 |
 |
 |
Company information
package service: Carton, Fumigation-Free Wooden Box, Fumigation-Free Tray, Warning Tape, Color Label, Custom Logo
delivery service:by sea, by air and door to door service
stock service: we have common size of Aluminum flange weld pins with Mechanized packing product in stock.
sample services: supply free sample for Aluminum flange weld pins special size of Mechanized packing , need customer paid the mould cost.
quality service: iso 9001-2008, material test cerfication, factort test report and third party test report from SGS and BV.
We are willing to rush orders and offer you competitive prices for our products and services. You won't regret choosing us as your supplier for Aluminum Base weld pins, and any other supplies you need
