Polyester Staple Plastic Recycling Machine 1500RPM 190KW For Waste Recycle Plant
Price:
Negotiable
MOQ:
1 set
Delivery Time:
10 work days
Brand:
HUIHAOCUSTOM
Product Description
Polyester Staple Fiber Grade PET Bottle Plastic Recycling Machine For Waste Recycle Plant
Waste Plastic PET Bottle Washing Recycling machine:
This plastic recycling machine it will be used to recycle pet bottle, water bottle, Sprite bottle, cola bottle, juice bottle, pet sheet, pet packing container, pet strap,pet film and so on., final will produce to clean PET flakes, so you can make pellet, PET strap, filament yarn, PET sheet, PET film and so on
We also can configure the line according to the raw material and customer requirement. According to the final usage of PET flakes, We supply 3 grade bottle flakes : - Bottle to bottle grade, Food Standard - Yarn/filament grade - conventional grade.
Specification of Polyester Staple Fiber Grade PET Bottle Plastic Recycling Machine
|
Model
|
Capacity
|
Installed Power
|
Steam Use
|
Water Supply
|
Manpower
|
Area Required
|
|
HH-500
|
500 kg/hr
|
190KW
|
Optional
|
4-5 m3/hr
|
4-6 Person
|
60*5*5 m
|
|
HH-1000
|
1000 kg/hr
|
260 KW
|
Optional
|
6-8 m3/hr
|
8-10 Person
|
80*8*5 m
|
|
HH-2000
|
2000 kg/hr
|
400 KW
|
Suggest Use
|
10-15 m3/hr
|
10-12 Person
|
80*8*5 m
|
|
HH-3000
|
3000 kg/hr
|
600 KW
|
80,000 Kcal
|
20-30 m3/hr
|
12-16 Person
|
100*8*10 m
|
|
HH-4000
|
4000 kg/hr
|
800 KW
|
100,000 Kcal
|
30-40 m3/hr
|
15-20 Person
|
135*10*10 m
|
|
HH-5000
|
5000 kg/hr
|
1000 KW
|
120,000 Kcal
|
40-50 m3/hr
|
15-20 Person
|
135*10*10 m
|
Polyester Staple Fiber Grade PET Bottle Plastic Recycling Machine Details

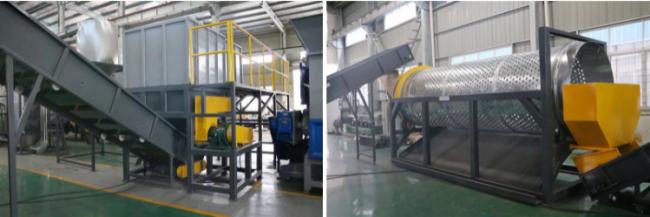

| Bale Opener machine(Optional Choose) | Trommel Machine (Optional Choose) |
Label Remover Machine |
| it use to remove the labels from the bottle and separate label out
Rotary Blade made by GERMANY import alloyed steel making for long time using,
The barrel designed with doors opening on it very easy to opening and maintenance
Bottom design with holes to drain out liquid which contained in the bottles
|
| crusher machine |
| crushing the bottles to PET flakes,water pre-washing the dirty flakes ,cooling the blade
by 0.75kw motor open the chamber,it is easy for worker change the blade
Use D2 blade for higher HRC,long time using (25-30 times grinder than other material),
we also can use DC-53 mateial,but the cost more higher
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use
|

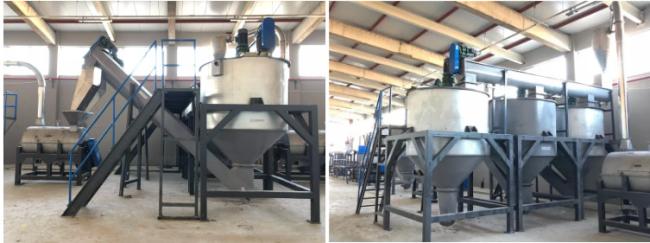

| hot washing tank |
| with hot water washing to remove oil/glue and other dirty from the flakes.
The tank made with insulation layer to save energy.
Feeding caustic soda/detergent to washing Its better Heating by steam
|

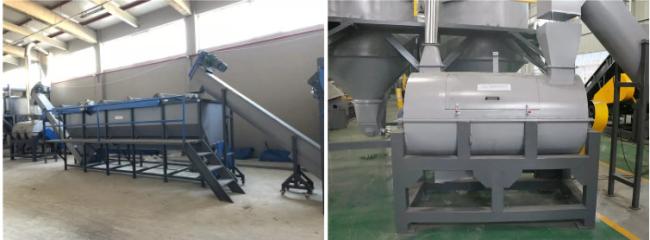

Floating washing tank |
Horizontal dewatering machine |
| Washing the flakes, with the top rollers automatic take out the caps/rings and other impurities,flakes sinking down and take out by screw | Friction washing the material and its running with high speed can remove the dirty, dust, sand out with the dirty water |
|

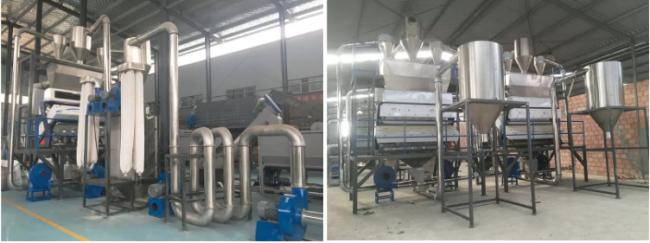

Zig-zag air classifier |
PET flakes color sorter machine |
Features of Polyester Staple Fiber Grade PET Bottle Plastic Recycling Machine
1-Labor saving. The bale opening and feeding system we provide will equally feed the material.
2- You can use the manually sorting system to selecting out different color bottles and non-PET material
3- Metal detector is optional for you which used to take out any kind of metal from the PET bottles
4-Specially designed PET bottle granulator can easily get high output and with water doing wet griding can
reduce wear of blades.
5- High speed dewatering machine and drying system will insure the final PET flakes moisture <1%
6-The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content
